| Electrical | |
| Current Rating | 3A rating per contact |
| Material | |
| Contact Plating | B = .000010" Gold with .000100"pure tin matte terminations C = .000030" Gold with .000100"pure tin matte terminations G = .000010" Gold with .000005"gold plated terminations Y = .000030" Gold with .000005"gold plated terminations S = .000010" Gold with .000010"overall gold plating M = .000030" Gold with .000010"overall gold plating E = .000100"pure tin matte with .000100"pure tin matte terminations |
| Contacts | E = Phosphor Bronze |
| Insulators | E = PBT |
| Environmental | |
| Flammability | UL94V-O |
| Mechanical | |
| Board Size | 1.57mm [.062"] |

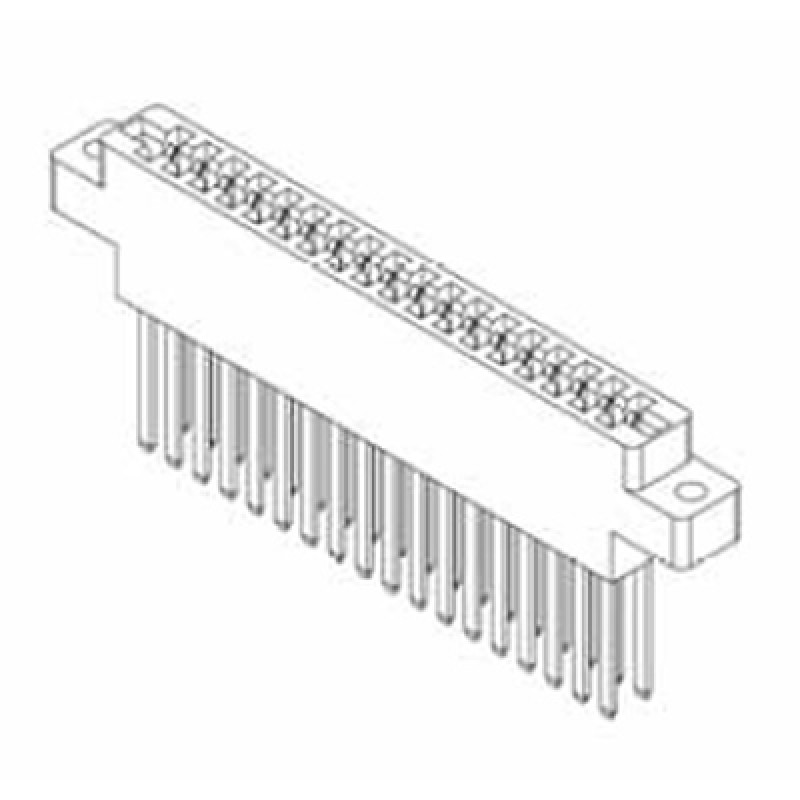

Card Edge Header 3.96mm [.156"] Contact Centres, 18.29mm [.720"] Insulator Height
- Cambridge Electronic Industries Ltd

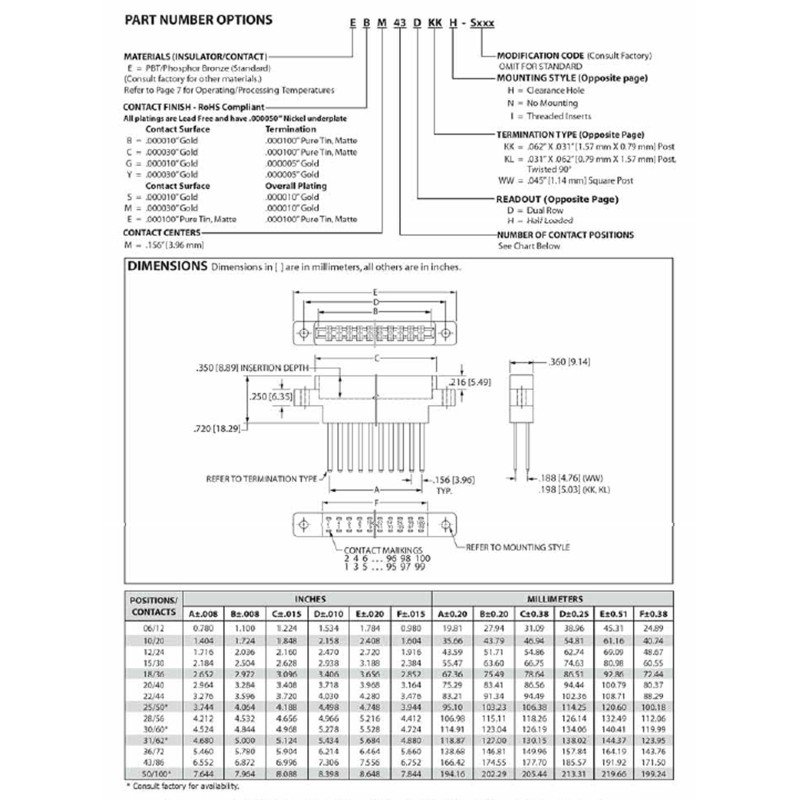

- Product Code: EBM43DKKH

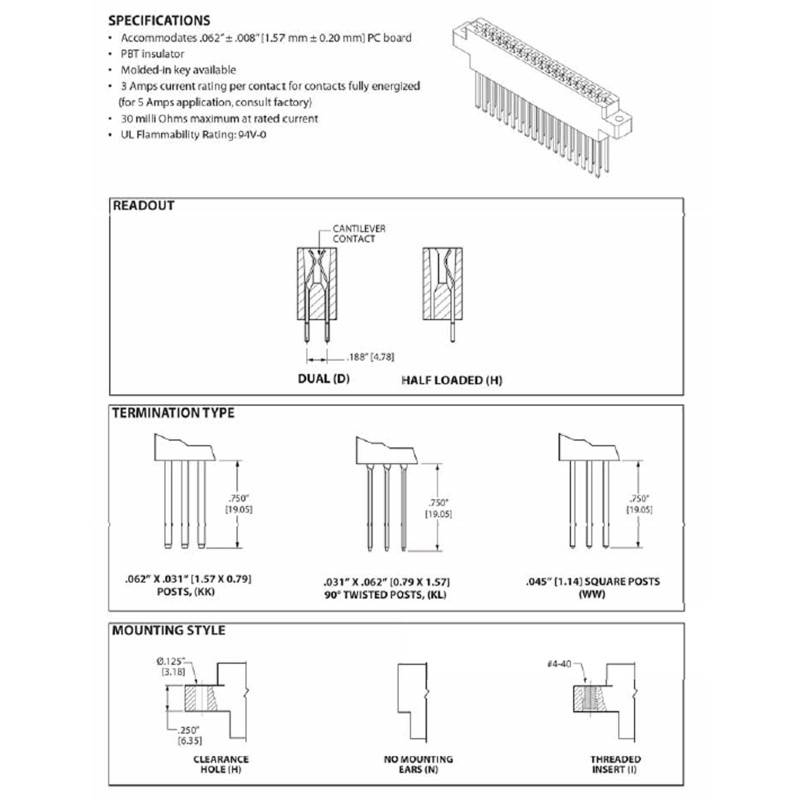

The EBM43DKKH is a female card edge header that can accommodate a 1.57mm thick PC board. The connector is available with a variety of options including insulator and contact materials and contact finishes.
