OJL 135 Distribution Blocks

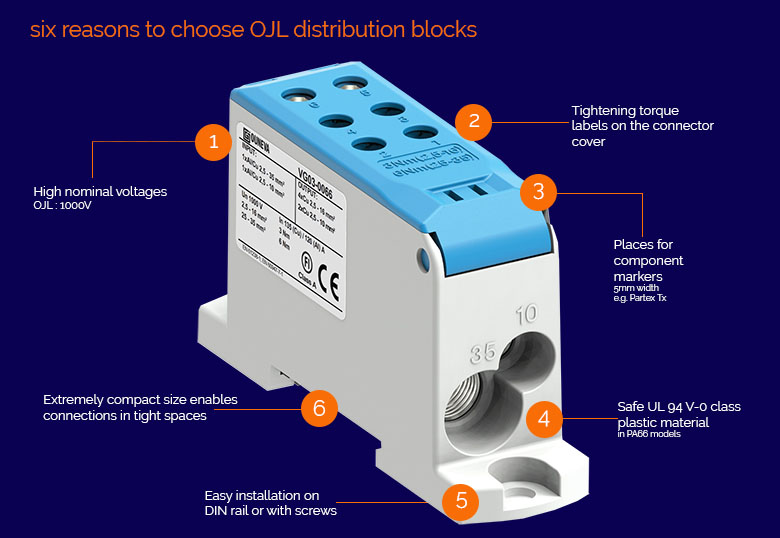

General: OJL distribution blocks offer the highest quality product with additional features that increase the safety and ease of installation of the connectors and enable versatile end usage applications. Pre-greased contact spaces and the connection completed with hex screws guarantee easy and quick installation. The compact size of the connectors ensures efficient use of space even in tighter installation spaces.

Use: OJL distribution blocks are used for branching connections in electrical devices. OJL distribution blocks can be used with aluminium and copper cables. Installation can be done with screws or onto a DIN-rail.

The single pole OJL 135 is used for branching connections in electrical devices. The connector can be series connected. Input wirings either 1xAL/Cu 2.5-35mm² or 1xAl/Cu 2.5-10mm². Output wirings offered are 4xCu(2.5-16mm²) and 2xCu (2.5-10mm²). The connectors can be DIN rail or screw mounted.

Materials: The distribution blocks' bodies are made of tin-plated aluminium, and the insulating cover is made of UL 94 V-0 polyamide.

Standards: EN 60947-1-1:2009; EN 61238-1:2003

OJL 135 Distribution Blocks

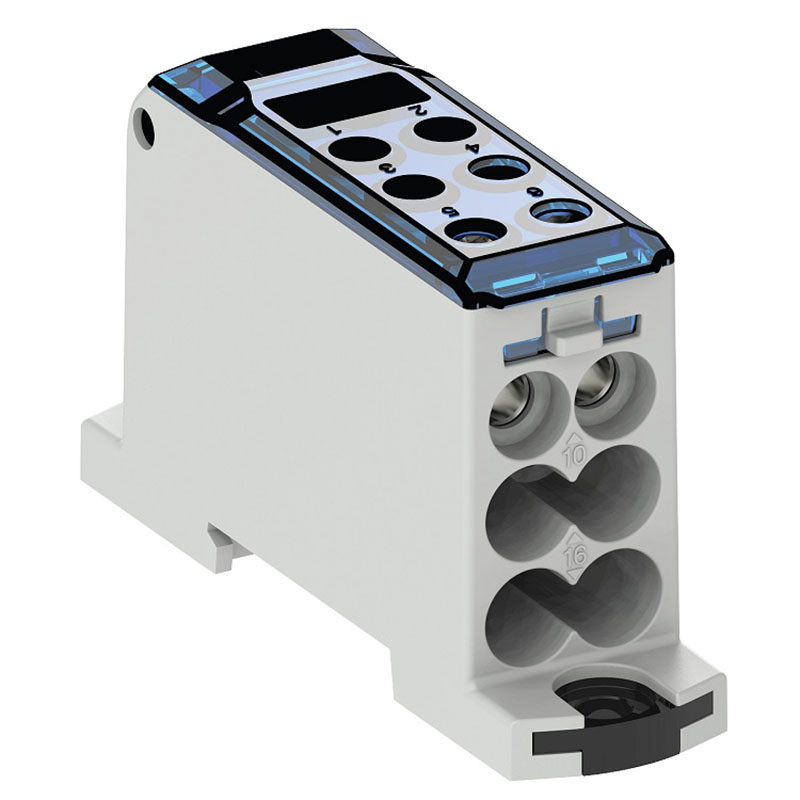

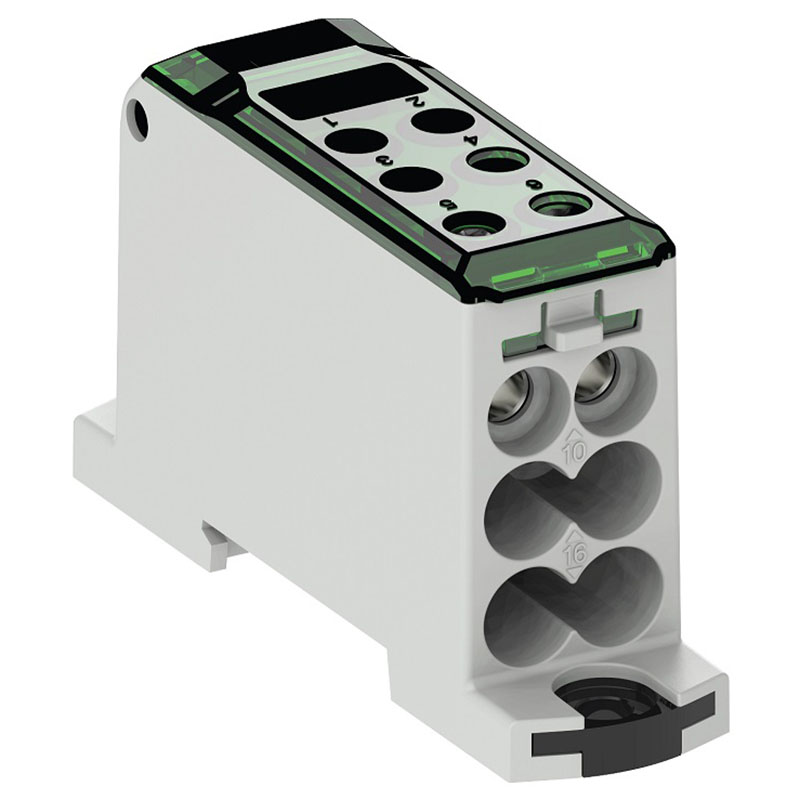

OJL 135 Distribution Blocks for 1 Conductor 2.5-35mm² (Transparent Cover)


C-VG03-0052	C-VG03-0053	C-VG03-0054

Conductor Size (mm²)	Voltage Rating (V)	Current Rating (A)	Tightening Torque (Nm)
In 1x(Al/Cu) 2,5-35 mm²/ 1x (Al/Cu) 2,5-10 mm² Out: 4x (Cu) 2,5-16mm²/ 2x (Cu) 2,5-10 mm²	1000 V	135 (Cu) / 120 (Al)	3 Nm (2.5-16mm²) 6 Nm (25-35 mm²)

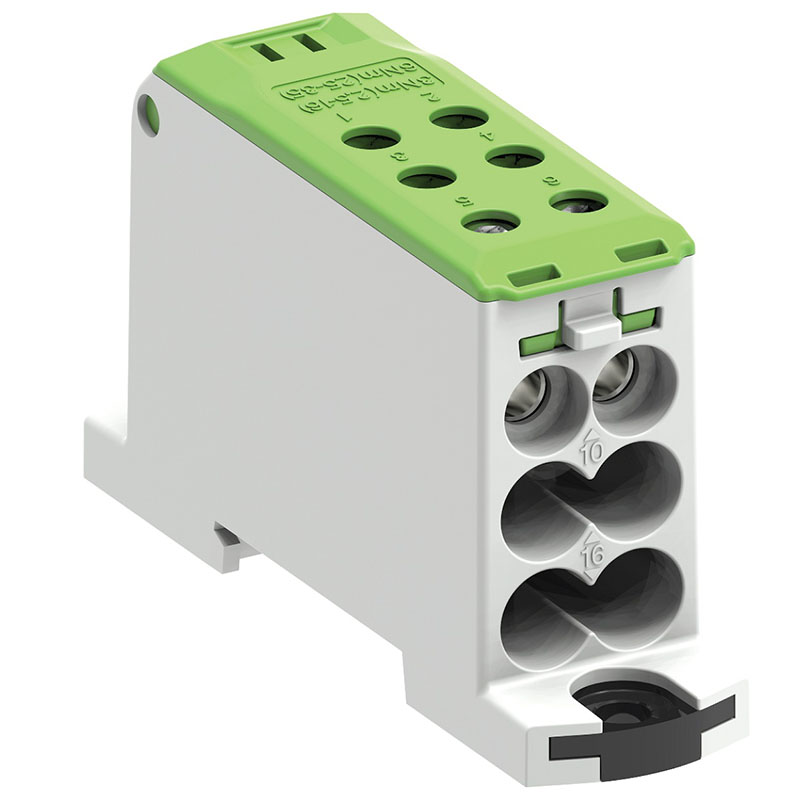

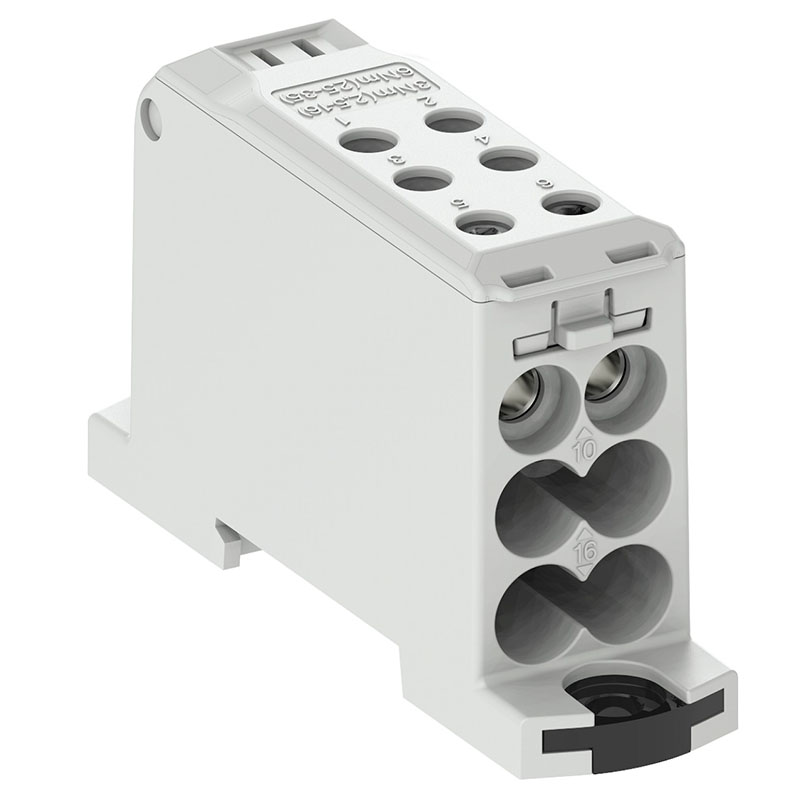

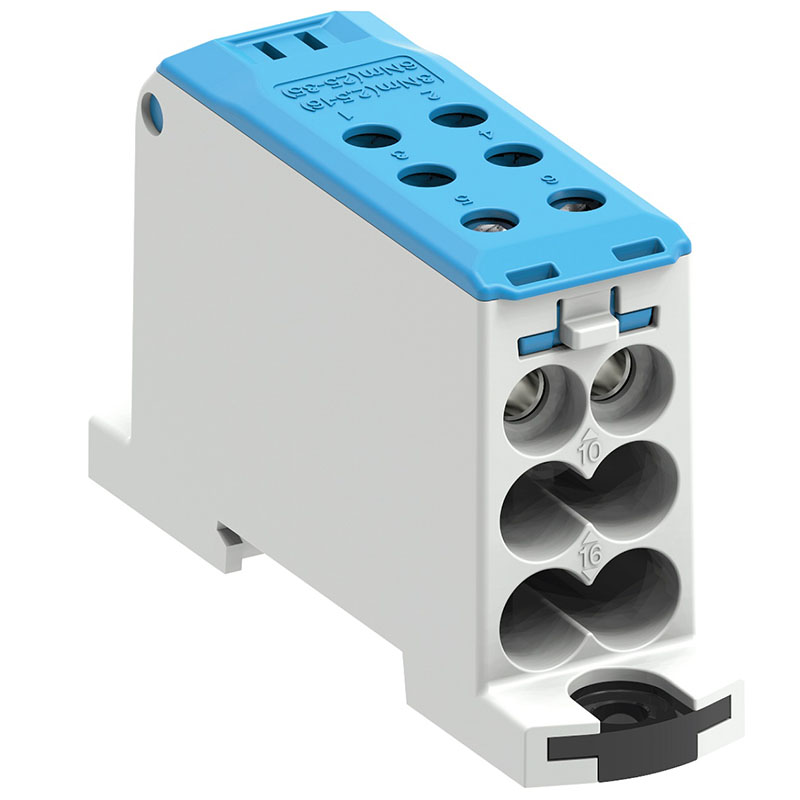

OJL 135 Distribution Blocks for 1 Conductor 2.5-35mm² (Solid Cover)


C-VG03-0065	C-VG03-0066	C-VG03-0067

Conductor Size (mm²)	Voltage Rating (V)	Current Rating (A)	Tightening Torque (Nm)
In 1x(Al/Cu) 2,5-35 mm²/ 1x (Al/Cu) 2,5-10 mm² Out: 4x (Cu) 2,5-16mm²/ 2x (Cu) 2,5-10 mm²	1000 V	135 (Cu) / 120 (Al)	3 Nm (2.5-16mm²) 6 Nm (25-35 mm²)
