Coaxial Cable Information

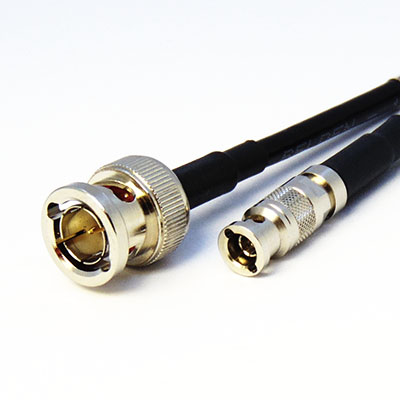

In the table below you can see some information on cables that we use in our cable assemblies and have designed cable connectors for.

We are always happy to receive enquiries for coax cable assemblies and to discuss your requirements.

If you click on the cable type below you will be able to see the information about the cable as well as some suggestions for cable connectors to go with these.

This information is given as a guideline, as different manufacturers may use different materials.

Cable TypeCable GroupOperating FrequencyImpedanceJacket Material  / SizeDielectric Material / SizeCentre Conductor Material / SizeConductor TypeShielding Outer Conductor
Belden 1505AABDC-6GHz75ΩPVC / 5.92mmFHDPE / 3.68mmCopper / 0.81mmSolidTinned Copper Braid & Foil
Belden 1505FBCDC-6GHz75ΩPVC / 6.15mmFHDPE / 3.68mmCompacted Copper / 0.79mmStranded/FlexibleTinned Copper Braid
Belden 1694AAS/BHDC-6GHz75ΩPVC / 6.96mmFHDPE / 4.57mmCopper / 1.02mmSolidTinned Copper Braid & Foil
Belden 1694FAS/BHDC-6GHz75ΩPVC / 7.01mmFHDPE / 4.57mmCopper / 1.02mmStranded/FlexibleTinned Copper Braid & Foil
Belden 1794ABDDC-6GHz75ΩPVC / 8.13mmFHDPE / 5.72mmCopper / 1.29mmSolidTinned Copper Braid & Foil
Belden 1855ABA/BGDC-6GHz75ΩPVC / 4.04mmFHDPE / 2.59mmCopper / 0.58mmSolidTinned Copper Braid & Foil
Belden 1855ENFBGDC-6GHz75ΩLSZH / 4.45mmFoam PE / 2.9mmCopper / 0.65mmStrandedTinned Copper Braid & Foil
Belden 1855ENHBGDC-6GHz75ΩLSZH / 4.45mmFoam PE / 2.9mmCopper / 0.65mmSolidTinned Copper Braid & Foil
Belden 4505RABDC-12GHz75ΩPVC / 5.92mmFHDPE / 3.68mmSilver Plated Copper / 0.81mmSolidTinned Copper Braid & Foil
Belden 4694RAS/BHDC-12GHz75ΩPVC / 6.96mmFHDPE / 4.57mmSilver Plated Copper / 1.02mmSolidTinned Copper Braid & Foil
Belden 4855RBA/BGDC-12GHz75ΩPVC / 4.09mmFHDPE / 2.59mmSilver Plated Copper / 0.58mmSolidTinned Copper Braid & Foil
Canford
SDV-F-R		AS/BHDC-12GHz75ΩPVC / 6.8mmFHDPE / 4.8mmCopper / 19/0.2mmStranded/FlexibleTinned Copper Braid & Foil
Canford
SVD-XF		AS/BHDC-12GHz75ΩPVC / 7.2mmFHDPE / 4.8mmCopper / 19/0.2mmStranded/FlexibleDouble Tinned Copper Braid
KAP50SDGDC-1GHz50ΩKapton / 1.6mmKapton / 1.0mmSilver Plated Copper / 0.24mmStrandedSilver Plated Copper Braid
Mini RG59BADC-1GHz75ΩPVC / 3.81mmFoam PE / 2.16mmCopper / 0.46mmSolidCopper Braid
RG142B/UAADC-12GHz50ΩFEP / 4.95PTFE / 2.95mmSilver Plated Copper / 0.94mmSolidSilver Plated Copper Braid
RG174/UADDC-1GHz50ΩPVC / 2.8mmLow Density PE / 1.50mmCopper Clad Steel / 0.48mmStrandedTinned Copper Braid
RG178B/UANDC-3GHz50ΩFEP / 1.8mmPTFE / 0.83mmSilver Plated Copper / 0.31mmStrandedSilver Plated Copper Braid
RG179AF/DEDC-3GHz75ΩFEP / 2.5mmPTFE / 1.60mmSilver Plated Copper / 0.3mmStrandedSilver Plated Copper Braid

RG179B/U

AFDC-3GHz75ΩFEP / 2.54mmPTFE / 1.55mmSilver Plated Copper / 0.31mmStrandedSilver Plated Copper Braid
RG180B/UBADC-3GHz95ΩFEP / 3.58mmPTFE / 2.59mmCopper Clad Steel / 0.3mmStrandedSilver Plated Copper Braid
RG187A/UAFDC-3GHz75ΩPTFE / 2.65mmPTFE / 1.55mmSilver Plated Copper / 0.31mmStrandedSilver Plated Copper Braid
RG188A/UADDC-3GHz50ΩPTFE / 2.6mmPTFE / 1.55mmCopper Clad Steel, Silver / 0.54mmStrandedSilver Plated Copper Braid

RG213/U

AKDC-1GHz50ΩPVC / 10.28mmPE / 7.24mmCopper / 2.26mmStrandedCopper Braid
RG316/UADDC-3GHz50ΩFEP / 2.54mmPTFE / 1.52mmSilver Plated Copper / 0.54mmStrandedSilver Plated Copper Braid
RG58/UAEDC-6GHz50ΩPVC / 4.95mmFoam PE / 2.95mmCopper / 1.02mmSolidTinned Copper & Foil
RG58C/UAADC-1GHz50ΩPVC / 4.95mmPE / 2.95mTin Plated Copper / 0.9mmStrandedTin Plated Copper
RG59ABDC-1GHz75ΩPVC / 6.15mmSPE / 3.70mmCopper Clad Steel / 0.64mmSolidCopper Braid

RG59B/U

ABDC-1GHz75ΩPVC / 6.1mmPE / 3.71mmCopper / 0.58mmSolidCopper Braid
RG6AS/BHDC-1GHz75ΩPVC / 8.43mmPE / 4.7mmCopper Clad Steel / 0.74mmSolidSilver Plated Copper Braid
DRAKA ULTRA HD PRO 50 UHD DKDC-12GHz75ΩPVC / 4.5mmFoam PE / 2.9mmSilver Plated Copper / 0.7mmSolidTinned Copper & Foil

UHD 0.6/2.6

BGDC-12GHz75ΩFR-PVC / 4.05mmFPE / 2.59mmSilver Plated Copper / 0.58mmSolidTinned Copper Braid & Foil
URM 43AADC-1GHz50ΩPVC / 5.00mmPE / 2.95mmCopper / 0.9mmSolidCopper Braid
URM76AADC-1GHz50ΩPVC / 5.0mmPE / 2.95mmTinned Copper / 0.96mmStrandedCopper Braid

URM 95

ADDC-1GHz50ΩPVC / 2.79mmPE / 1.52mmSilver Plated Copper SolidCopper Braid

Key to acronyms:

PVC – Polyvinyl chloride

FHDPE – Gas injected Foam High-Density Polyethylene

LSZH – Low Smoke Zero Halogen

PE – Polyethylene

FEP – Fluorinated Ethylene Propylene

PTFE – Polytetrafluoroethylene
