OJL 200 Distribution Blocks

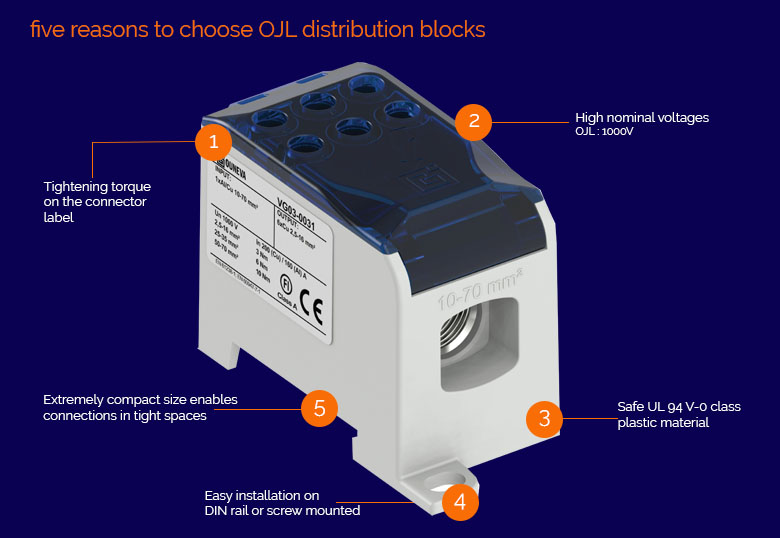

General: OJL distribution blocks offer the highest quality product with additional features that increase the safety and ease of installation of the connectors and enable versatile end usage applications. Pre-greased contact spaces and the connection completed with hex screws guarantee easy and quick installation. The compact size of the connectors ensures efficient use of space even in tighter installation spaces.

Use: OJL distribution blocks are used for branching connections in electrical devices. OJL distribution blocks can be used with aluminium and copper cables. Installation can be done with screws or onto a DIN-rail.

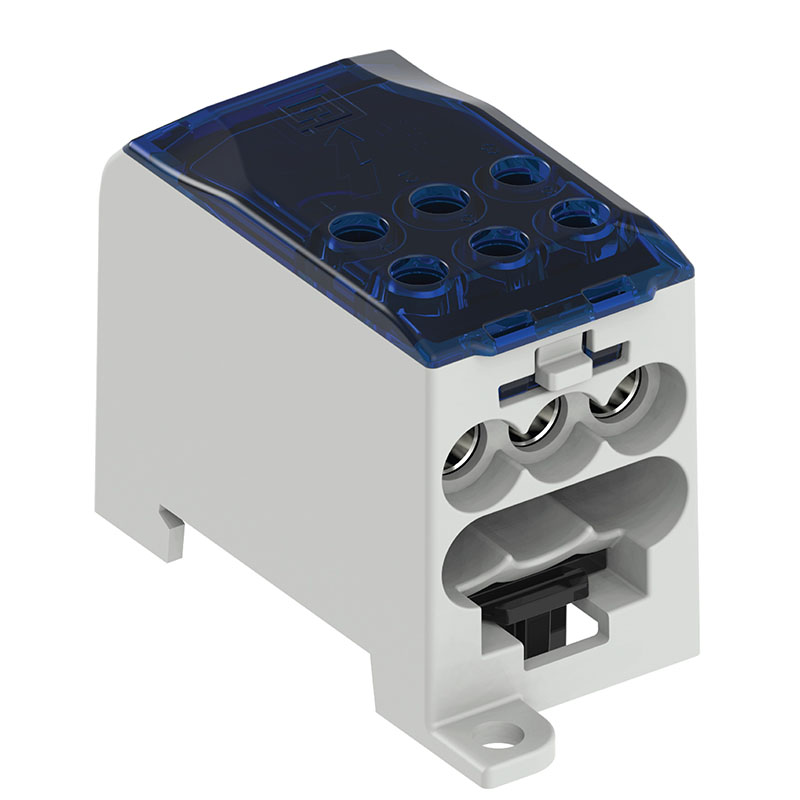

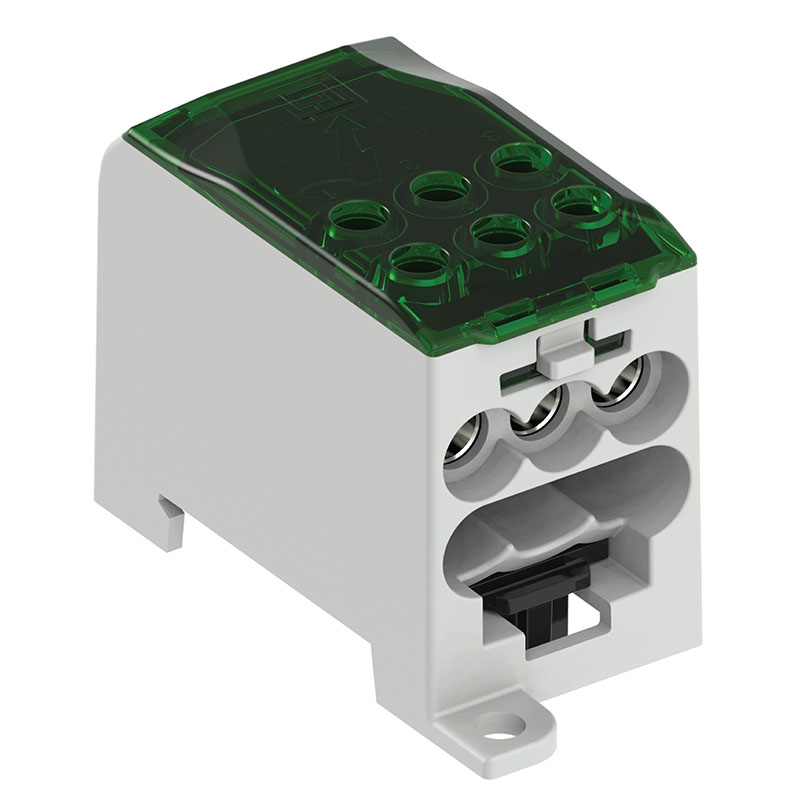

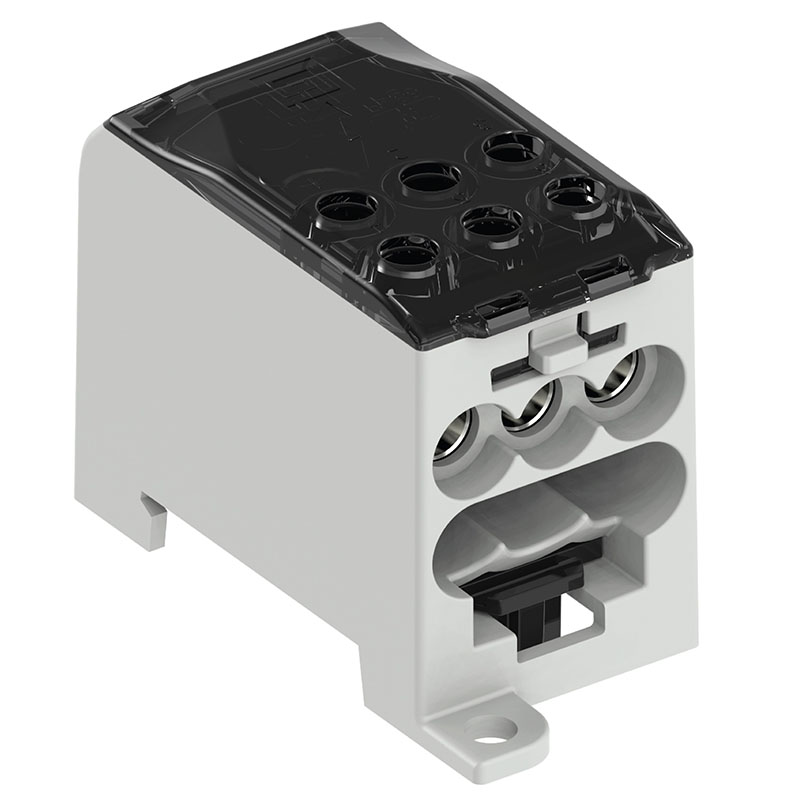

The single pole distribution block OJL 200 for branching connections, distributes the current through 6 output cables. The input wirings are 1xAL/Cu (10-70mm²) and output wirings of 6xCu (2.5-16mm²). The connector can be DIN rail or screw mounted.

Materials: The distribution blocks' bodies are made of tin-plated aluminium, and the insulating cover is made of UL 94 V-0 polyamide.

Standards: EN 60947-1-1:2009; EN 61238-1:2003
