OJL 400 Distribution Blocks

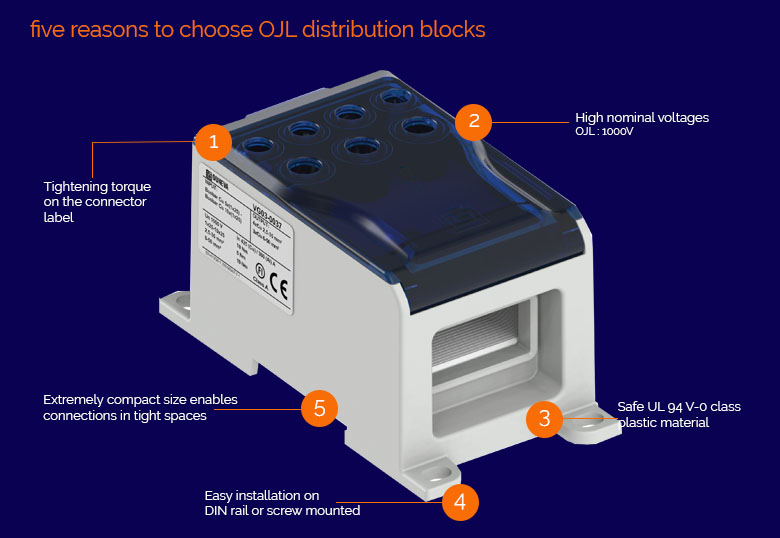

General: OJL distribution blocks offer the highest quality product with additional features that increase the safety and ease of installation of the connectors and enable versatile end usage applications. Pre-greased contact spaces and the connection completed with hex screws guarantee easy and quick installation. The compact size of the connectors ensures efficient use of space even in tighter installation spaces.

Use: OJL distribution blocks are used for branching connections in electrical devices. OJL distribution blocks can be used with aluminium and copper cables. Installation can be done with screws or onto a DIN-rail.

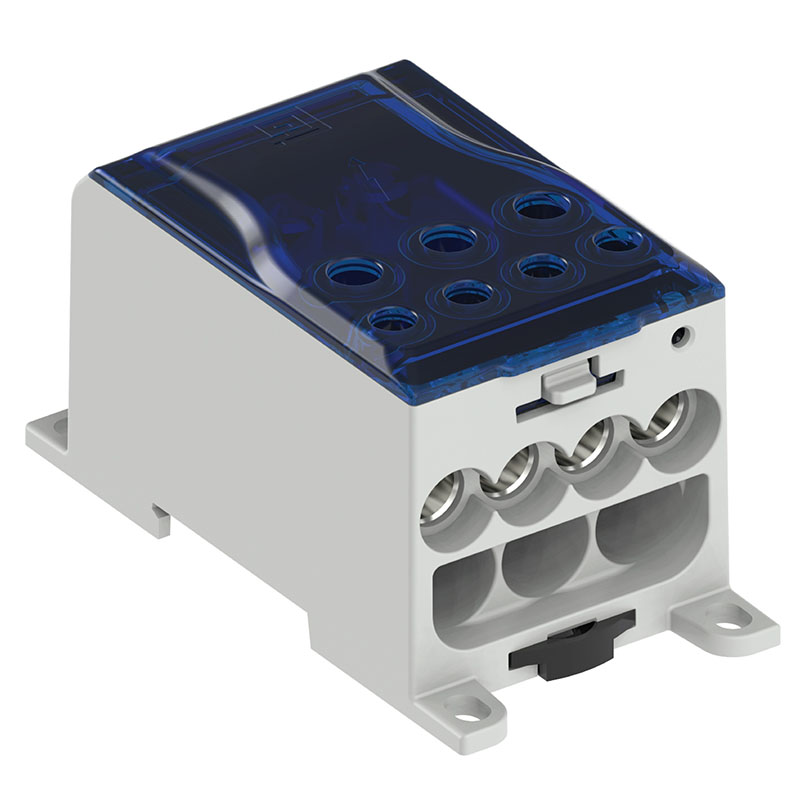

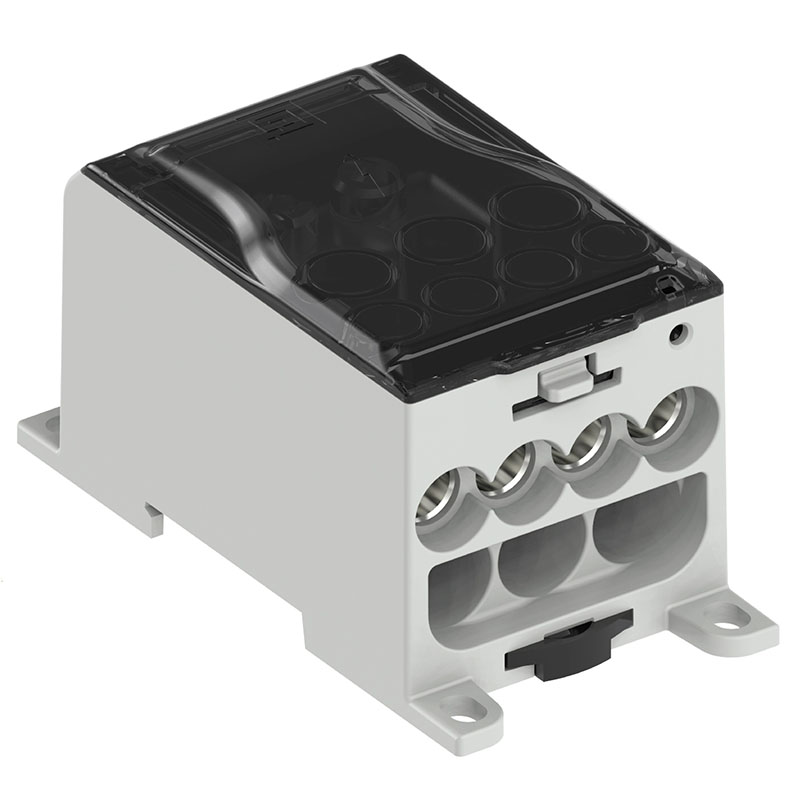

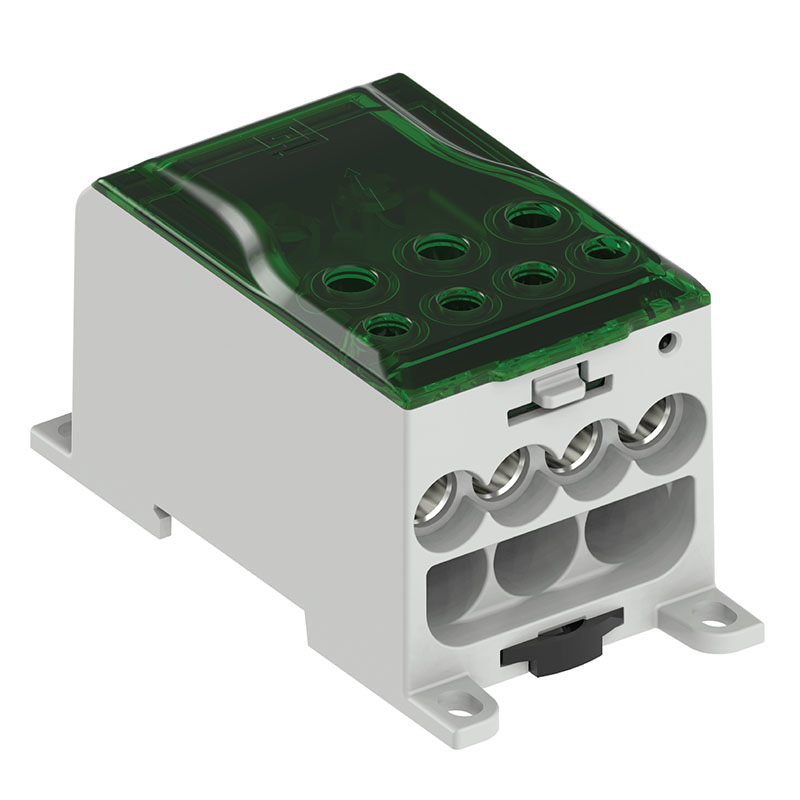

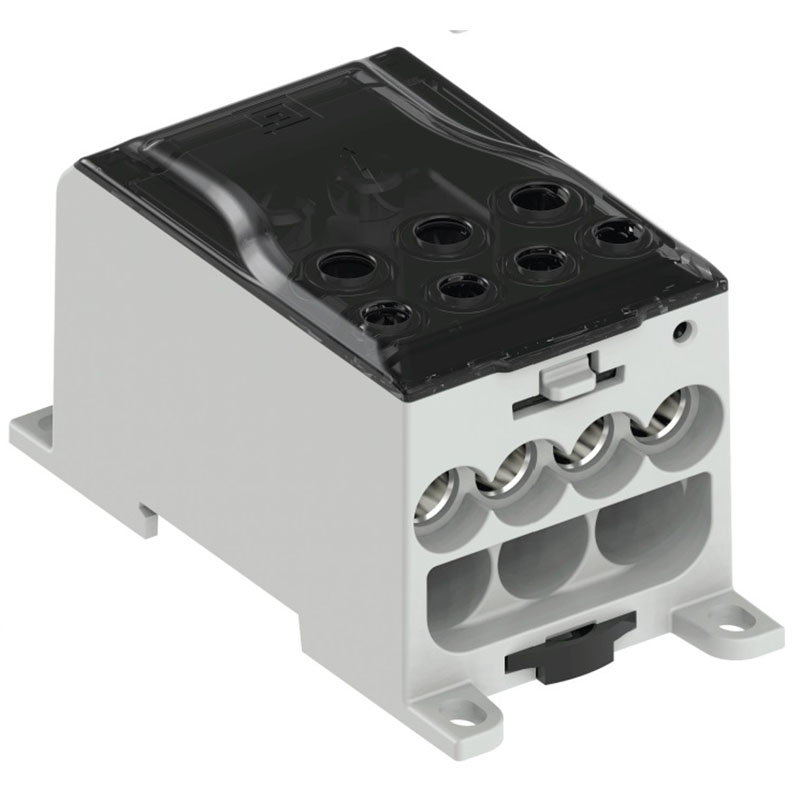

The OJL 400 FBB and FBB S distribution blocks represent an option for using flexible busbar as an input. The OJL 400 FBB S model also includes an option for cover sealing. The single pole dsitribution block OJL 400 FBB for branching connections distributes the current through 7 output cables. The input basbar can be Cu 10x(1x24) with the output wirings being 3x Cu (6-50mm²) and 4x Cu (2.5-35mm²). The connectors can be DIN rail or screw mounted.

Materials: The distribution blocks' bodies are made of tin-plated aluminium, and the insulating cover is made of UL 94 V-0 polyamide.

Standards: EN 60947-1-1:2009; EN 61238-1:2003
