OJL 80 Distribution Blocks

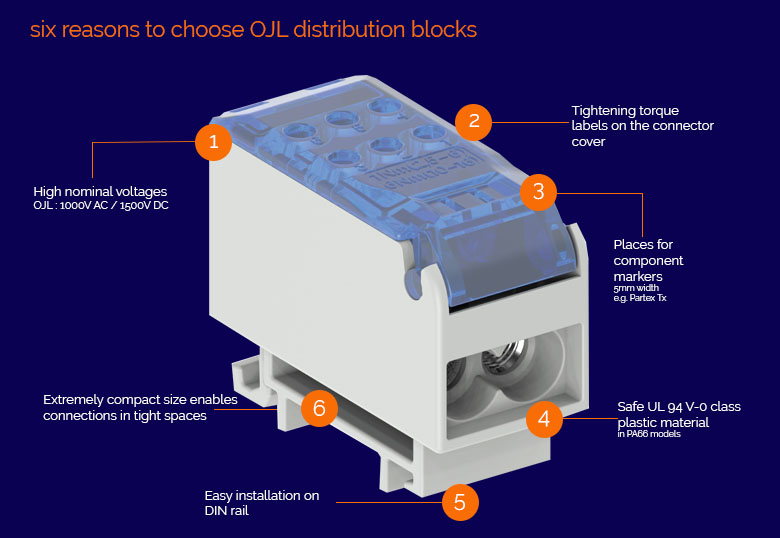

General: OJL distribution blocks offer the highest quality product with additional features that increase the safety and ease of installation of the connectors and enable versatile end usage applications. Pre-greased contact spaces and the connection completed with hex screws guarantee easy and quick installation. The compact size of the connectors ensures efficient use of space even in tighter installation spaces.

Use: OJL distribution blocks are used for branching connections in electrical devices. OJL distribution blocks can be used with aluminium and copper cables. Installation can be done with screws or onto a DIN-rail.

The single pole OJL 80 is used for branching connections in electrical devices and it is approved to be used with 1000V AC and 1500V DC voltages. The connector can be series connected. Input is with 2xAl/Cu 2.5-16mm² cables. The connectors has six cable outputs: 6xCu 2.5-16mm² and should be mounted on a DIN rail.

Materials: The distribution blocks' bodies are made of tin-plated aluminium, and the insulating cover is made of UL 94 V-0 polyamide.

Standards: EN 60947-1-1:2009; EN 61238-1:2003

OJL 80 Distribution Blocks

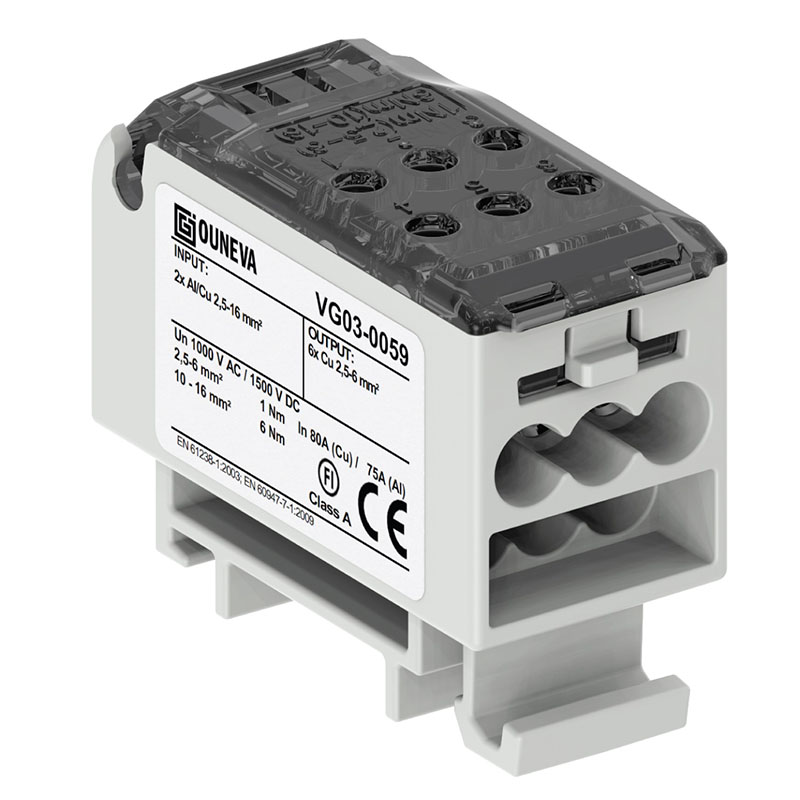

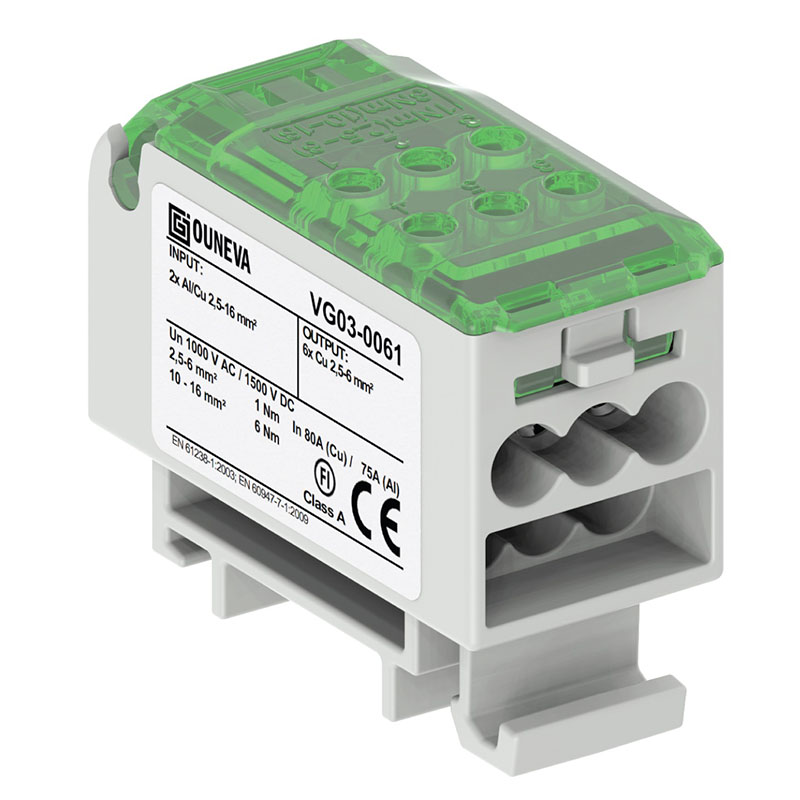

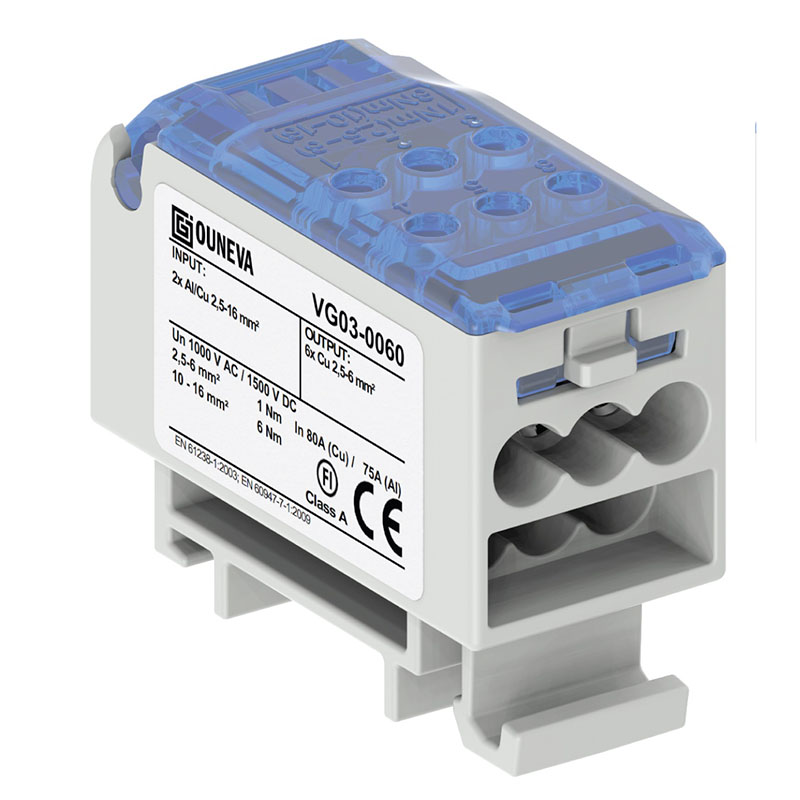

OJL 80 Distribution Blocks for 2 Conductors 2.5-16mm² (Transparent Cover)


C-VG03-0059	C-VG03-0060	C-VG03-0061

Conductor Size (mm²)	Voltage Rating (V)	Current Rating (A)	Tightening Torque (Nm)
In 2x(Al/Cu) 2,5-16 mm² Out: 6x (Cu) 2,5-6mm²	1000 (AC) / 1500 V (DC)	80 (Cu) / 75 (Al)	1 Nm (2.5-6mm²) 6 Nm (10-16 mm²)

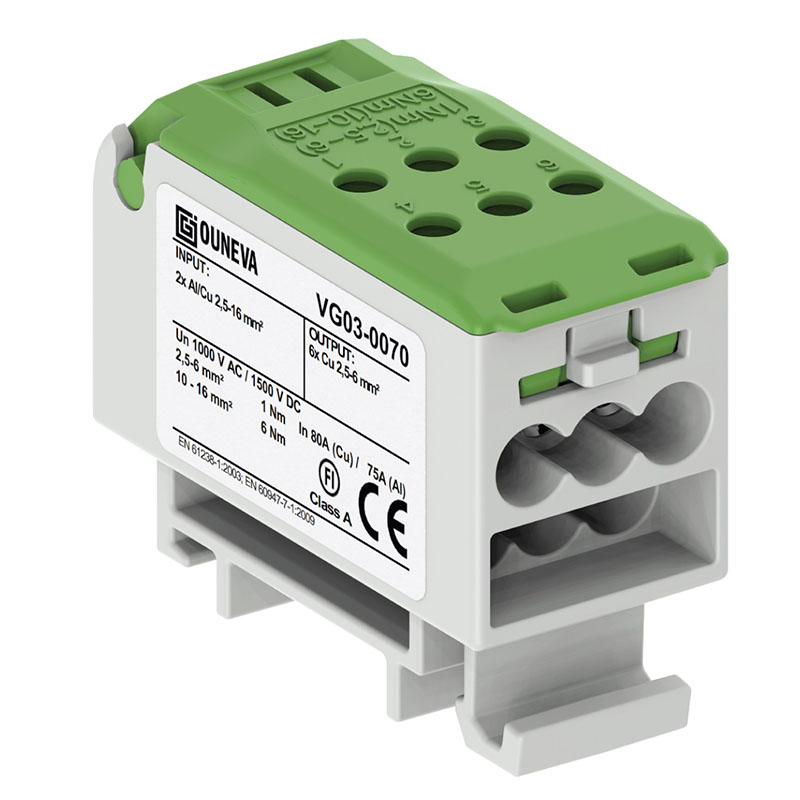

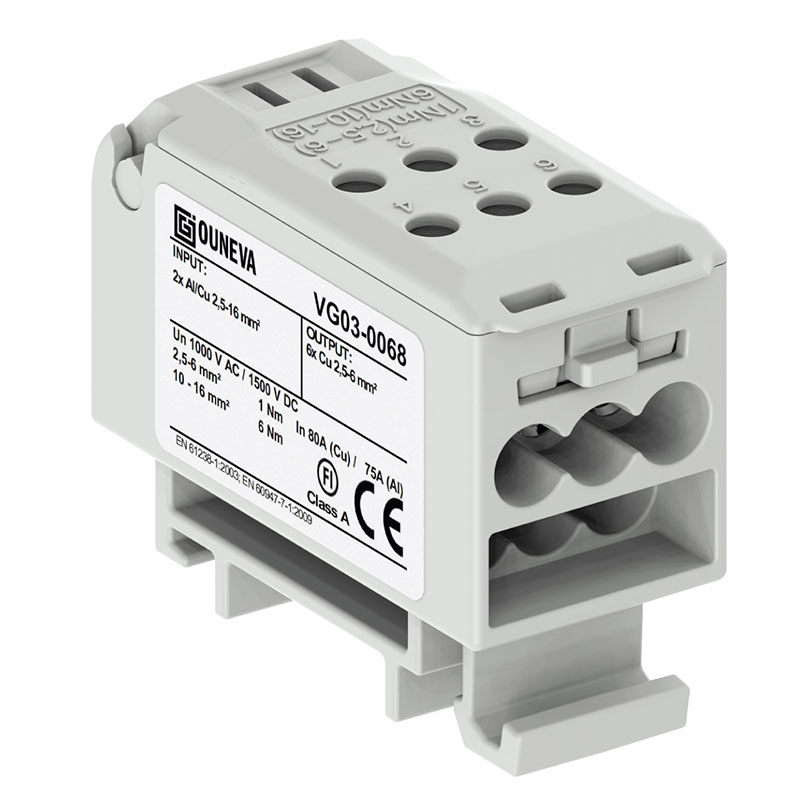

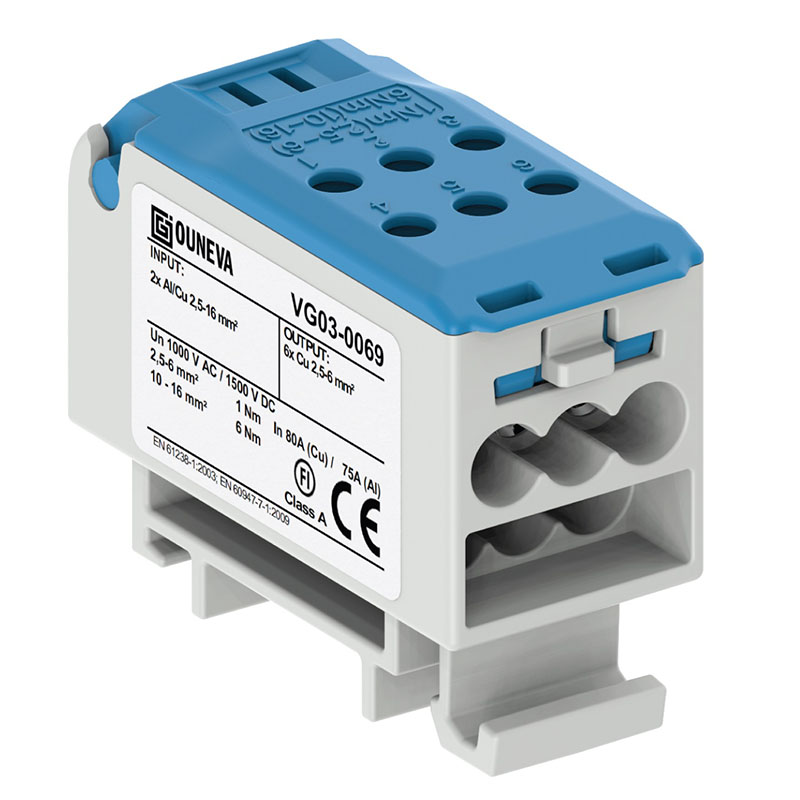

OJL 80 Distribution Blocks for 2 Conductors 2.5-16mm² (Solid Cover)


C-VG03-0068	C-VG03-0069	C-VG03-0070

Conductor Size (mm²)	Voltage Rating (V)	Current Rating (A)	Tightening Torque (Nm)
In 2x(Al/Cu) 2,5-16 mm² Out: 6x (Cu) 2,5-6mm²	1000 (AC) / 1500 V (DC)	80 (Cu) / 75 (Al)	1 Nm (2.5-6mm²) 6 Nm (10-16 mm²)
