CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)
CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)  CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)  CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)  CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)  CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)  CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)

Specification
Coding A
Contact 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Shielded No
Electrical
Withstanding Voltage 500V AC/Minute
Current Rating 4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins)
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Contacts Brass Gold Plated
Insulators UL94V-0 Black
Connector Body Zinc Alloy Nickel Plated
Seal Silicone
Nut P9 or M16 Brass Nickel Plated
Environmental
Operating Temperature -40 to 100oC
Waterproof Rating IP67
General Information
Mounting Type PCB

CC12-XXP-FA07-PBX - M12 Front Fastening Die Cast Plug (A Code)

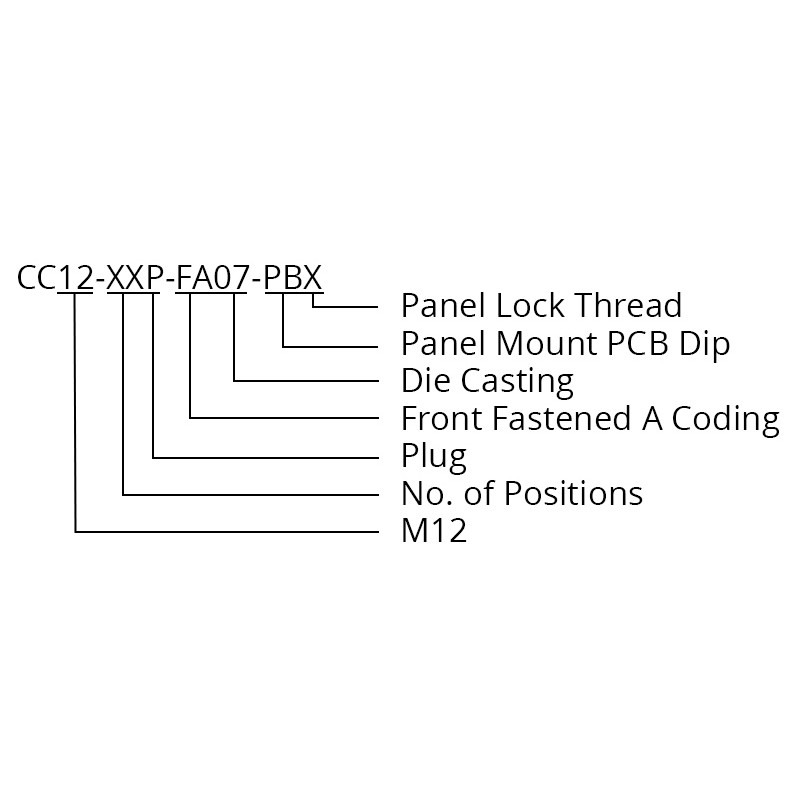

  • Product Code: CC12-XXP-FA07-PBX

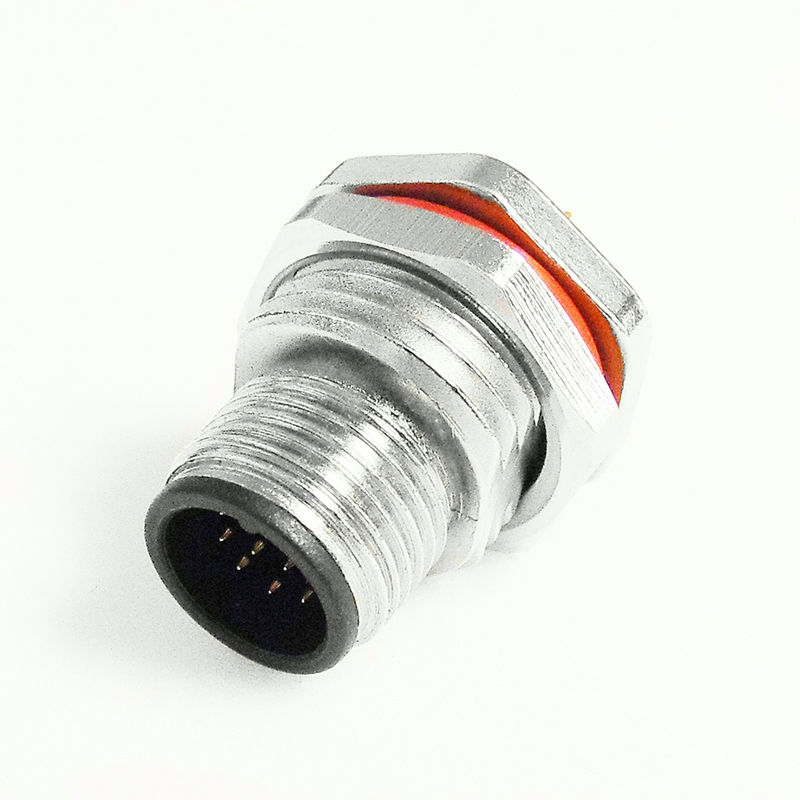

The CC12-XXP-FA07-PBX is an M12 circular plug connector which is available with 2 to 12 pins. The connector is an A coding and is supplied with either a PG9 or M16 lock thread nut. The connector features straight pins to the rear for mounting directly to a PCB. With an IP67 waterproof rating, these small circular connectors can be used for sensors and power connections as well as in PROFINET, field bus, CAN bus and DeviceNet applications.

Features

  • Straight pins to mount directly onto a PCB
  • Available in D coding
  • 2 to 5 Pins
