Specification

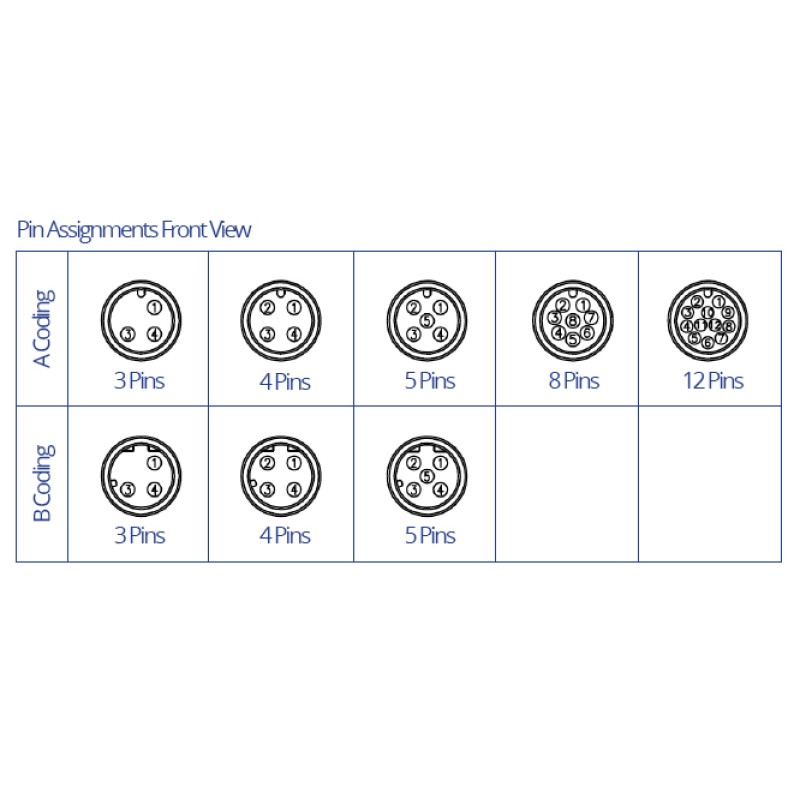

Coding A, D
Contact 3, 4, 5, 8, 12
Shielded No
Electrical
Withstanding Voltage 500V AC/Minute
Current Rating 4A AC/DC (3 to 5 Pins), 2A AC/DC (8 Pins), 1.5A AC/DC (12 Pins)
Voltage Rating 250V AC/DC (3 and 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (8 and 12 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Clamp Ring PC Grey
Lock Brass Nickel Plated
Screw Nut Brass Nickel Plated
Sealing Nut Brass Nickel Plated
Contacts Brass Gold Plated over Nickel
O Ring Silicone
Insulators Nylon + Glass Fibre
Seal EDPM Black
Environmental
Operating Temperature -25 to 85oC
Waterproof Rating IP67
General Information
Mounting Type Cable

CC12-XXP-X04-AS - M12 Cable Mounted Plug (A and D Code)

  • Product Code: CC12-XXP-X04-AS


The CC12-XXP-X04-AS is a cable-mounted M12 plug connector. It is available in A and D Coding and has a solder bucket termination style for connection onto a cable of between 6 and 8mm in diameter. The connector can be purchased as a loose connector or as part of a bespoke cable assembly. The connector is IP67 rated, when in the locked position, so provides security against the ingress of water or dust into your equipment.

Features

  • Cable mounting for cable between 6 and 8mm in diameter
  • Available in A and D coding
  • 3 to 12 Pins
  • Offering speeds up to 10Gbps
