Specification
Coding D
Contact 2, 3, 4, 5
Shielded No
Electrical
Withstanding Voltage 500V AC/Minute (2 to 5 Pins)
Current Rating 4A AC/DC
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Contacts Brass Gold Plated
Insulators UL94V-0 Black
Connector Body Zinc Alloy Nickel Plated
Seal Silicone
Nut P9 or M16 Brass Nickel Plated
Environmental
Operating Temperature -40 to 100oC
Waterproof Rating IP67
General Information
Mounting Type PCB

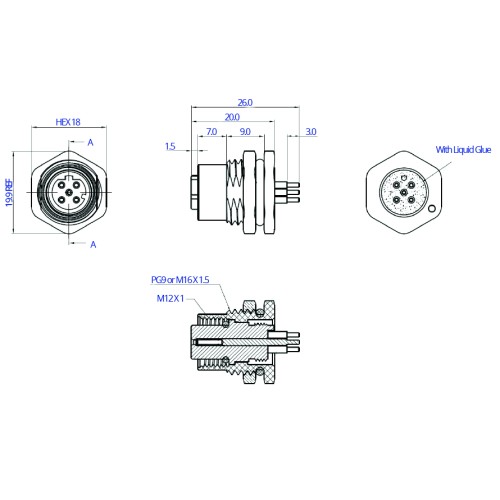

CC12-XXS-FD07-PBX - M12 Front Fastening Die Cast Socket (D Code)

  • Product Code: CC12-XXS-FD07-PBX


The CC12-XXS-FD07-PBX is an M12 circular connector which is available with 2 to 5 pin options in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. These connectors can be used in harsh environments and have an IP67 waterproof rating. The M12 size lends itself as a solution for power or signal solution for factory automation, agricultural applications, robotics and transportation.

Features

  • Straight pins to mount directly onto a PCB
  • Available in D coding
  • 2 to 5 Pins
  • Offering speeds up to 10Gbps
