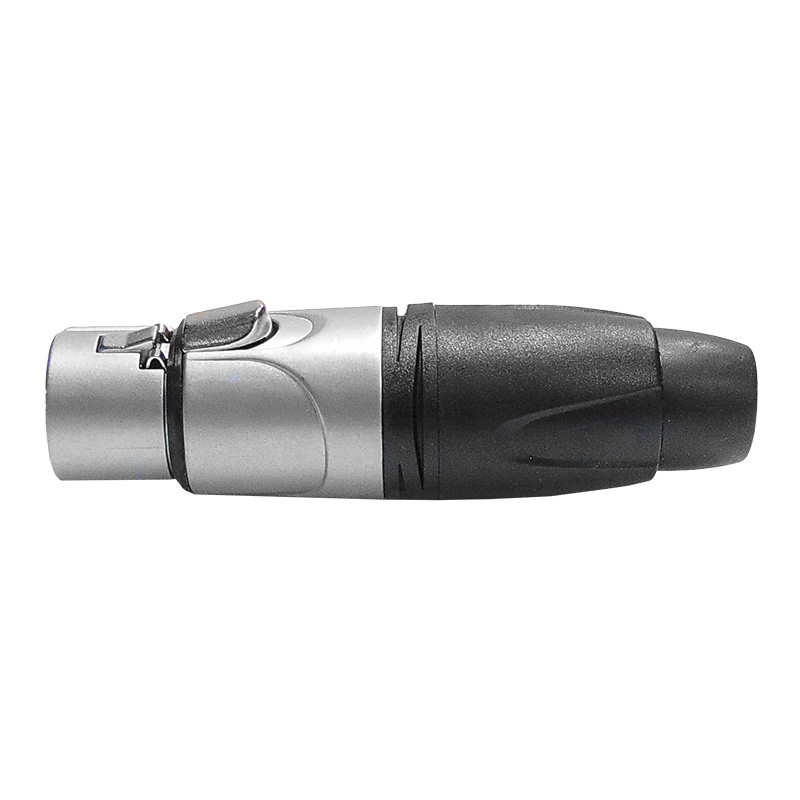

Fully compliant with IEC 61076-2-103, the AXCS Series connectors deliver exceptional electrical performance and long-term reliability in demanding professional environments. Designed for use in microphone, audio, and A/V equipment wiring, these high-quality cable-mounted plugs ensure consistent performance and robust mechanical integrity.
The connector body is manufactured from precision die-cast zinc alloy, lathe-finished for a smooth finish before black chrome plated to ensure durability and an attractive surface finish. A high-strength, temperature-resistant PBT insulator provides excellent electrical insulation and high-voltage resistance.
The contact pins are produced from brass and plated in gold to ensure efficient conductivity and extended mating life. Plastic gland and cable clamps accommodate cable diameters up to 4.7mm, providing secure strain relief during installation.
Available in different pin variations:
AXCS-3P-ZBDG1-B– 3 Pin
AXCS-4P-ZBDG1-B – 4 Pin
AXCS-5P-ZBDG1-B– 5 Pin
Key Features;
- Precision die-cast zinc alloy body, lathe-finished and black chrome plated
- PBT engineering-grade insulator with excellent electrical and high-voltage resistance
- Brass contact pins with gold plating for superior conductivity and long service life
- Plastic gland and cable clamps supports up to 4.7mm cable diameters and provide reliable strain relief
- Available as a standalone connector or as part of a complete cable assembly
