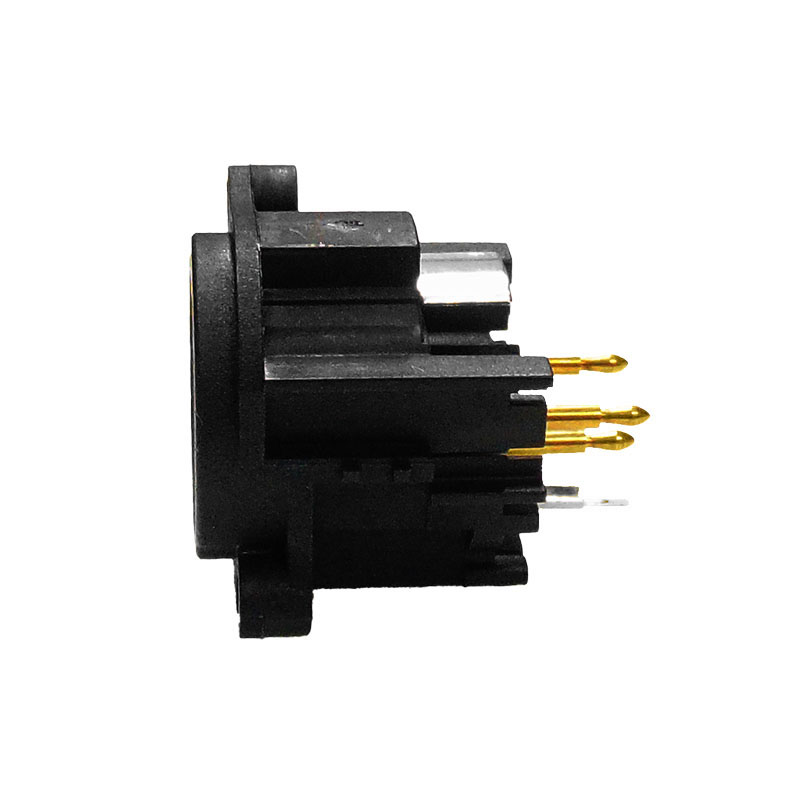

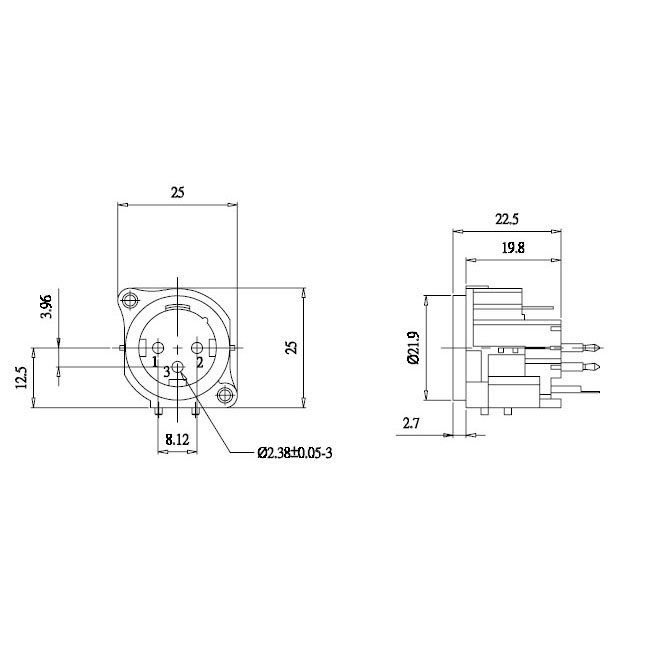

AXPS-3P-P1DGA – 3 Pin Straight Panel Mounted XLR Plug

AXSS-3P-P1DSA – 3 Pin Straight Panel Mounted XLR Plug

This high quality 3 pin panel mount XLR plug features a square plastic shell constructed from PA-6 glass fibre reinforced material, providing outstanding strength, dimensional stability, and long term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution for space-constrained applications.

The precision machined brass contacts are silver plated to deliver superior conductivity, corrosion resistance, and a long service life. Ideal for professional audio, broadcast, and industrial signal applications.

Key Features:

3-pin XLR plug (male), panel-mount type
Durable PA-6 glass fibre reinforced plastic shell
Straight pins for PCB mounting
Precision-machined brass contacts with silver plating
Excellent electrical performance and corrosion resistance

AXSS-3S-P1PSA – 3 Pin Straight Panel Mounted XLR Socket

This high quality 3 pin panel mount XLR socket features a square plastic shell constructed from PA-6 glass fibre reinforced material, providing outstanding strength, dimensional stability, and long-term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution for space constrained applications.

The precision machined contacts are manufactured with a phosphor bronze interface with brass rear PCB pin which is entirely silver plated to ensure excellent conductivity, corrosion resistance, and extended service life. This connector is ideal for professional audio, broadcast, and industrial signal transmission environments.

Key Features:

3-pin XLR plug (male), panel-mount type
Durable PA-6 glass fibre reinforced plastic shell
Straight pins for PCB mounting
Precision-machined phosphor bronze and brass contacts with silver plating
Excellent electrical performance and corrosion resistance

AXPS-3S-P1PGA – 3 Pin Straight Panel Mounted XLR Socket

This high quality 3 pin panel mount XLR socket features a round plastic shell made from PA-6 glass fibre reinforced material, ensuring exceptional strength and long-term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution.

The precision machined phosphor bronze contacts are gold plated to deliver superior conductivity, corrosion resistance, and a long service life. Ideal for professional audio, broadcast, and industrial signal applications.

Key Features:

3-pin XLR socket (female), panel-mount type
Durable PA-6 glass fibre reinforced plastic shell
Straight pins for PCB mounting
Precision-machined phosphor bronze contacts with gold plating
Excellent electrical performance and corrosion resistance

AXSS-3S-ZBPNB-P – 3 Pin Straight Panel Mounted XLR Socket with Push Button

This high quality 3 pin panel mount XLR plug features a square die cast shell constructed from zinc alloy and then finished with a black chrome coating, providing outstanding strength, dimensional stability, and long term durability. Designed with straight pins for direct PCB mounting, it offers a compact and reliable interconnect solution for space-constrained applications.

The connector incorporates a push-button locking mechanism to ensure a secure and stable mating connection. The precision machined phosphor bronze contacts are nickel plated to deliver superior conductivity, enhanced corrosion resistance, and an extended service life. Ideal for professional audio, broadcast, and industrial signal transmission systems.

Key Features:

• 3-pin XLR socket (female), panel-mount type
• Die cast zinc alloy with black chrome coating shell
• Straight pins for direct PCB mounting
• Push-button locking mechanism for secure connection
• Precision-machined phosphor bronze contacts with nickel plating
• Excellent electrical performance and corrosion resistance
