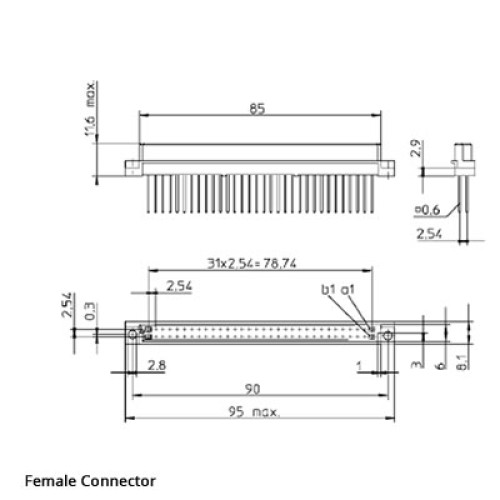

The DIN 41612 B type body offers a choice of six contact arrangements over 2 rows. It has an overall width of 95mm. It is available in only female connection type.
This is a PCB mounted connector and is available in two lengths of straight solder tails for boards which are 1.6mm or 2.4mm in thickness. A press in style is available for boards from 1.5mm to 4.0mm and two length tails for wire wrap mounting.

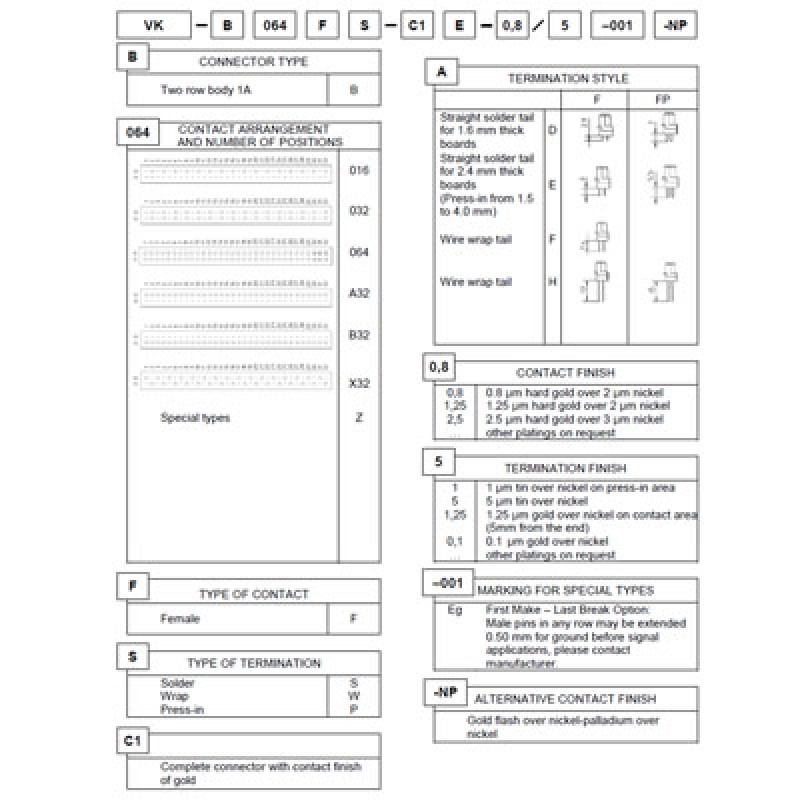

Each DIN 41612 connector is offered with a number of different contact and termination finishes.
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥10 6 MΩ |
| Connector Type | Female |
| Current Rating | 1.5A at 20°C 1A at 80°C 0.75A at 100°C |
| Proof Voltage | Contact / Contact 1000Vrms Contact / Test Panel 1550Vrms |
| Connector Body | Glass Fibre Filled Polyester |
| Male Contact | Copper Alloy |
| Female Contactl | Phosphor Bronze |
| Contact Plating | Ni / Au Ni / PdNi / Au |
| Temperature Range | -55 to +125°C |
| Flammability | UL 94 V-O |
| Insertion Force | 32 pole ≤30N 64 pole ≤60N |
| Retention Force | ≥0.15N / Contact Pair |
