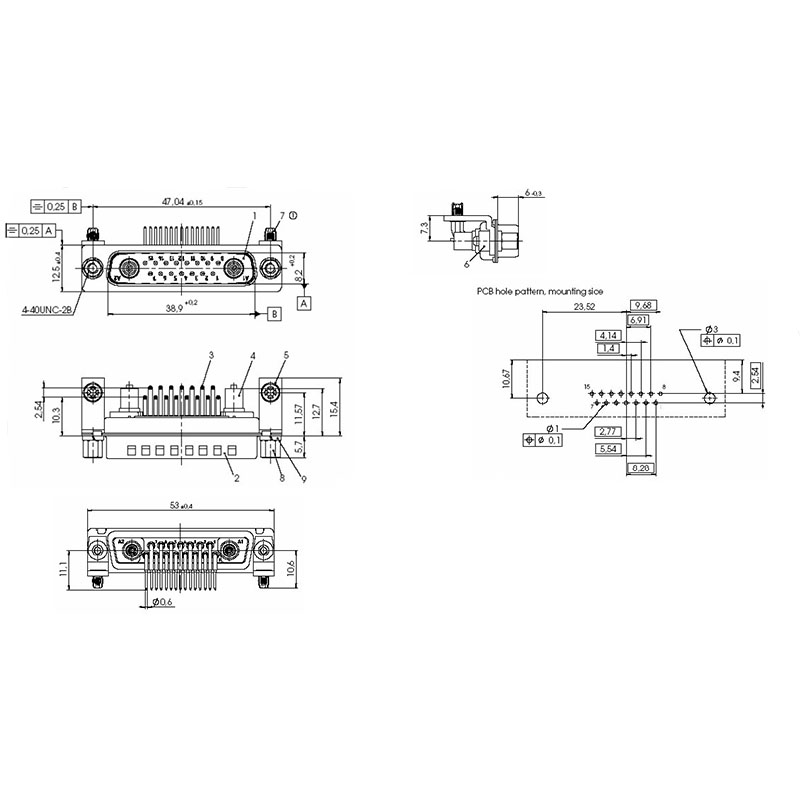

The C-SD-196 is a 17W2 mixed layout connector that features 15 pin contacts with 2 fitted high voltage contacts for AWG 20 gauge cable. The connector also features spring washers, female screwlocks, snap-in rivets and clinch nuts all fitted with the mounting bracket to the Mixed layout connector.
| Test Voltage | 1000V |
| Current Rating | 5A |
| Contact Resistance | ≤2.7mΩ |
| Insulation Resistance | ≥5000MΩ |
| Connector Type | Male |
| Metal Parts | Steel with blue chromate over zinc plating or tin plate finish |
| Contacts | Copper Alloy, Flash Gold Plated |
| Insulators | thermoplastic glass filled UL94 V-O (green) |
| Temperature Range | -55 to 105°C |
| Processing | Hand and Wave Solder |
