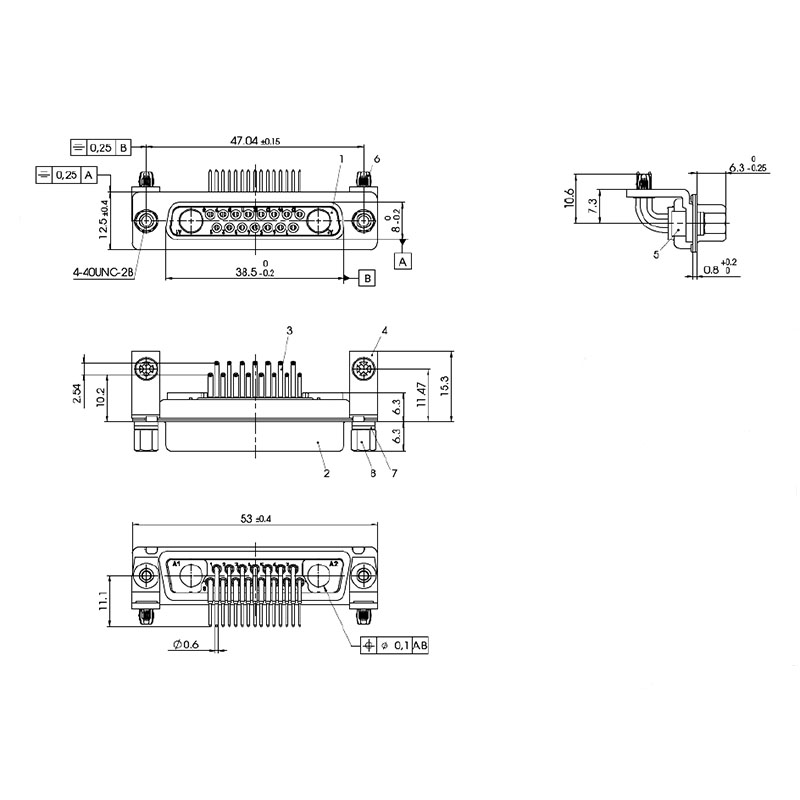

The C-SD-2726 is a 17W2 mixed layout connector that features 15 female contacts with 2 spaces for Mixed layout contacts. The connector also features spring washers, female screwlocks, snap-in rivets and clinch nuts all fitted with the mounting bracket to the Mixed layout connector.
| Test Voltage | 1000V |
| Current Rating | 5A |
| Contact Resistance | ≤2.7mΩ |
| Insulation Resistance | ≥5000MΩ |
| Connector Type | Female |
| Metal Parts | Steel with blue chromate over zinc plating or tin plate finish |
| Contacts | Brass, Flash Gold Plated |
| Insulators | thermoplastic glass filled UL94 V-O (green) |
| Temperature Range | -55 to 130°C |
| Processing | Hand and Wave Soldering |
