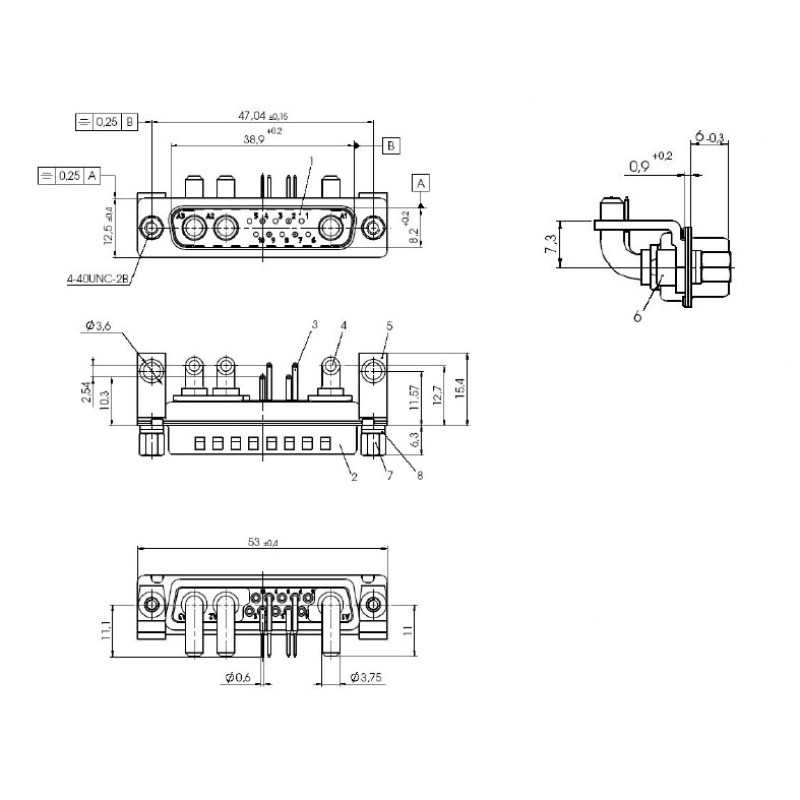

The C-SD-338 is a 13W3 mixed layout connector that features 4 populated pin contacts with 3 fitted high power contacts up to 40A. The connector also features female screwlocks and clinch nuts all fitted with the mounting bracket to the Mixed layout connector.
| Test Voltage | 1000V |
| Current Rating | 5A |
| Contact Resistance | ≤2.7mΩ |
| Insulation Resistance | ≥5000MΩ |
| Connector Type | Male |
| Metal Parts | Steel with tin plate finish |
| Contacts | Brass, Flash Gold Plated |
| Insulators | thermoplastic glass filled UL94 V-O (green) |
| Temperature Range | -55 to 130°C |
| Processing | Hand and Wave Soldering |
