The C-SX-061 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our C-SX-152 offers all frequencies up to 12GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

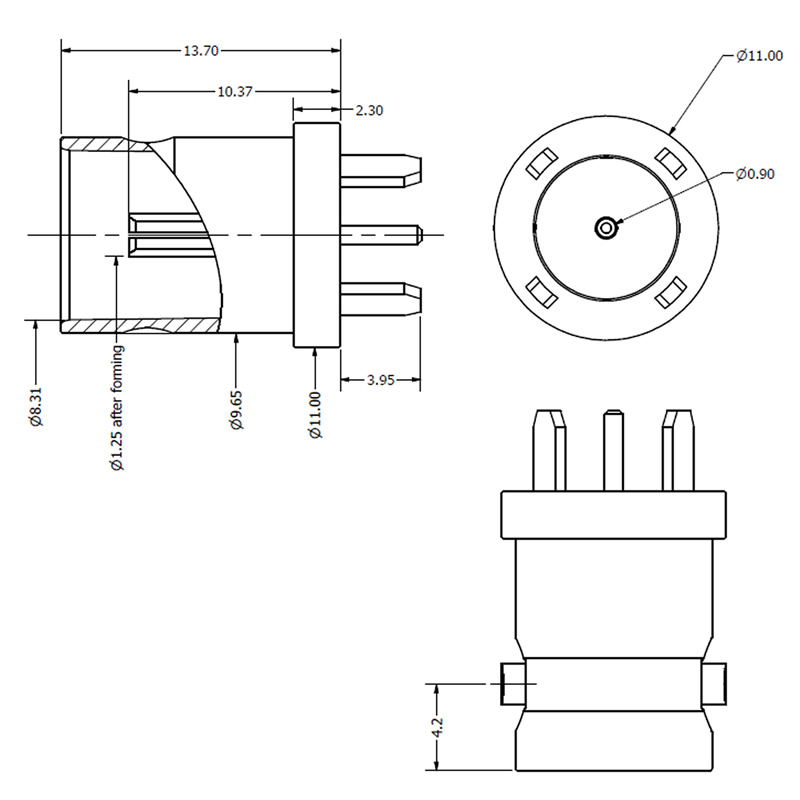

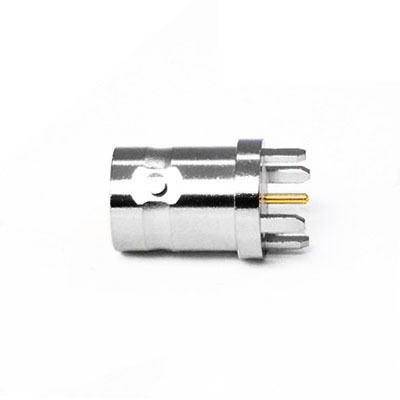

The C-SX-061 precision 75Ω BNC Connector is a top entry PCB mounted connector which combines the advantages of press fit or solder applications. This precision BNC Connector can be pressed into the PCB in one operation to secure the outer contacts. A further solder operation then provides the precision 75Ω bond with the centre contact. Other materials such as gold plating are available to customer requirement.
