The C-SX-068 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our BNC top entry connectors offer all frequencies up to 12GHz with improved performance at the lower frequencies and is a cost effective option when compared to the 3GHz options.

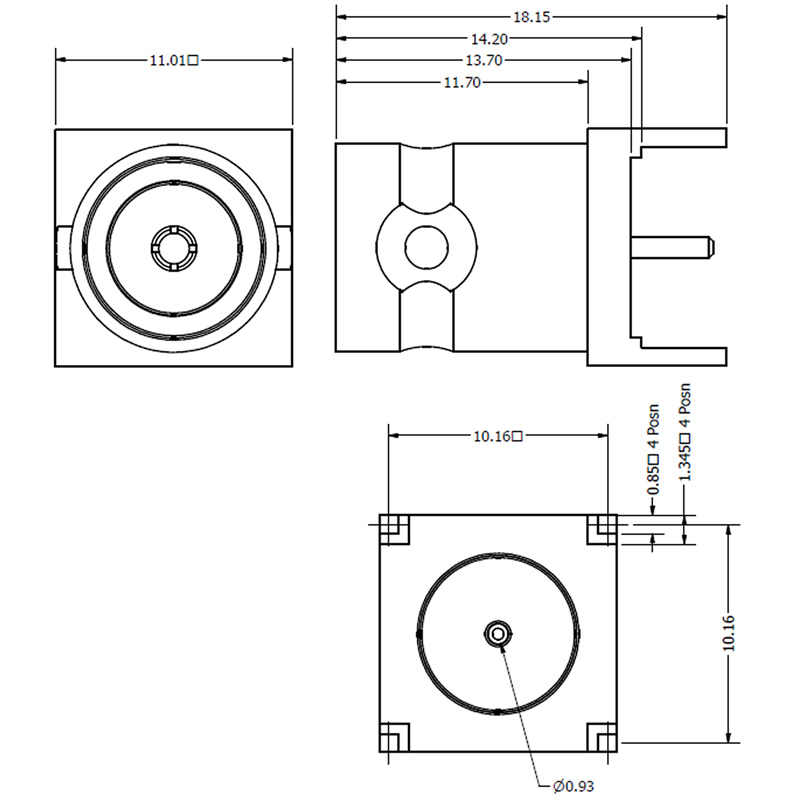

The C-SX-068 precision 75Ω BNC Connector is a top entry five pin PCB mounted connector, with a square base. Cambridge Connectors precision BNC range are compatible with all other standard BNC connectors, but peak performance is achieved when mated with other connectors in our range. Other materials such as gold plating are available to customer requirement.
