The C-SX-073 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XBS-12-EB16-NNS-AA offers all frequencies up to 12GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

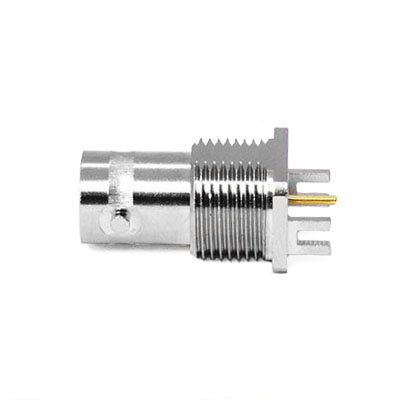

This Precision 75Ω BNC Bulkhead is an edge mounting connector and comes in the following size formats:

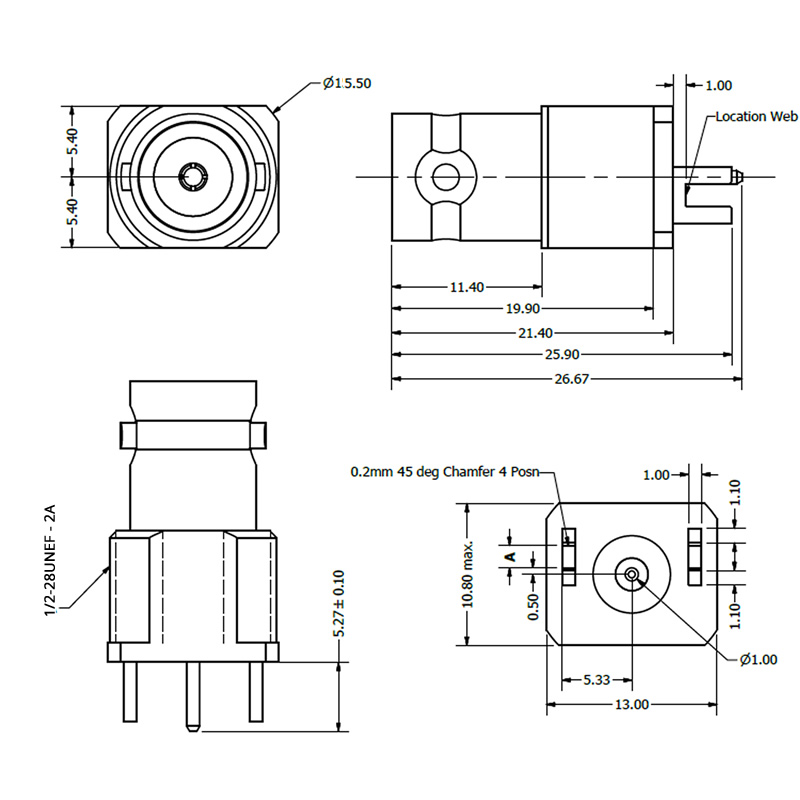

C-SX-073 for 3.2mm PCB thickness with dimension A of 3.3mm

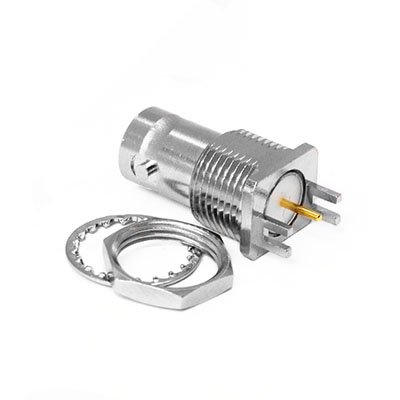

All sizes are supplied with standard nut and washer. Slotted circular nuts available as an optional extra. Other materials such as Gold Plating are available to customer requirements.
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.08 (max) DC – 1.5GHz 1.16 (max) 1.5 – 3GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ"Au, Phosphor Bronze / 10µ”Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Processing | Maximum hand soldering temperature 265°C |
| Mounting Type | Edge Mounted |
| Board Thickness | 3.2mm |
| Hardware | Supplied with hex nut and washer |
