C-SX-086G – PCB Right Angle 1.0 / 2.3 Bulkhead Connector

Product Code: C-SX-086G

The C-SX-086G is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XGS-06-RB26-NG-AZ offers all frequencies up to 6GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

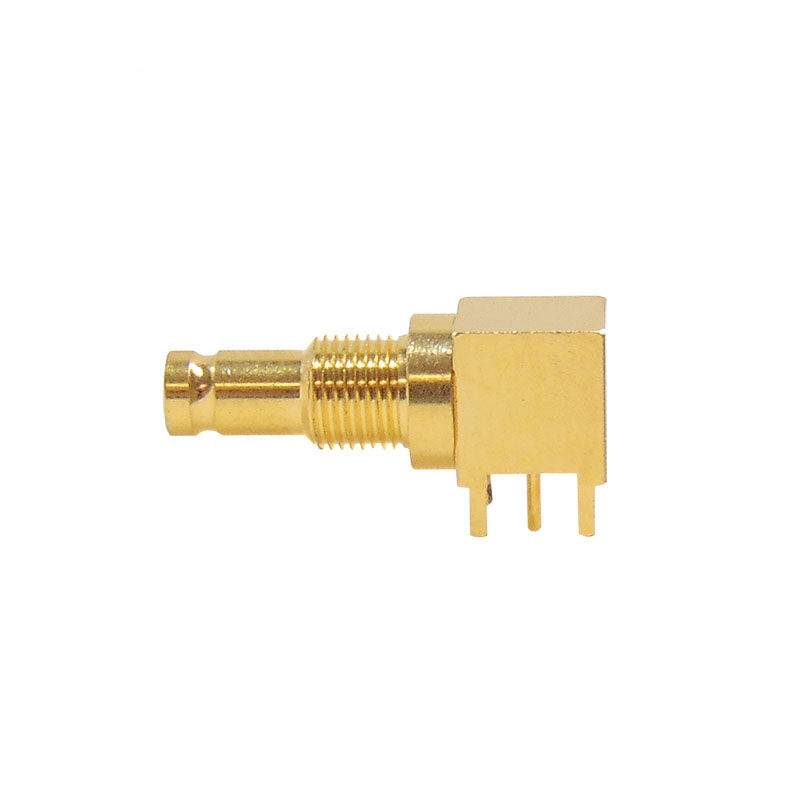

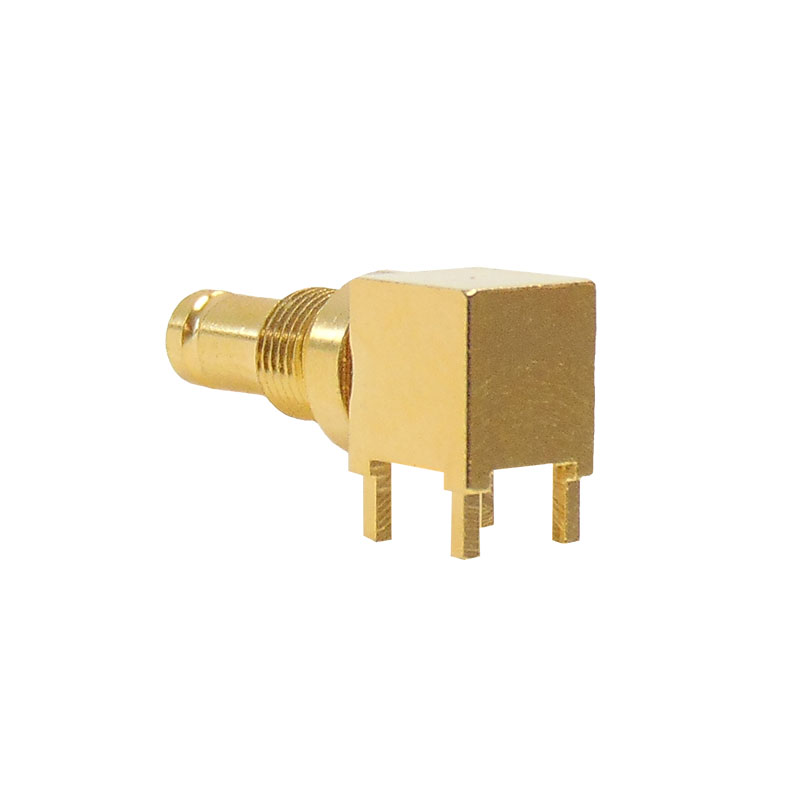

The C-SX-086G precision 75Ω 1.0/2.3 Connector is right angled mounted PCB bulkhead connector. This range of connectors meets the SMPTE 424M standard and is ideal for use in industrial process control and data acquisition applications. The connector is supplied with a nut.

This is also available in a 400 Tape and reel placement option as part number C-SX-121.

Impedance 75Ω
Frequency Range 0 -3GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.10 (max) DC – 1.5GHz 1.12 (max) 1.5 – 3GHz
Contact Resistance Centre contact 4.0mΩ Outer contact 2.5mΩ
Connector Type Female
Metal Parts Brass / Au
Centre Pin BeCu / 10µ Au
Insulators PTFE
Temperature Range -65 to +85°C
Mating Cycles 500
Mounting Type Right Angled
Leg Length 3.0mm
Hardware Supplied with a 2 slot circular nut
Processing Maximum wave and hand soldering temperature 265°C
