The C-SX-098G is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XGS-06-EB16-GG-AZ offers all frequencies up to 6GHz with improved performance at the lower frequencies.

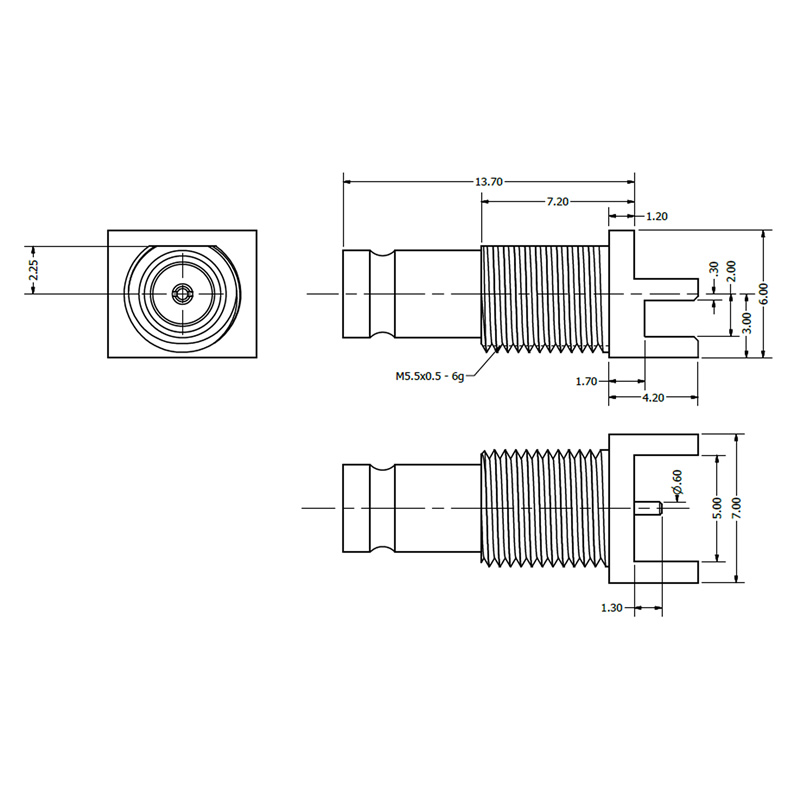

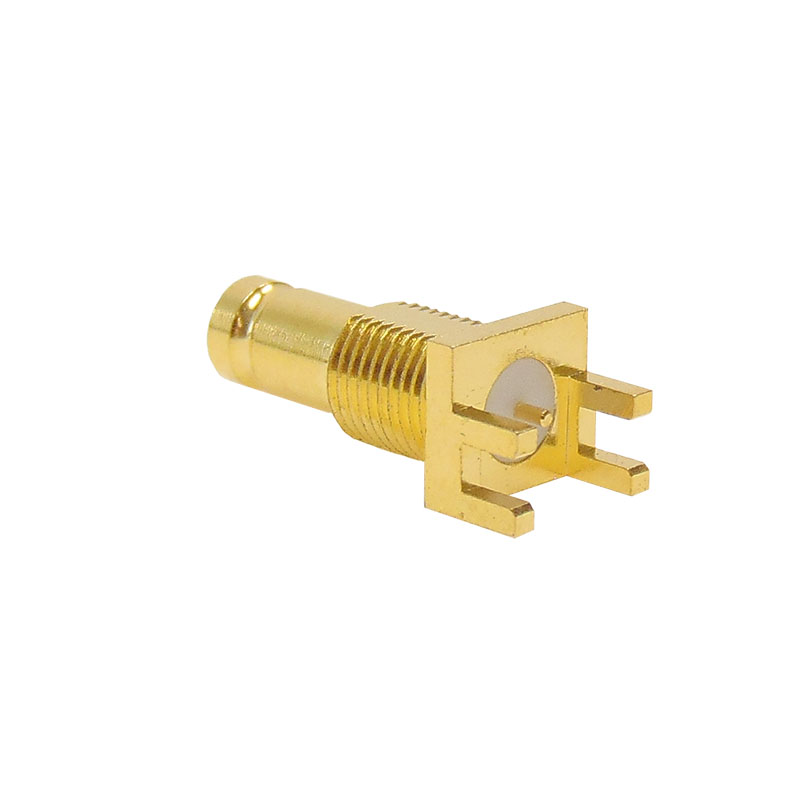

The C-SX-098G precision 75Ω 1.0/2.3 Connector is an edge mounted PCB connector. This range of connectors meets the SMPTE 424M standard and is ideal for use in industrial process control and data acquisition applications. The connector is supplied with a nut.
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Reflection Factor (VSWR) | 1.02 (max) DC – 1.5GHz 1.05 (max) 1.5 – 3GHz |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | >1000M Ω |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ”Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | Supplied with 2 slot nut |
| Processing | Maximum hand soldering temperature 265°C |
