C-SX-108G – PCB Surface Mount BNC Connector with Pathfinder Light Pipe

C-SX-108G – PCB Surface Mount BNC Connector with Pathfinder Light Pipe

Product Code: C-SX-108G

The C-SX-108G is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XBS-06-RB33-NNV-AA offers all frequencies up to 6GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

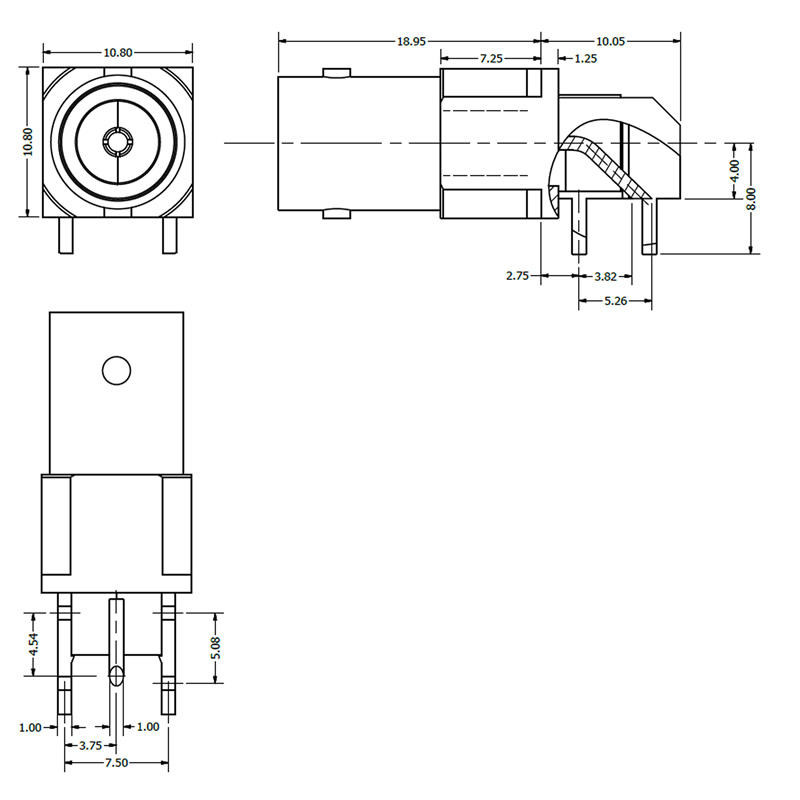

This precision 75Ω BNC Connector is a right angle mounted PCB connector for surface mount applications. It also features PathfinderTM light pipe technology which aids port identification. With a centre line of 4mm above the board, its low profile permits closer packing densities of daughter boards, which allows reduction in the bulk of routing and switching equipment.

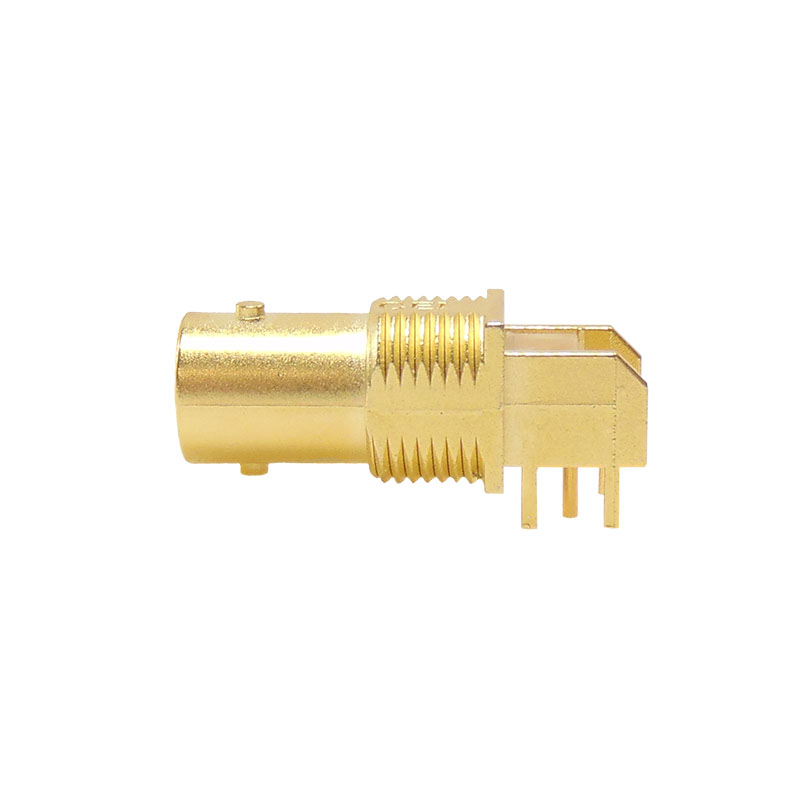

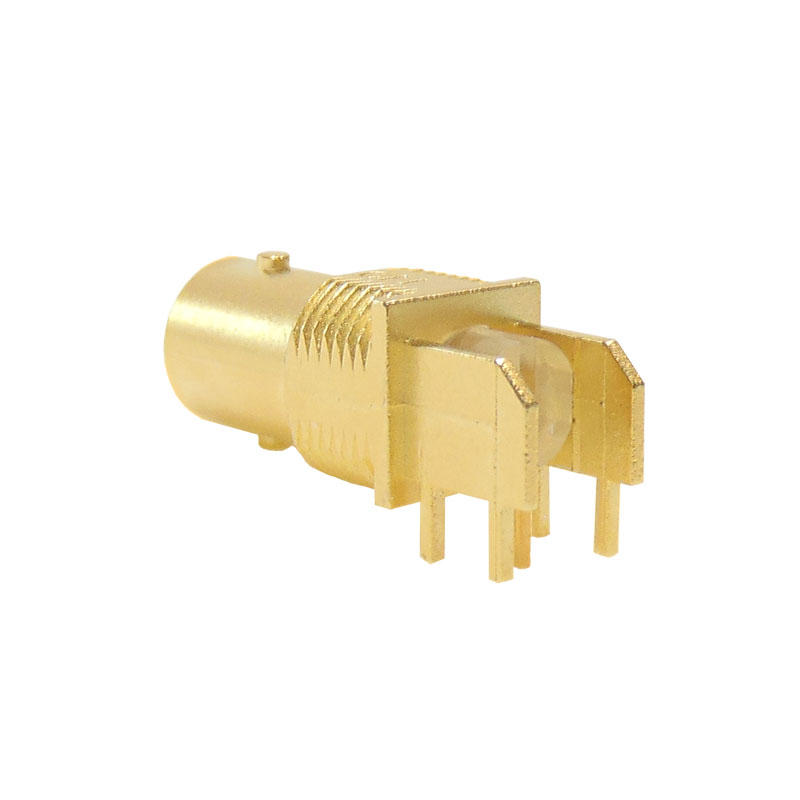

The C-SX-108G is a right angle surface mount BNC Connector. Each connector is supplied with nut and washer.

Electrical

Impedance	75Ω
Frequency Range	0 – 3GHz
Working Voltage	500Vrms
Dielectric Withstanding Voltage	1500Vrms
Reflection Factor (VSWR)	1.10 (max) DC – 1.5GHz 1.39 (max) 1.5 – 3GHz
Contact Resistance	Centre contact 1.5mΩ Outer contact 1.0mΩ
Insulation Resistance	>5000M Ω
Connector Type	Female
