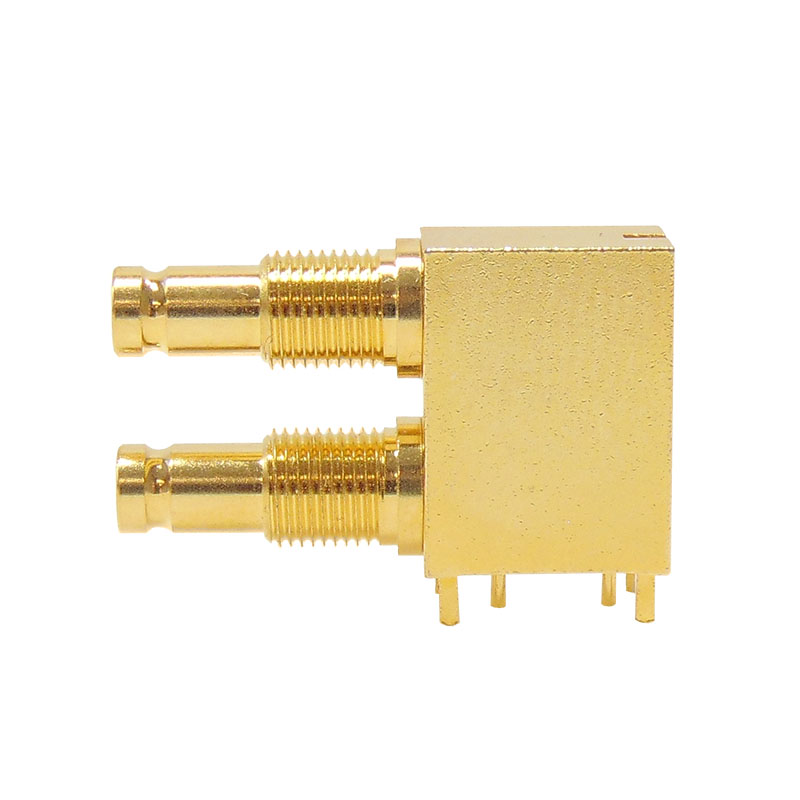

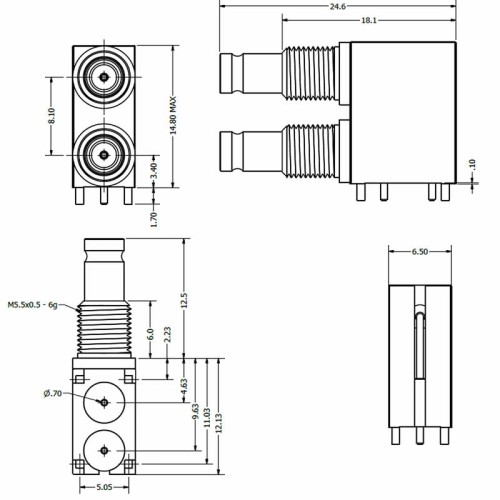

C-SX-117G – Dual Port Right Angle DIN 1.0/2.3 Connector

C-SX-117G – Dual Port Right Angle DIN 1.0/2.3 Connector

Product Code: C-SX-117G

The C-SX-117G is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XGS-06-RB42-GGD offers all frequencies up to 6GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

The C-SX-117G is a dual port connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The configuration of this connector enables increased wiring densities and is ideal for use in 6G HD-SDI applications.

Electrical

Impedance	75Ω
Frequency Range	0 – 6GHz
Working Voltage	250Vrms
Dielectric Withstanding Voltage	750Vrms
Reflection Factor (VSWR)	1.07 (max) DC – 1.5GHz 1.14 (max) 1.5 – 3GHz 1.16 (max) 3 – 3.2GHz 1.31 (max) 3.2 – 6GHz
Contact Resistance	Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance	1000MΩ
Connector Type	Female
