C-SX-121 – DIN1.0/2.3 Right Angled Bulkhead connector with Tape & Reel Placement
C-SX-121 – DIN1.0/2.3 Right Angled Bulkhead connector with Tape & Reel Placement

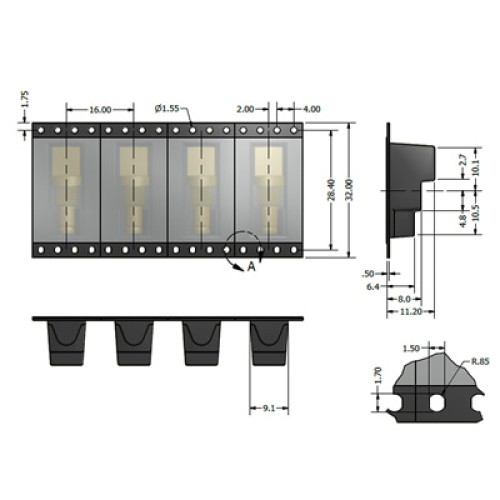

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

C-SX-121 – DIN1.0/2.3 Right Angled Bulkhead connector with Tape & Reel Placement

Product Code: C-SX-121

The C-SX-121 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XGS-06-RB26-NG-AZ offers all frequencies up to 6GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

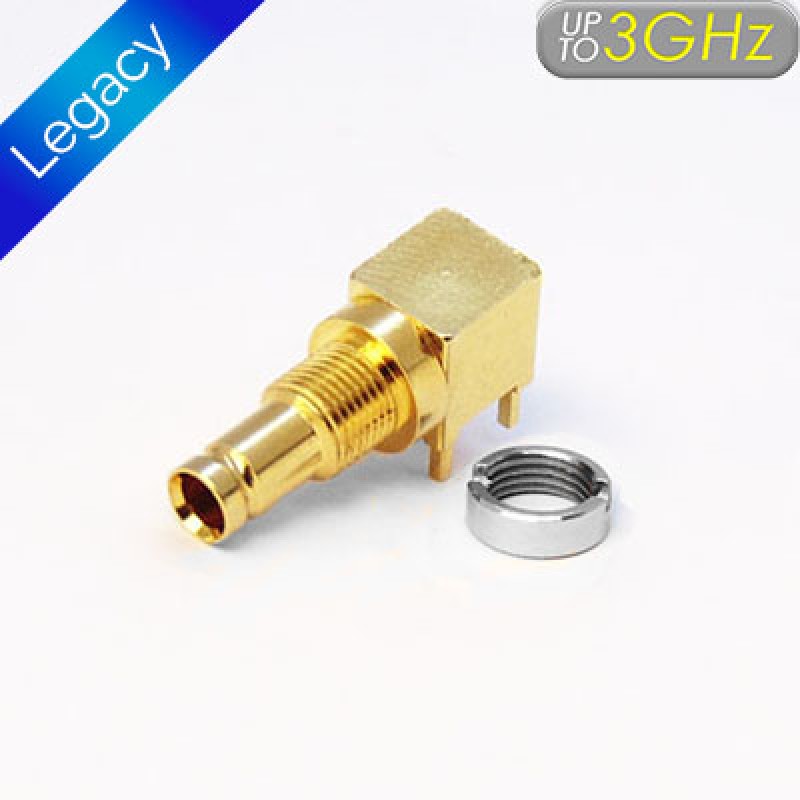

The C-SX-121, is the tape and reel placement part number for the C-SX-86G precision 75Ω DIN 1.0/2.3 Connector is right angled mounted PCB bulkhead connector. This range of connectors meets the SMPTE 424M standard and is ideal for use in industrial process control and data acquisition applications. The connector is mounted in a tape carrier with 400 connectors per reel.

The connector is also sold individually as part number C-SX-086G

Impedance 75Ω
Frequency Range 0 – 3GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.10 (max) DC – 1.5GHz 1.12 (max) 1.5 – 3.0GHz
Contact Resistance Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance >1000MΩ, A, >1000MΩ, >1000MΩ
Connector Type Female
Metal Parts Brass / Au
Centre Pin BeCu / 10″µAu, BeCu / 10"µAu, BeCu / 10"µAu
Mating Cycles 500
Mounting Type Right Angled
Leg Length 3.0mm
Hardware Supplied with 2 slot circular nut
Processing Maximum wave and hand soldering temperature 265°C
