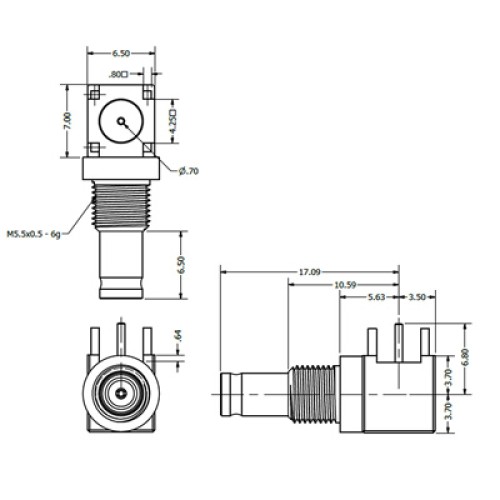

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

C-SX-125 – Right Angle DIN 1.0/2.3 Bulkhead Connector

Product Code: C-SX-125

The C-SX-125 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XGS-06-RB26-NG-AZ offers all frequencies up to 6GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

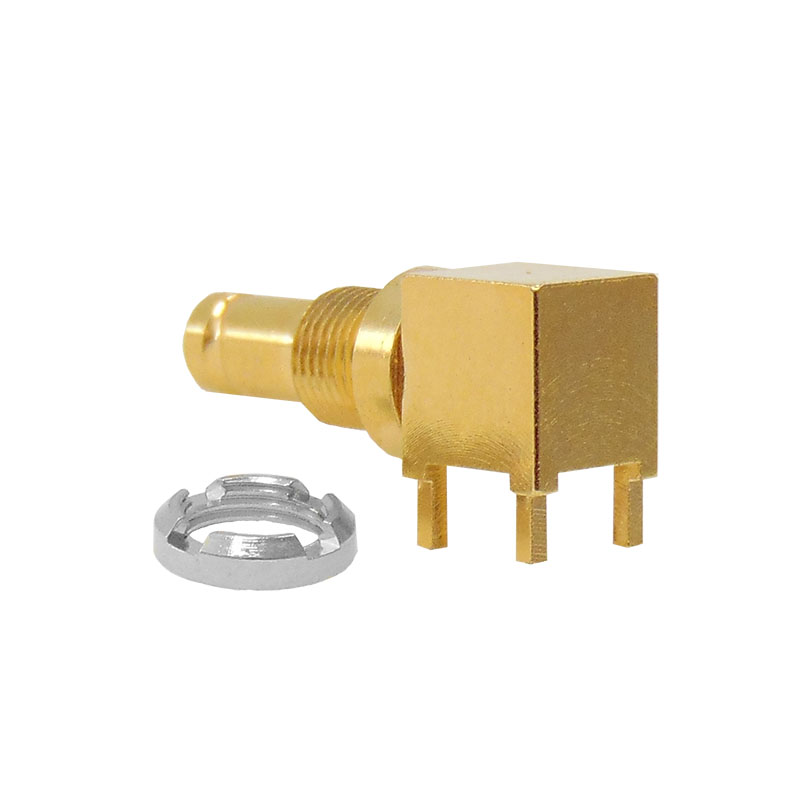

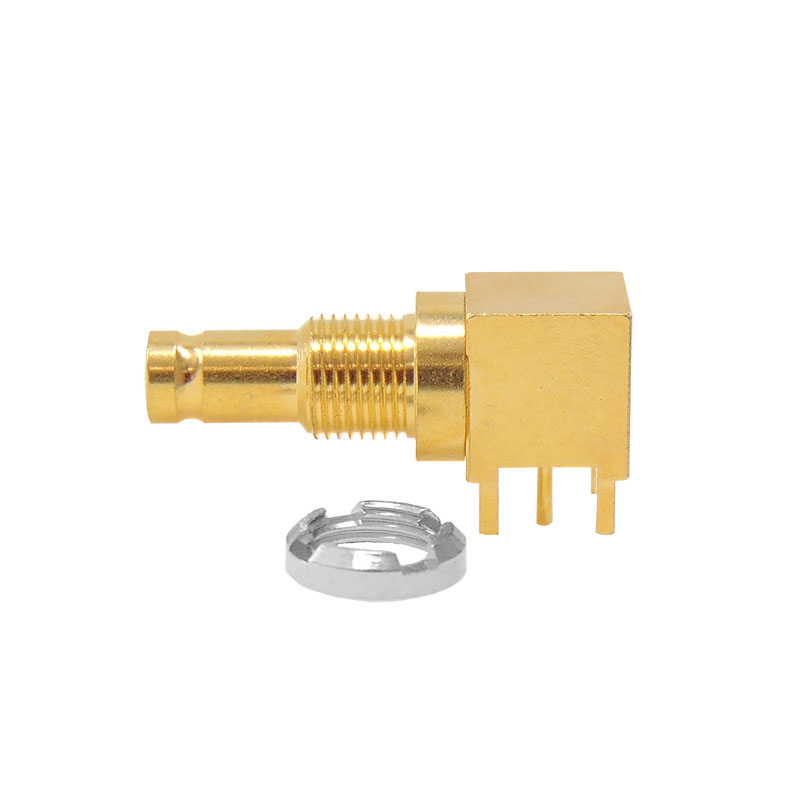

The C-SX-125 precision 75Ω DIN 1.0/2.3 Connector is a right angle PCB mounted bulkhead connector. This range of connectors meets the SMPTE 424M standard and is ideal for use in industrial process control and data acquisition applications. The connector is supplied with nuts.

Impedance 75Ω
Frequency Range 0 – 3GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.22 (max) DC – 1.5GHz 1.28 (max) 1.5 – 3.0GHz
Contact Resistance Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance >1000MΩ
Connector Type Female
Metal Parts Brass / Au
Centre Pin BeCu / 10″µAu
Insulators PTFE
Temperature Range -65 to +85°C
Mating Cycles 500
Mounting Type Right Angled
Leg Length 3.1mm
Hardware Supplied with a 4 slot circular nut
Processing Maximum wave and hand soldering temperature 265°C
