The C-SX-145 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our BNC top entry connectors offer all frequencies up to 12GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

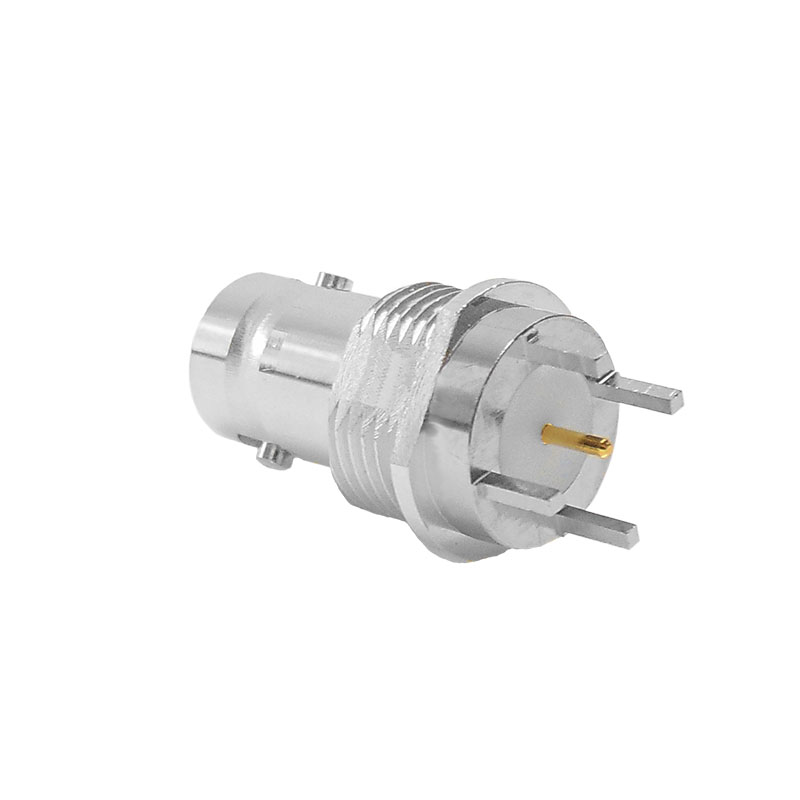

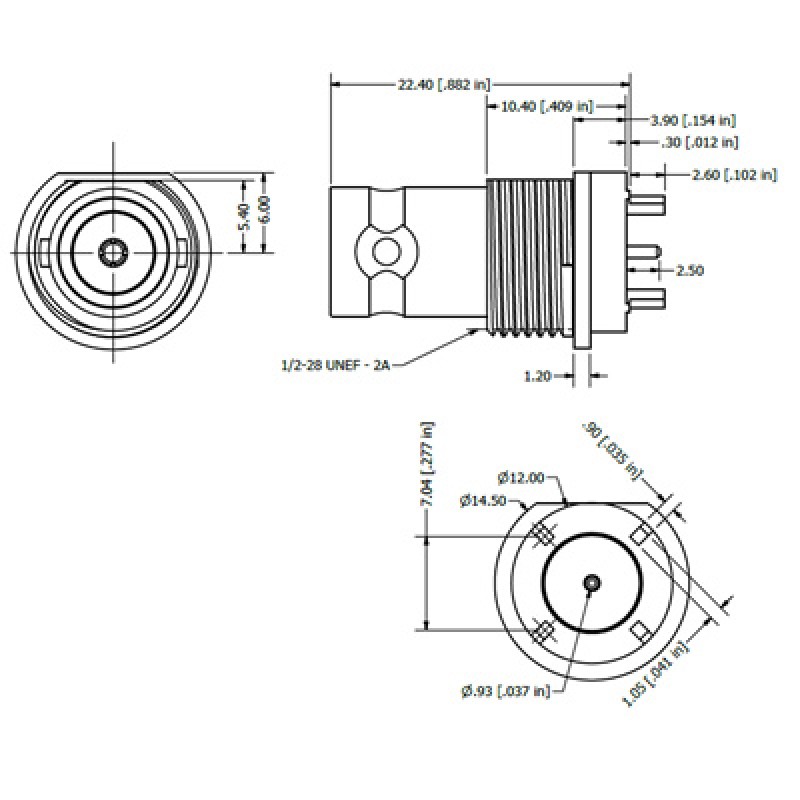

The C-SX-145 is a top entry PCB mounted BNC bulkhead connector, which is part of the precision 75Ω range. The connector is optimised for 6G HD—SDI applications and meets the SMPTE ST-2081 standard allowing up to 6Gbit/s per over a single channel.
The connector is supplied with circular nut and washer.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.04 (max) DC – 3.0GHz 1.09 (max) 3.0 – 6.0GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | >5000MΩ, >5000MΩ, >5000MΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ”Au, Phosphor Bronze / 10µ"Au, Phosphor Bronze / 10µ"Au |
| Insulators | UL94 HB TPX |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 250 |
| Processing | Maximum wave and hand soldering temperature 265°C |
| Mounting Type | Top Entry |
| Leg Length | 2.6mm |
| Hardware | Supplied with 2 slot circular nut and shakeproof washer |
