The C-SX-180 is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, our XBS-12-TB41-NN-CA offers all frequencies up to 12GHz with improved performance at the lower frequencies and is a cost-effective option when compared to the 3GHz options.

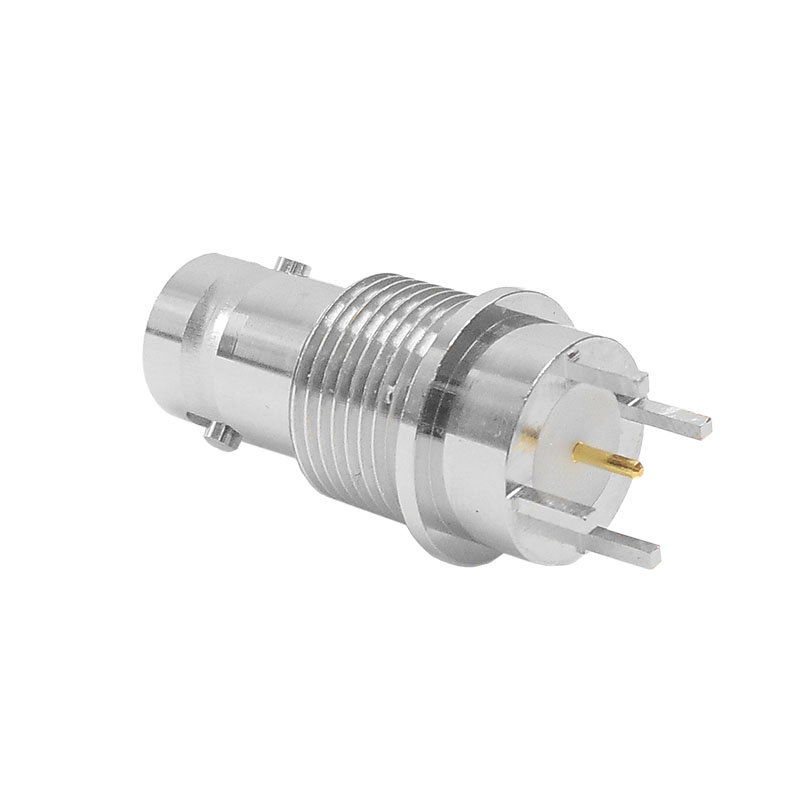

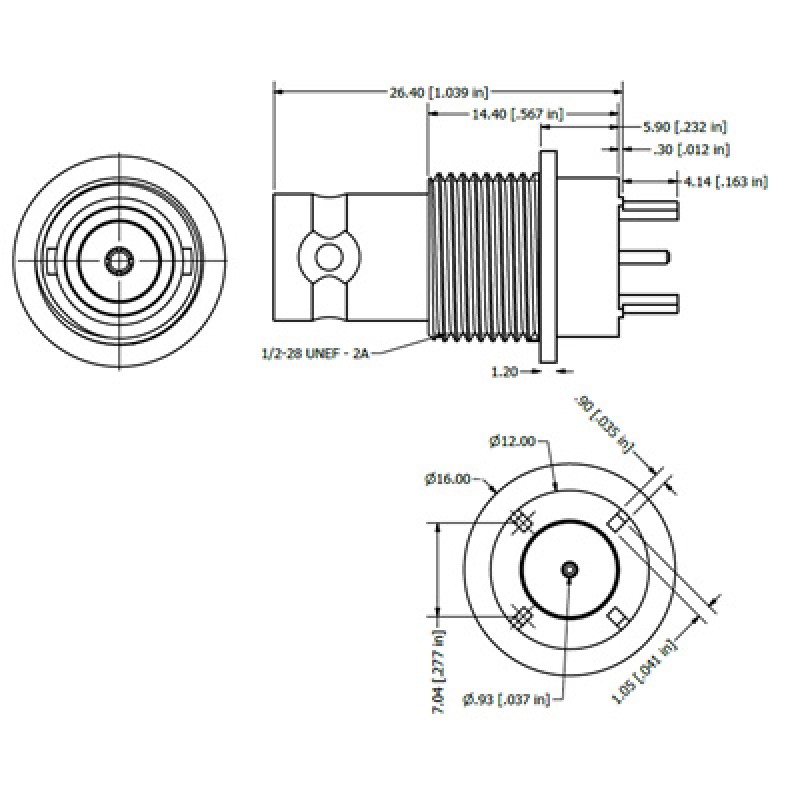

The C-SX-180 is a top entry five pin bulkhead mounting BNC connector. This BNC connector is suitable for high speed video applications such as 6G HD- SDI digital broadcast and CoaXPress machine vision. Each connector is supplied with a circular nut and washer.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.08 (max) DC – 3.0GHz 1.20 (max) 3.0 – 6.0GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | >5000MΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ”Au |
| Insulators | PFTE |
| Temperature Range | -65 to 85°C |
| Mating Cycles | 250 |
| Processing | Maximum wave and hand soldering temperature 265°C |
| Mounting Type | Top Entry |
| Leg Length | 4.14mm |
| Hardware | Supplied with 2 slot circular nut and shakeproof washer |
