Product Code: C-SX-216

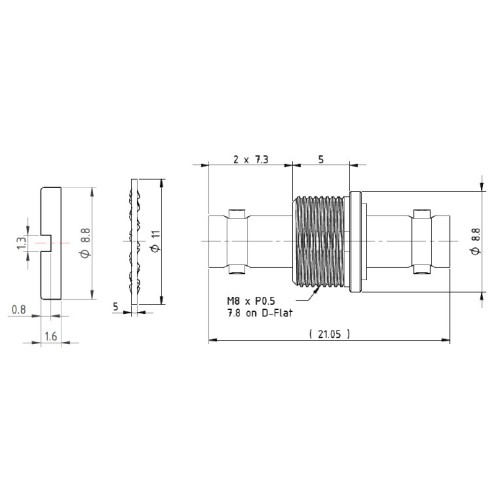

The C-SX-216 is a Micro BNC socket  with isolated bulkhead to Micro BNC socket adaptor. This is a precision 75Ω adaptor which is suitable for frequencies up to 12GHz. The adaptor is supplied with nut and washer.

Impedance 75Ω
Frequency Range 0 – 12GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.21 (max) DC – 6GHz
1.19 (max) 6 – 12 GHz
Metal Parts Brass / Ni
Centre Pin BeCu / Ni / Au
Insulators PTFE
Hardware Supplied with hex nut and shakeproof washer
