The C-SX-219GZZ is part of our legacy range and is available to new and existing customers, as a manufactured to order part. For new designs, we would recommend our part XGS-06-EB16-GG as an alternative, which as part of our core DIN 1.0/2.3 range offers a cost-effective option and allows frequencies up to 6GHz.

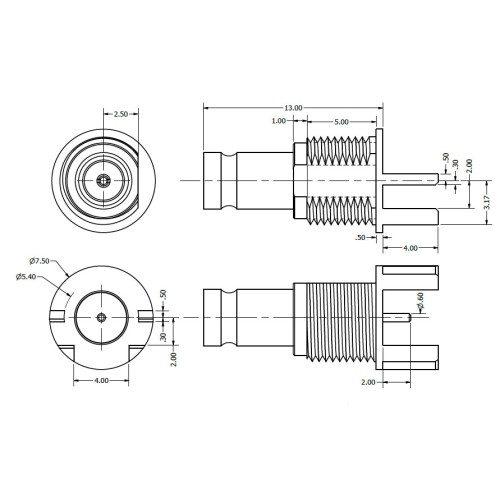

The C-SX-219GZZ is a precision 75Ω DIN 1.0/2.3 Connector which is an edge mounted PCB bulkhead connector, which conforms to the standard SMPTE ST 2081-1, allowing bit rates of 5.94bit/s over a single coaxial connection. This is ideal for use in industrial process control and data acquisition applications.
| Impedance | 75Ω |
| Frequency Range | 0 – 6GHz |
| Working Voltage | 250Vrms |
| Dielectric Withstanding Voltage | 750Vrms |
| Reflection Factor (VSWR) | 1.26(max) DC – 3GHz 1.55 (max) 3 – 6GHz |
| Contact Resistance | Centre contact 4.0mΩ Outer contact 2.5mΩ |
| Insulation Resistance | >1000M Ω |
| Connector Type | Female |
| Metal Parts | Brass / Au |
| Centre Pin | BeCu / 10µ”Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
| Mating Cycles | 500 |
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | None |
| Processing | Hand soldering to a maximum temperature of 245°C |
