Product Code: C-SX-221GNHT

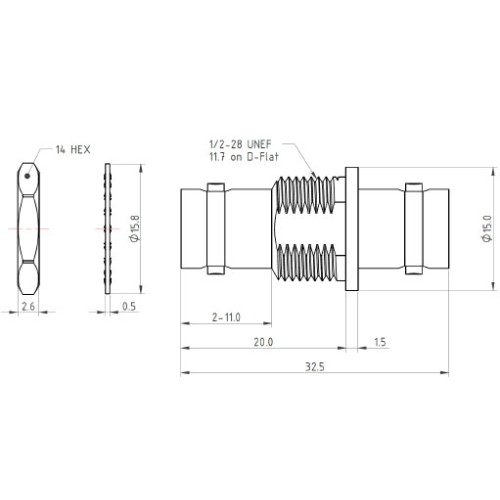

The C-SX-221GNHT is a BNC bulkhead socket to BNC socket adaptor. This is a precision 75Ω adaptor which is suitable for frequencies up to 12GHz. The adaptor is supplied with nut and washer.

Impedance 75Ω
Frequency Range 0 – 12GHz
Working Voltage 500Vrms
Dielectric Withstanding Voltage 1000Vrms
Reflection Factor (VSWR) 1.35 (max) 0 – 12GHz
Metal Parts Brass / Ni
Centre Pin PhosBronze / Ni / Au
Insulators PTFE
Hardware Supplied with hex nut and shakeproof washer
