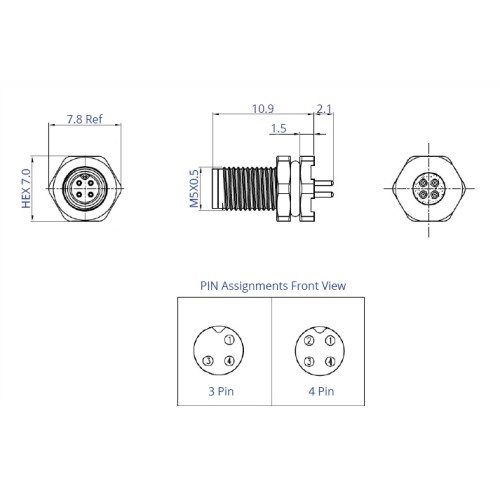

The CC05-XXP-FA-PB is an M5 front fastening panel mounted plug. This circular connector has an A coding, with the option of a 3 or 4 way pin assignment, with PCB through hole pins. The IP67 waterproof rating and screw lock nature of the M-series connectors provide a robust and secure connection and with an overall diameter of 7.8mm maximum, the M5 connectors provide a small and discrete connection option for
power or communication signals.
Features
- Most compact connector in the M series range of connectors
- Compact and rugged design with screw locking mechanism
- IP67 Waterproof rating
- Robust miniature sensors
- Suitable for a wide selection of applications including automotive and process control
