CC08-XXP-FX-PB – M8 Front Fastening Plug (A and B Code)

Product Code: CC08-XXP-FX-PB

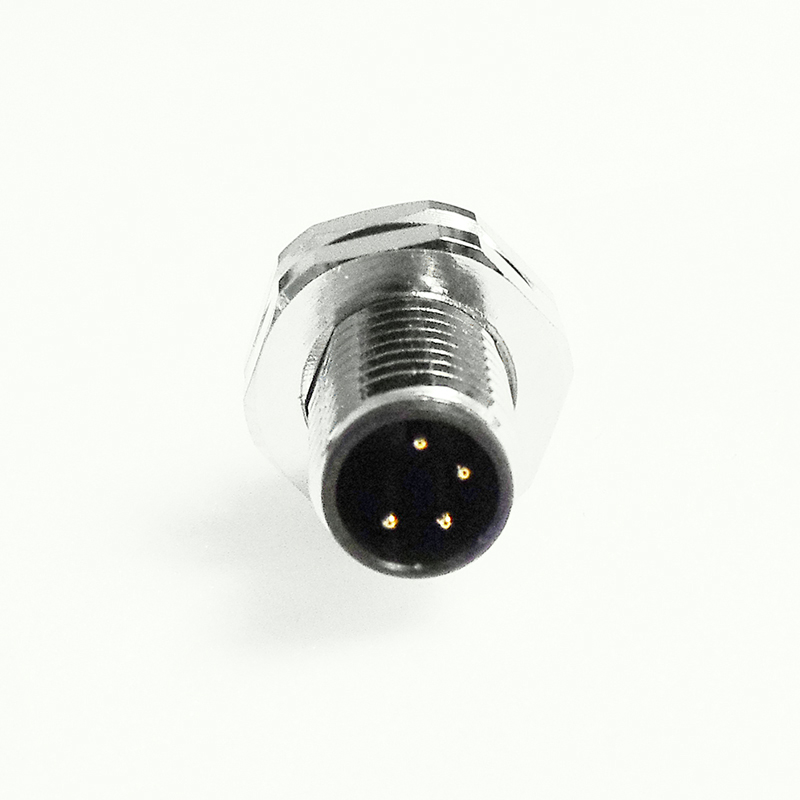

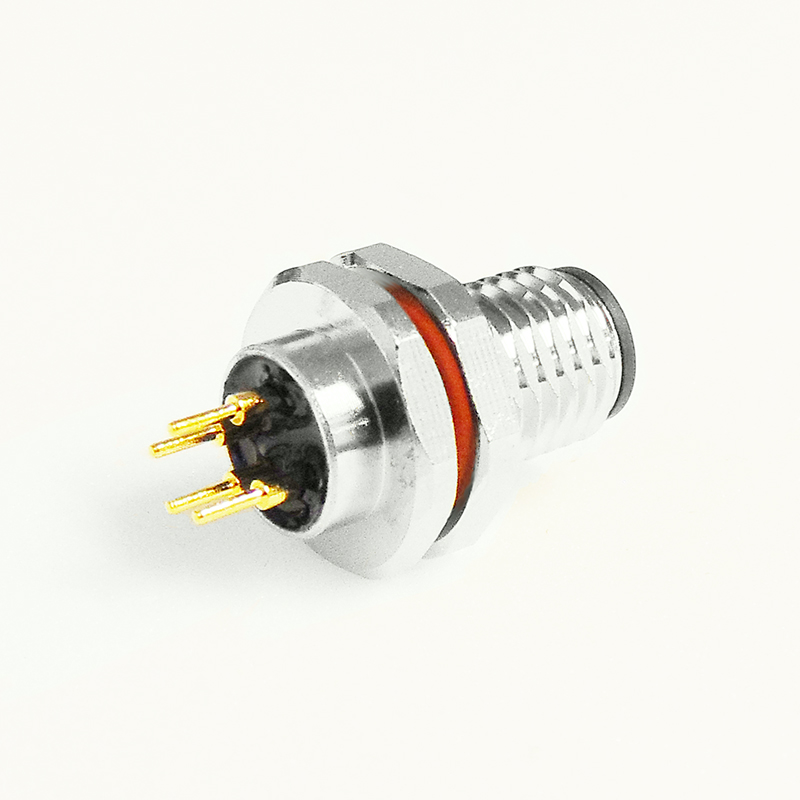

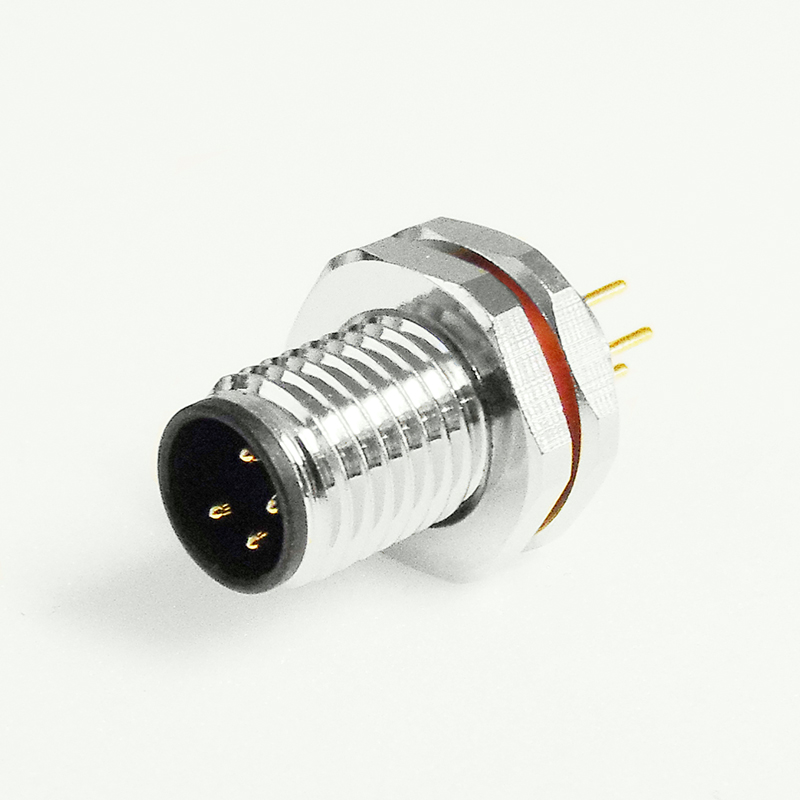

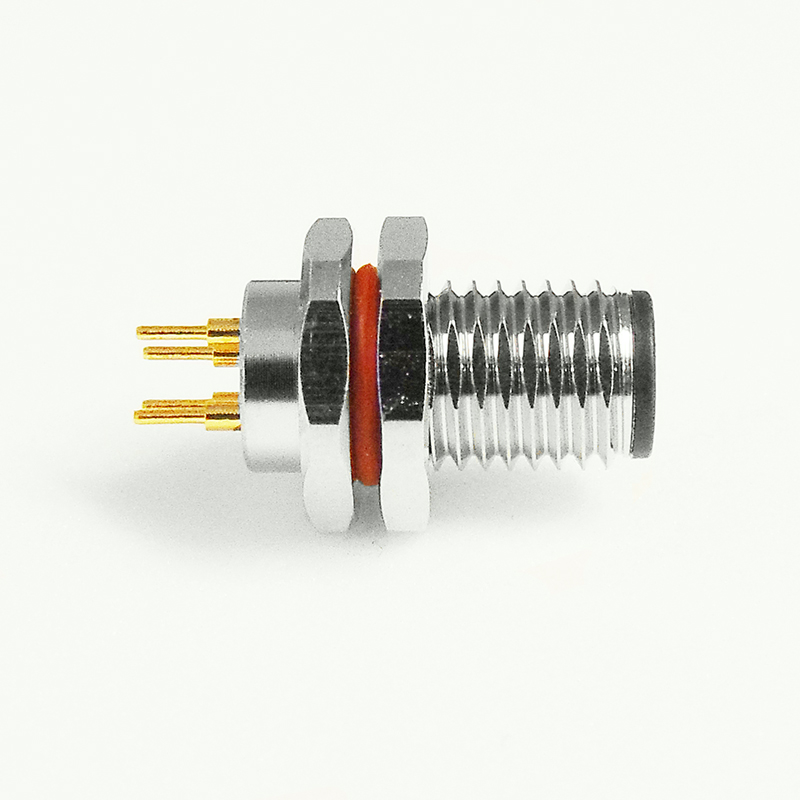

The CC08-XXP-FX-PB is an M8 front fastening panel plug. This circular connector is available in A and B coding, with the option of a 2 to 8 way pin assignment and features straight pins to the rear for mounting on a PCB. This M8 connector is rated to IP67, to provide protection from water or dust ingress into your application. The connector provides power or signal connections in a robust, yet compact format.

Features

Straight pins to mount directly onto a PCB
Available in A and B coding
2 to 8 Pins

Electrical

Withstanding Voltage	500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Current Rating	3A AC/DC (2 to 5 Pins), 1A AC/DC (6 to 8 Pins)
Voltage Rating	60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
