CC08-XXP-FX-PM – M8 Front Fastening Plug (A and B Code)
CC08-XXP-FX-PM – M8 Front Fastening Plug (A and B Code)

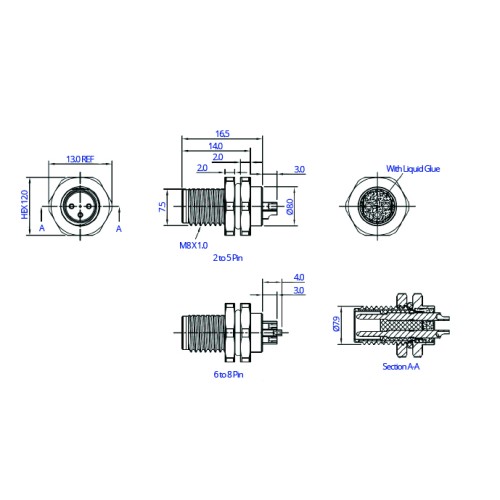

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC08-XXP-FX-PM – M8 Front Fastening Plug (A and B Code)

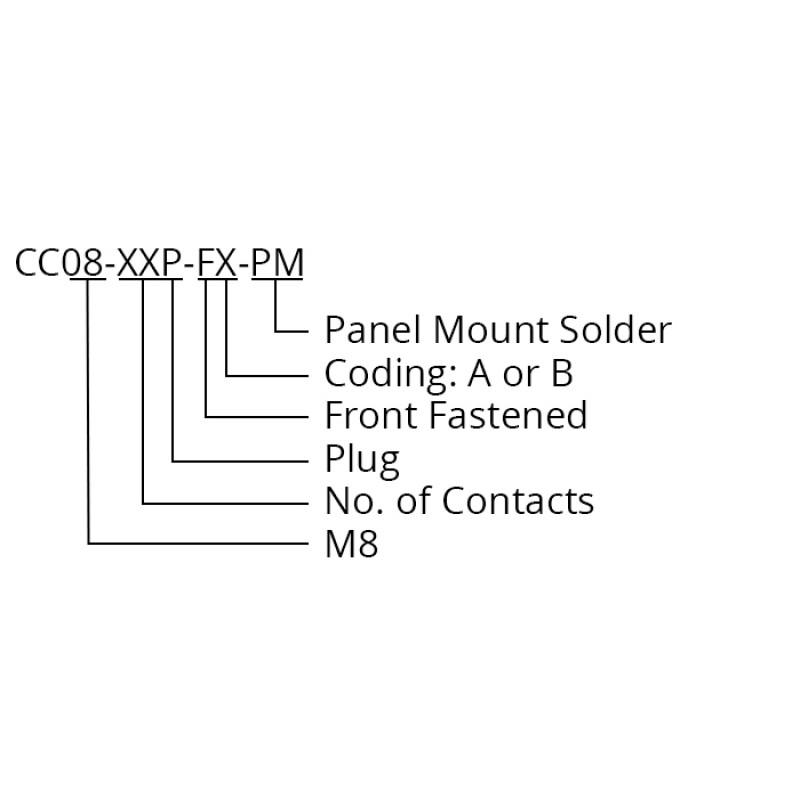

Product Code: CC08-XXP-FX-PM

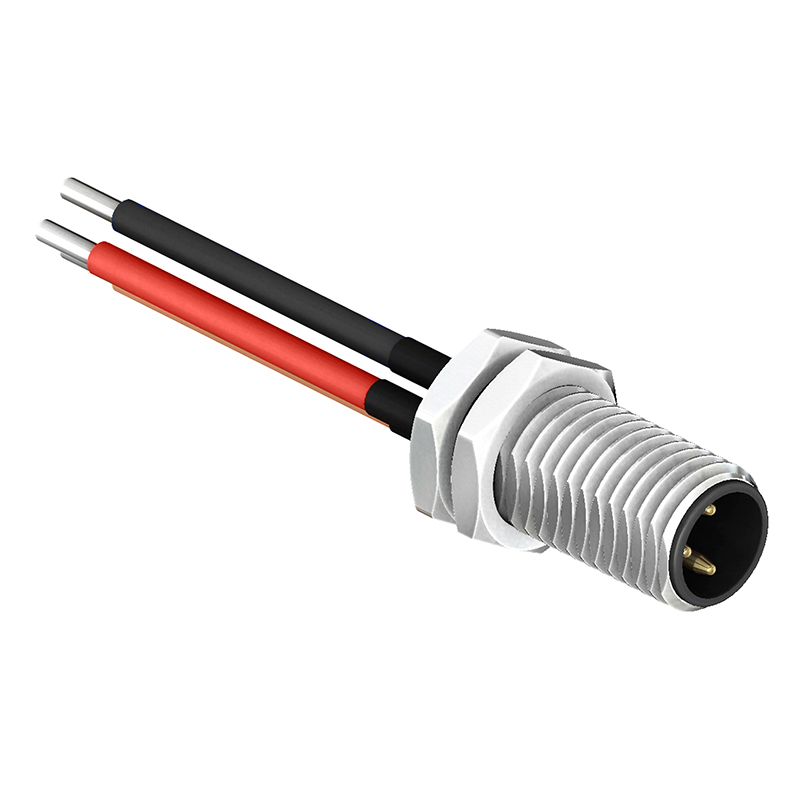

The CC08-XXP-FX-PM is an M8 front fastening panel plug. This circular connector is available in A and B coding, with a 2 to 8 way pin assignment option and features solder buckets to the rear. This M8 connector is rated to IP67, to provide protection from water or dust ingress into your application. The connector can be mounted to wires and is also available as a ready-made cable assembly as SCA08-XXPFX-XXXX and to your required length.

Features

  • Solder buckets for cable mounting
  • Available in A and B coding
  • 2 to 8 Pins
  • Available as a ready made or bespoke cable assembly
Withstanding Voltage 500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating 3A AC/DC (2 to 5 Pins), 1.5A AC/DC (6 to 8 Pins)
Voltage Rating 60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Brass Nickel Plated
Seal Silicone
SNut Brass Nickel Plated
Waterproof Rating IP67
Operating Temperature -40 to 100oC
Mounting Type Cable
Shielded No
Coding A, B

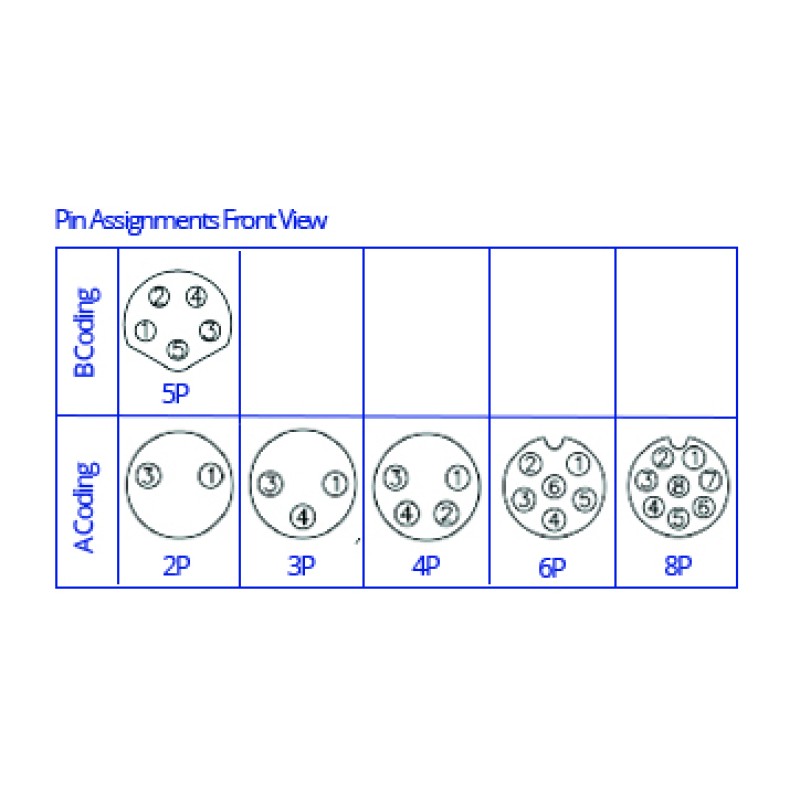

Contact 2, 3, 4, 5, 6, 8
