CC08-XXP-RX-PM – M8 Rear Fastening Plug (A and B Code)
CC08-XXP-RX-PM – M8 Rear Fastening Plug (A and B Code)

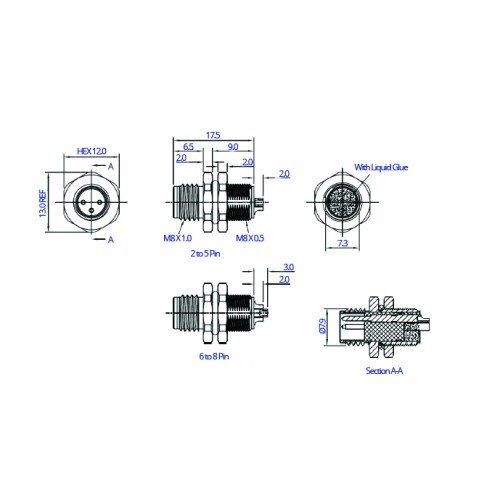

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC08-XXP-RX-PM – M8 Rear Fastening Plug (A and B Code)

Product Code: CC08-XXP-RX-PM

The CC08-XXP-RX-PM is an M8 rear fastening panel plug. This circular connector is available in A and B coding, with a 2 to 8 way pin assignment option and features solder buckets to the rear. This M8 connector is rated to IP67, to provide protection from water or dust ingress into your application. The connector can be mounted to wires and is also available as a ready-made cable assembly as SCA08-XXPRX-XXXX and to your required length.

Features

  • Solder buckets for cable mounting
  • Available in A and B coding
  • 2 to 8 Pins
  • Available as a ready-made or bespoke cable assembly
Withstanding Voltage 500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating 3A AC/DC (2 to 5 Pins), 1.5A AC/DC (6 to 8 Pins)
Voltage Rating 60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Brass Nickel Plated
Nut Brass Nickel Plated
Seal Silicone
Waterproof Rating IP67
Operating Temperature -40 to 85oC
Mounting Type Cable
Shielded No

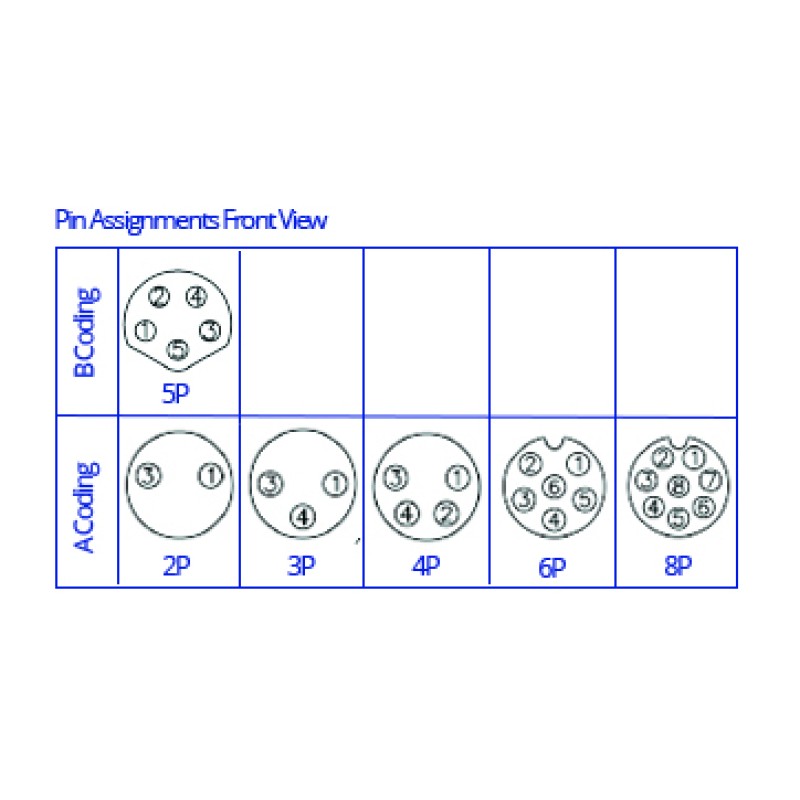

Coding A, B
Contact 2, 3, 4, 5, 6, 8

Related Products

SCA08-XXPRX-XXXX – M8 Rear Fastening Plug Cable Assembly (A or B Code)

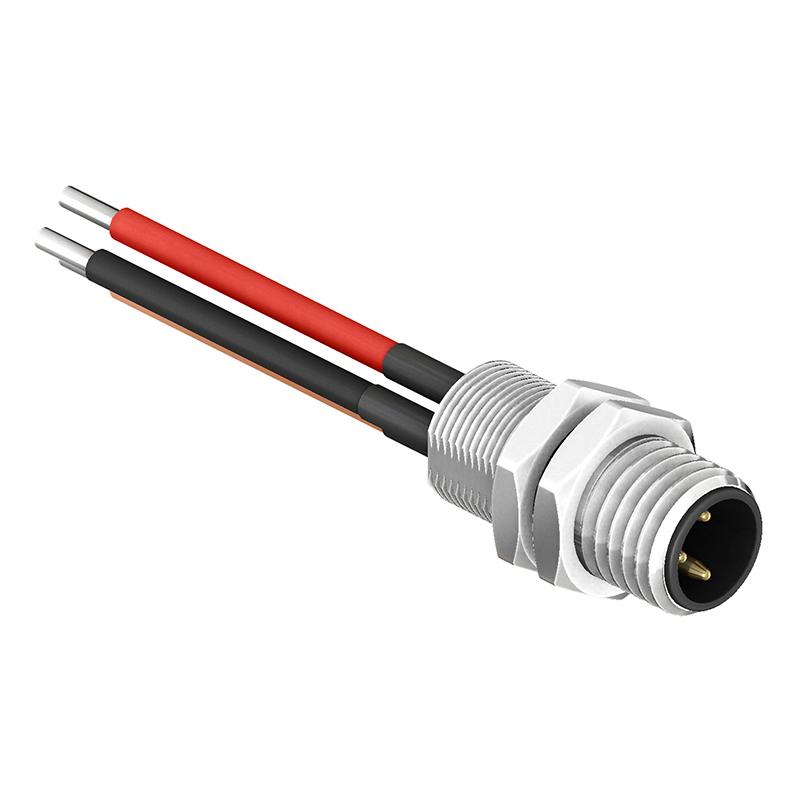

The SCA08-XXPRX-XXXX is an M8 rear fastening panel mounted plug cable assembly with a stub end for completion with a termination of your choice. The M8 plug is available in an A or B coding with 2 to 8 pin options. The cable is available in a standard length of 50 or 300mm, but we can offer a bespoke cable assembly to any length and with any termination.

Features

  • Can be used for Power or signal pins
  • IP67 Waterproof rating
  • Suitable for a wide range of applications
  • Available in standard lengths of 50 or 300mm.
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end.
View product
Request 3D model / data
Request quote / sample
