CC08R-XXP-FX-PBS – M8 Right Angle Front Fastening Shielded Plug (A and B Code)

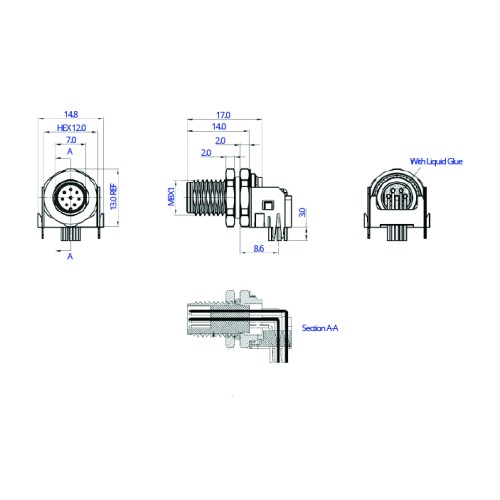

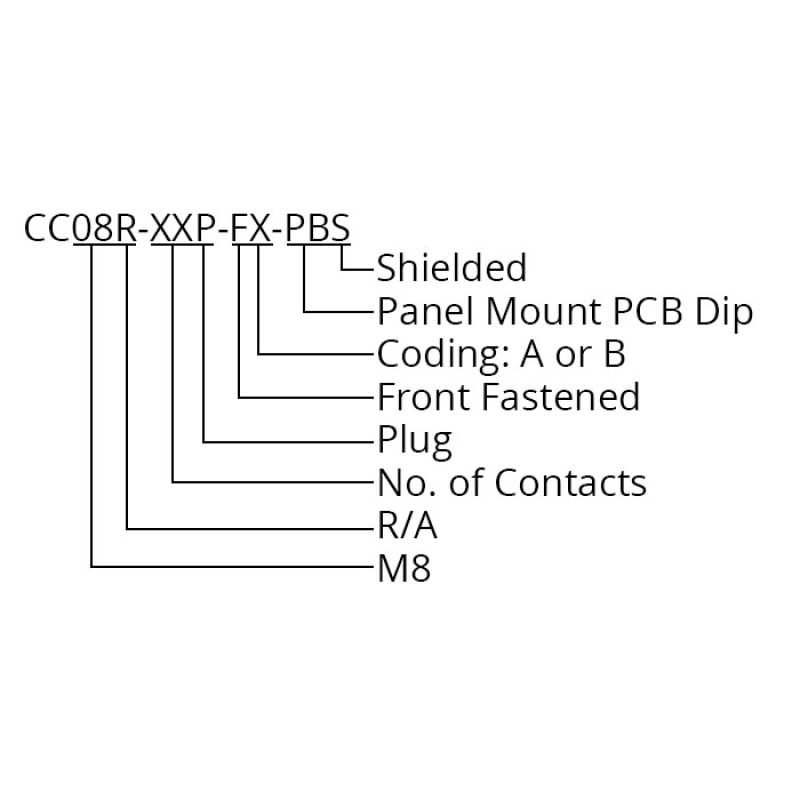

Product Code: CC08R-XXP-FX-PBS

The CC08R-XXP-FX-PBS is an M8 front fastening panel plug with right angle pins for mounting directly on a PCB. This circular connector is available in A and B coding, with the option of a 2 to 8 way pin assignment with shielding. The M8 is the best connector type for industrial sensors, due to its robust and secure format coupled with the waterproof rating of IP67.

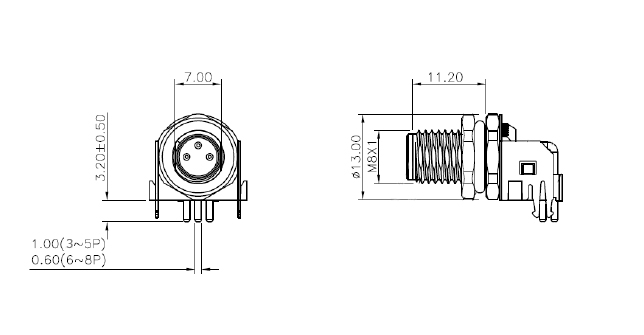

Features

Right angle for Direct mounting to PCB
Available in A and B coding
2 to 8 Pins
Connector shielding pin

Electrical

Withstanding Voltage	500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Contact Resistance	≤10mΩ
Insulation Resistance	≥100MΩ
Current Rating	3A AC/DC (2 to 5 Pins), 1.5A AC/DC (6 to 8 Pins)
Voltage Rating	60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
