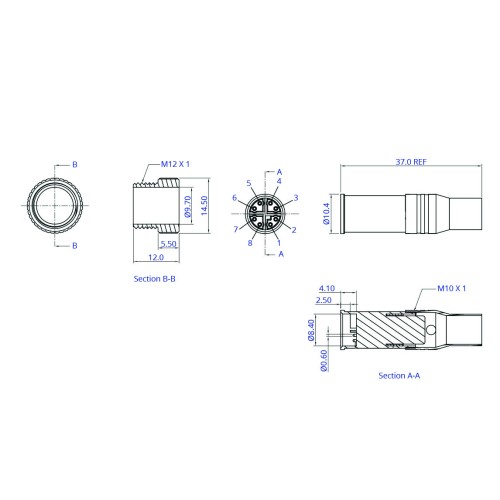

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC12-08P-X-MMS – M12 Cable Mounted Plug (X Code)

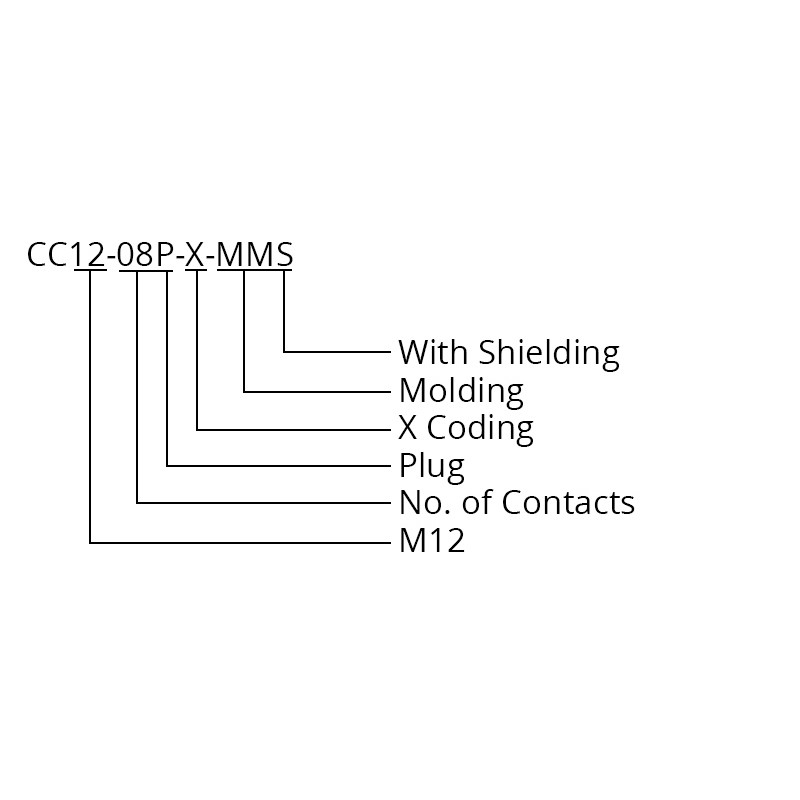

Product Code: CC12-08P-X-MMS

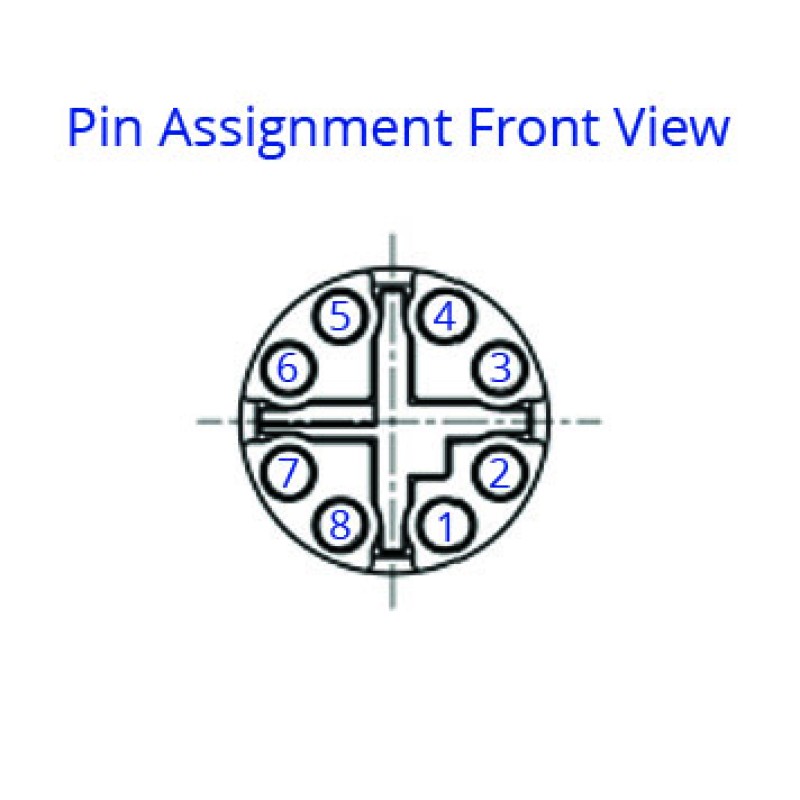

The CC12-08P-X-MMS is an M12 circular moulded plug connector which has 8 pins in an X coding. The connector has a shielding pin and features solder terminals to the rear for cable mounting. The connector can be sold as a stand alone connector or as part of a standard cable assembly with overmoulding (part number SCM12-08PXS-XXXXA) or a bespoke cable assembly with mixed termination styles to the other end.

Features

  • Solder terminals
  • Available in X coding
  • 8 Pins
  • Offering speeds up to 10Gbps
Withstanding Voltage 500V AC/Minute
Contact Resistance ≤15mΩ
Insulation Resistance ≥100MΩ
Current Rating 0.5A
Voltage Rating 60V DC, 50V AC
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Nut Brass Nickel Plated
Shell Zinc Alloy Nickel Plated
Shielded Brass Nickel Plated
Waterproof Rating IP67
Operating Temperature -25 to 85oC
Mounting Type Cable
Coding X
Contact 8
Shielded Yes
