CC12-08S-FX-PBSX – M12 Front Fastening Shielded Socket (X Code)

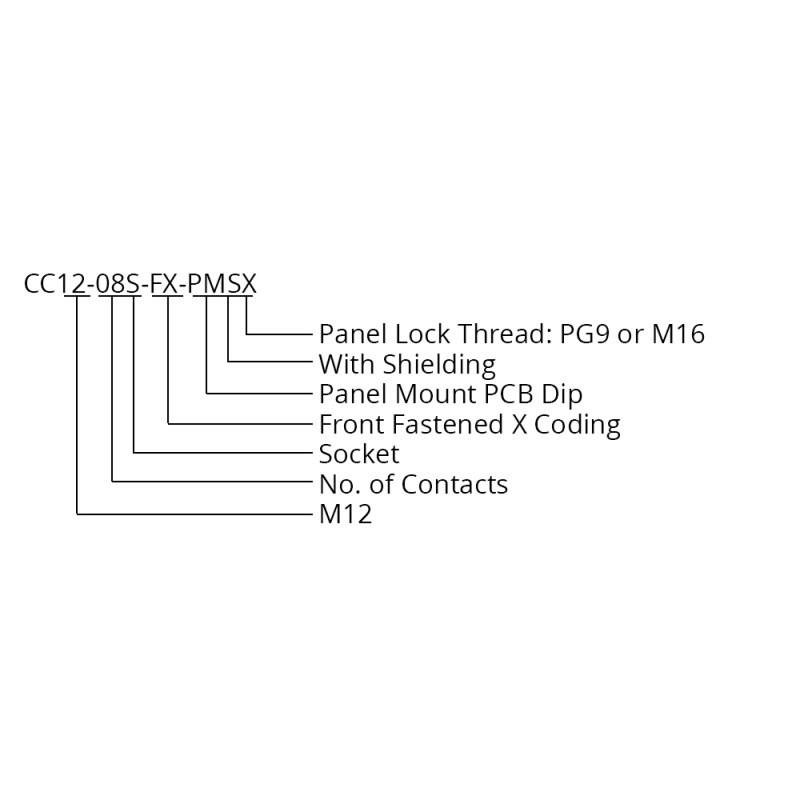

Product Code: CC12-08S-FX-PBSX

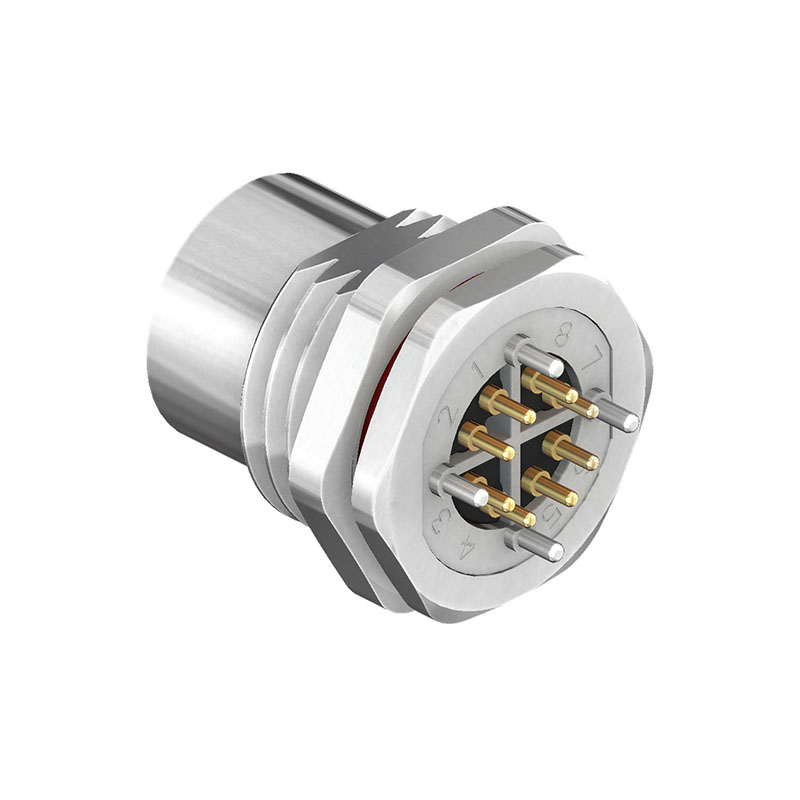

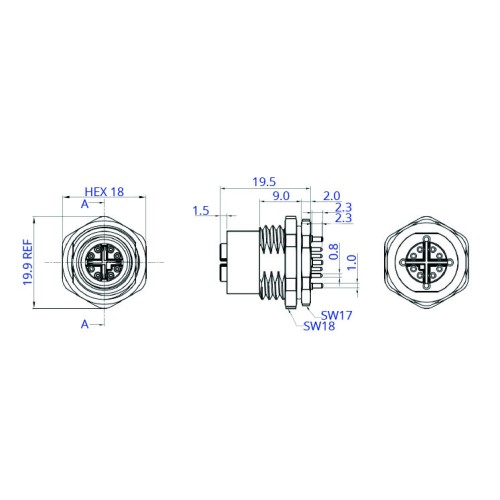

The CC12-08S-FX-PBSX is an M12 circular socket connector which is available with 8 pins and a shielding pin in an X coding format. The connector features straight pins to the rear for mounting directly to a PCB. The panel lock thread for the connector can also be in a PG9 or M16 sizing. The M12 connectors are designed for use in industrial applications and feature a small and robust design which has a waterproof rating to IP67, which protects your equipment from entry of water or dust into your system.

Features

Straight pins to mount directly onto a PCB
Available in X coding
Shielding Pin

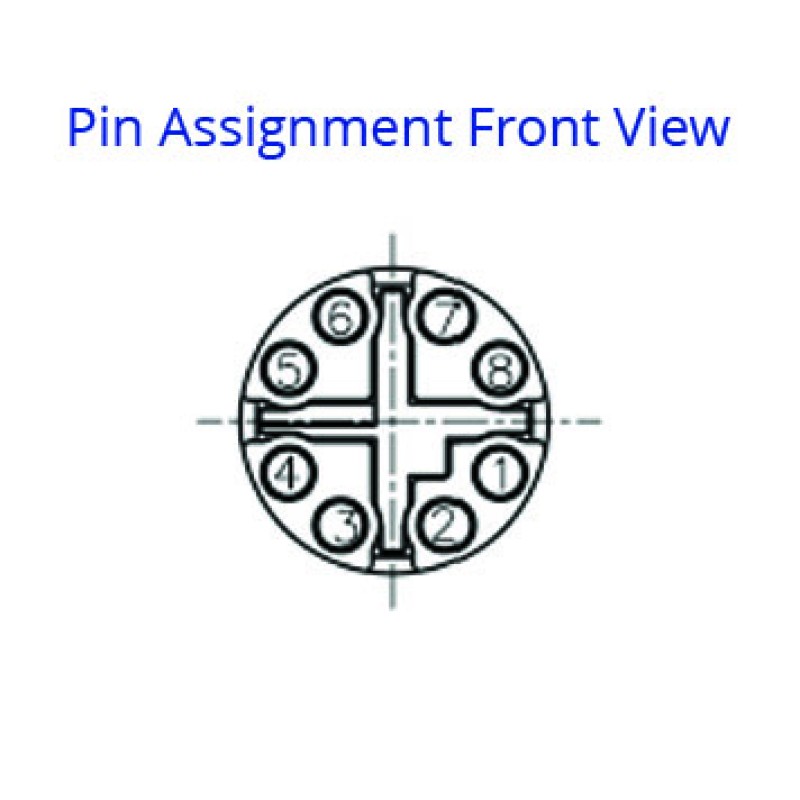

8 Pins
Offering speeds up to 10Gbps

Electrical

Withstanding Voltage	500V AC/Minute
Contact Resistance	≤15mΩ
Insulation Resistance	≥100MΩ
Current Rating	0.5A
Voltage Rating	60V DC, 30V AC

Material

Shielded	Zinc Alloy Nickel Plated
Insulators	UL94V-0 Black
Contacts	Brass Gold Plated
Connector Body	Zinc Alloy Nickel Plated
Seal	Silicone
Nut	P9 or M16 Brass Nickel Plated

Environmental

Waterproof Rating	IP67
Operating Temperature	-25 to 85oC

General Information

Mounting Type	PCB
Coding	X
Contact	8
Shielded	Yes
