CC12-XXP-FA07-PBX – M12 Front Fastening Die Cast Plug (A Code)

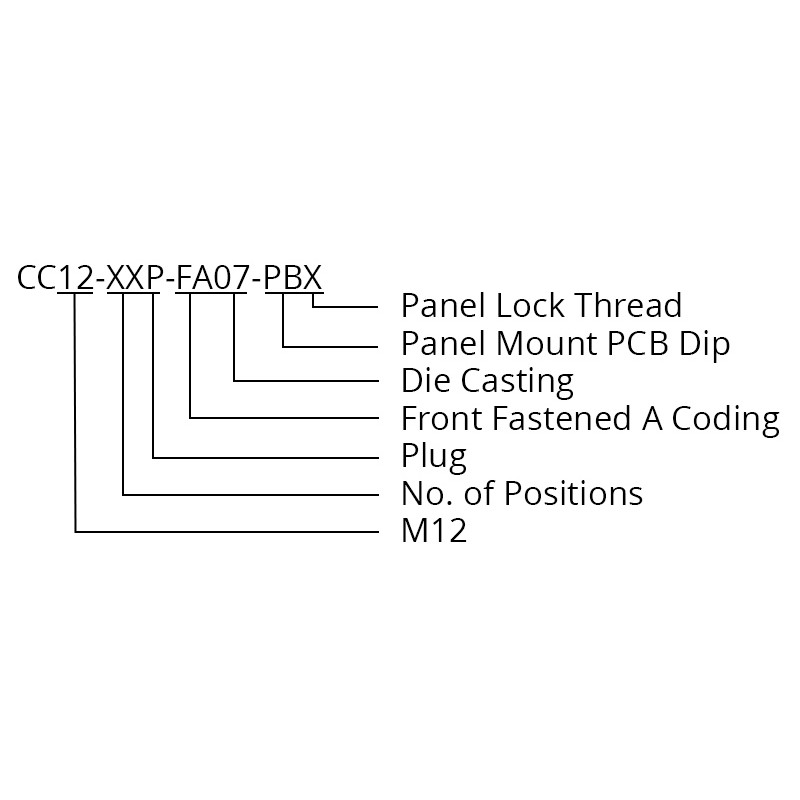

Product Code: CC12-XXP-FA07-PBX

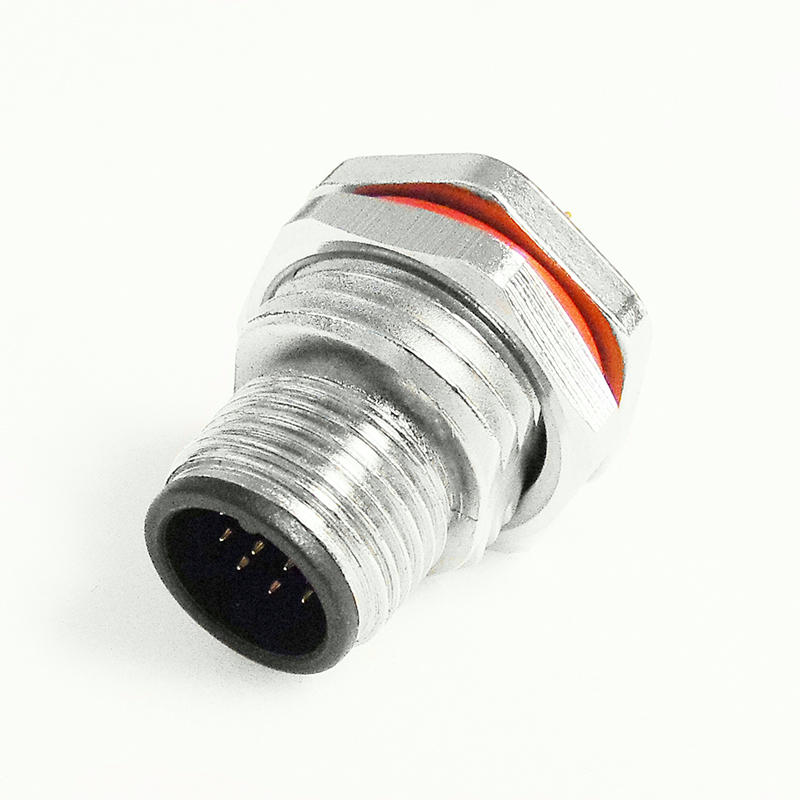

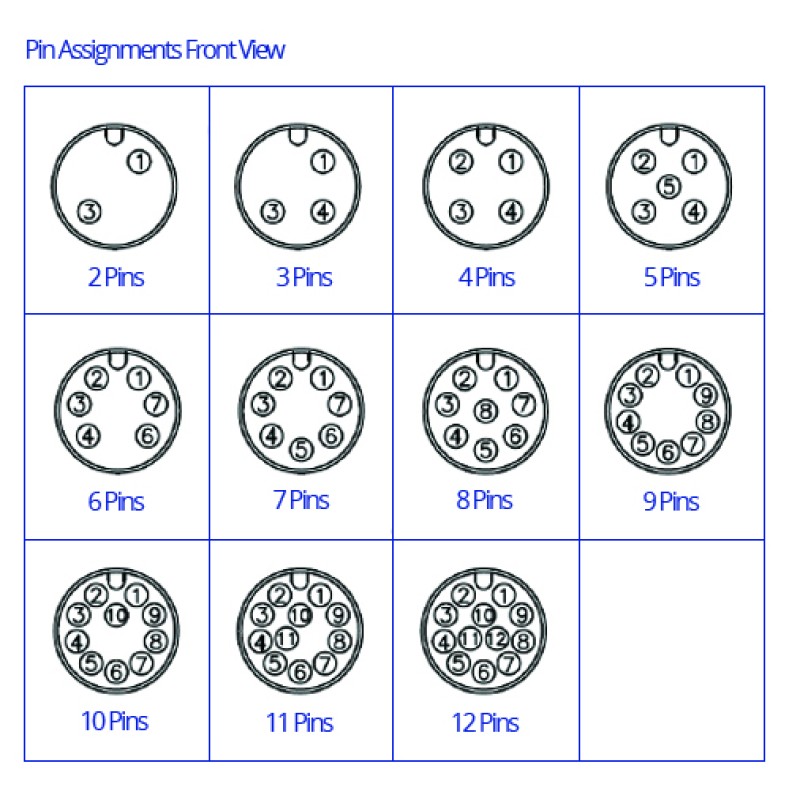

The CC12-XXP-FA07-PBX is an M12 circular plug connector which is available with 2 to 12 pins. The connector is an A coding and is supplied with either a PG9 or M16 lock thread nut. The connector features straight pins to the rear for mounting directly to a PCB. With an IP67 waterproof rating, these small circular connectors can be used for sensors and power connections as well as in PROFINET, field bus, CAN bus and DeviceNet applications.

Features

Straight pins to mount directly onto a PCB
Available in D coding
2 to 5 Pins

Electrical

Withstanding Voltage	500V AC/Minute
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Current Rating	4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins)
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins)
