CC12-XXP-FD07-PBX – M12 Front Fastening Die Cast Plug (D Code)

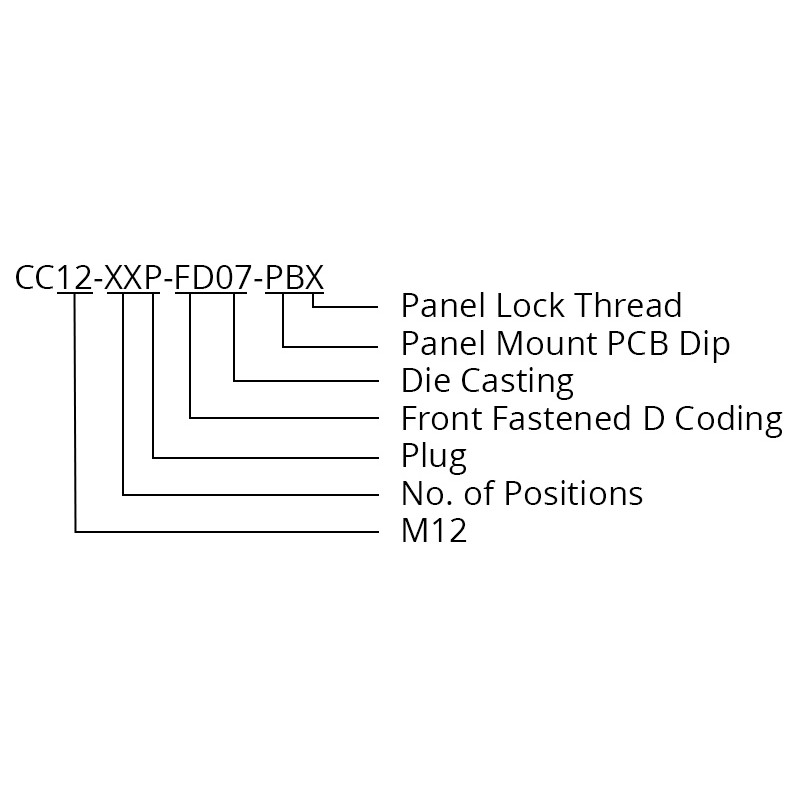

Product Code: CC12-XXP-FD07-PBX

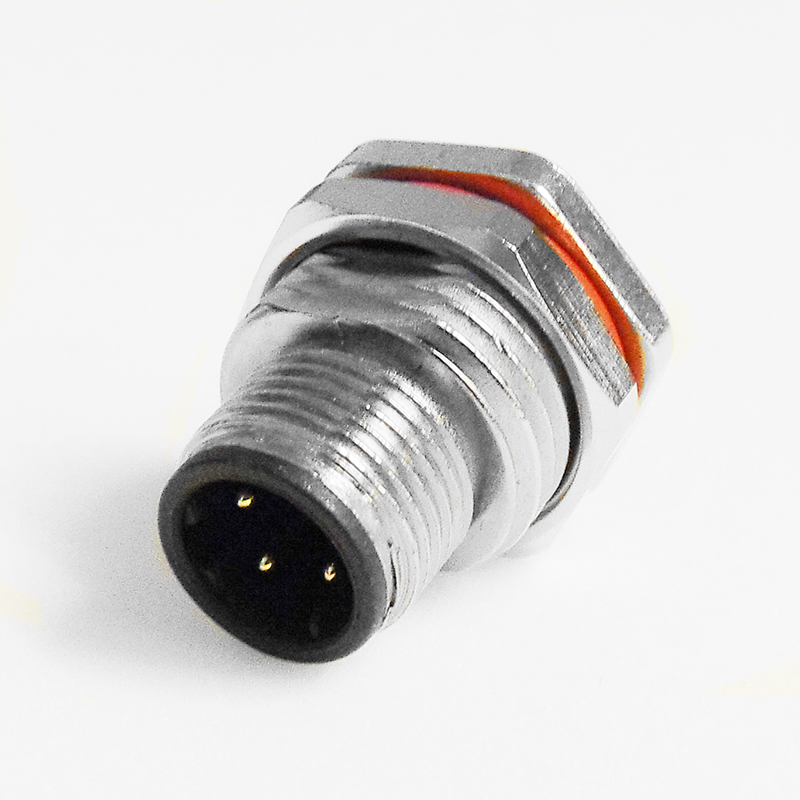

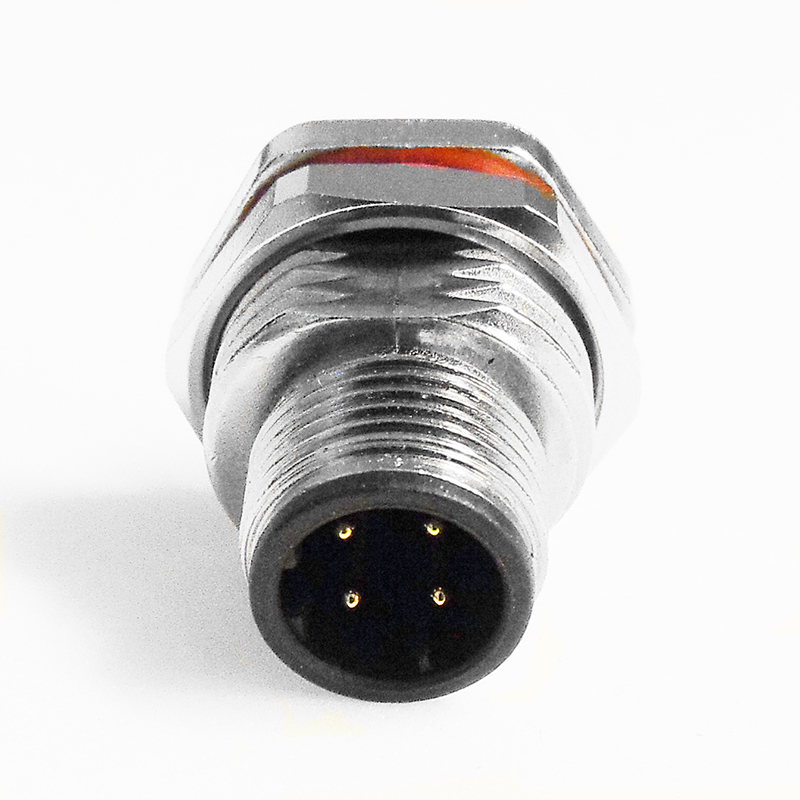

The CC12-XXP-FD07-PBX is an M12 circular plug connector which is available with 2 to 5 pin options in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. The M12 connectors are designed for use in industrial applications and feature a small and robust design which has a waterproof rating to IP67, which protects your equipment from entry of water or dust into your system.

Features

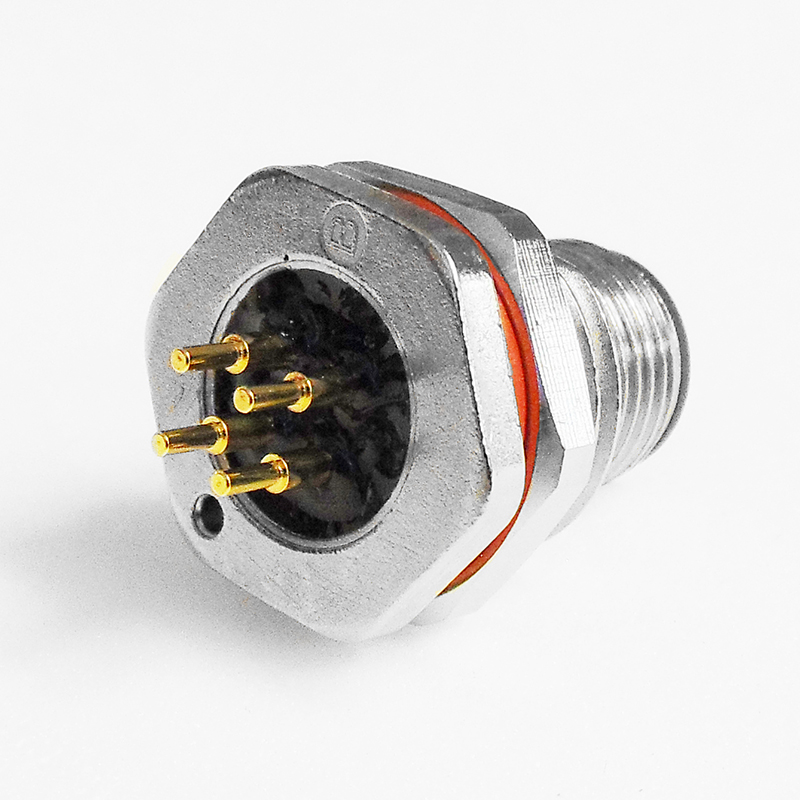

Straight pins to mount directly onto a PCB
Available in D coding
2 to 5 Pins

Electrical

Withstanding Voltage	500V AC/Minute (2 to 5 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Current Rating	4A AC/DC
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins)
