CC12-XXP-RX-PMX – M12 Rear Fastening Plug (A and D Code)
CC12-XXP-RX-PMX – M12 Rear Fastening Plug (A and D Code)
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC12-XXP-RX-PMX – M12 Rear Fastening Plug (A and D Code)

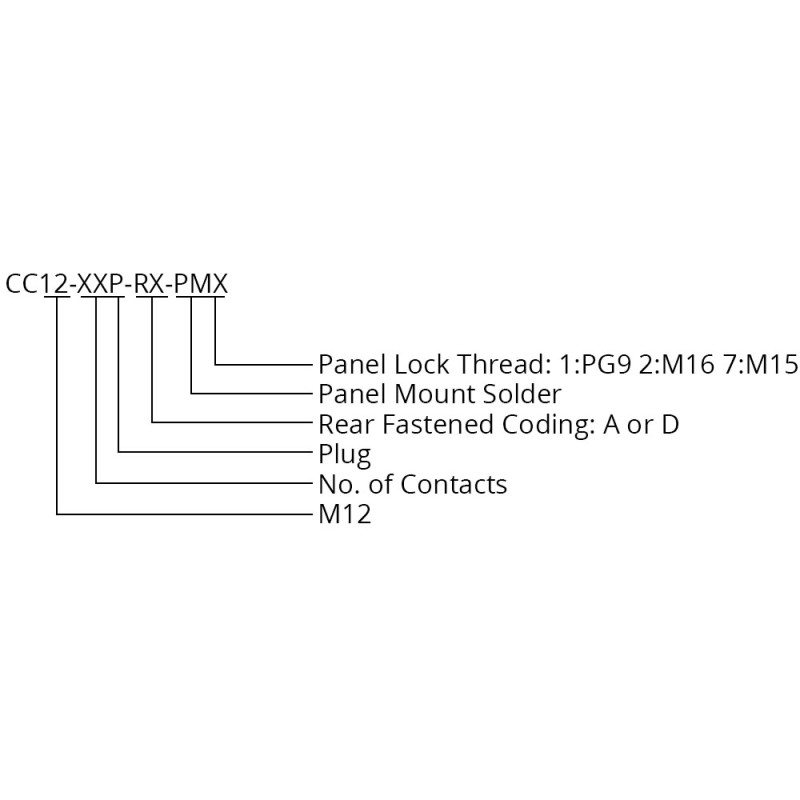

Product Code: CC12-XXP-RX-PMX

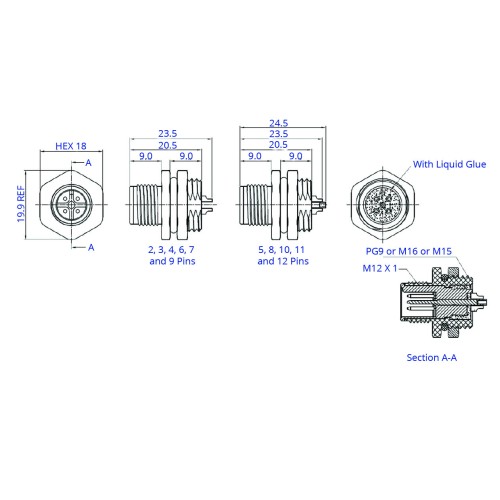

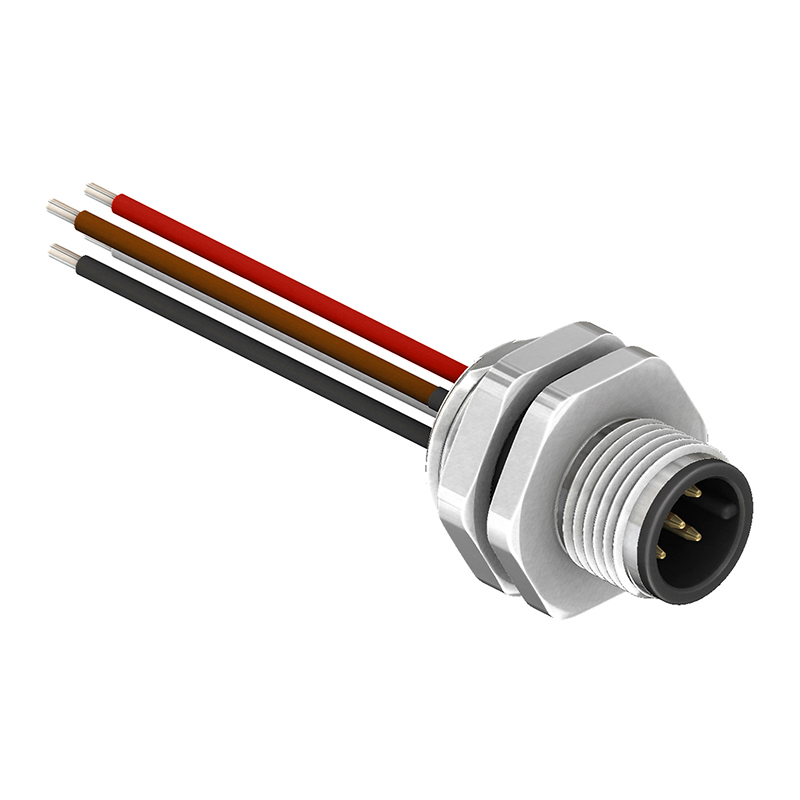

The CC12-XXP-RX-PMX is a M12 circular plug connector which is available with 2 to 12 pin options in an A and D coding and has a rear panel fastening. The connector features solder buckets to the rear for cable mounting. The connector is available as a stand alone unit or as part of a standard ready made cable assembly as part number SCA12-XXPRXX-XXXX or a bespoke cable assembly with other terminations completing the other end. The connector has an IP67 waterproof rating.

Features

  • Solder buckets for cable mounting
  • Rear Fastening

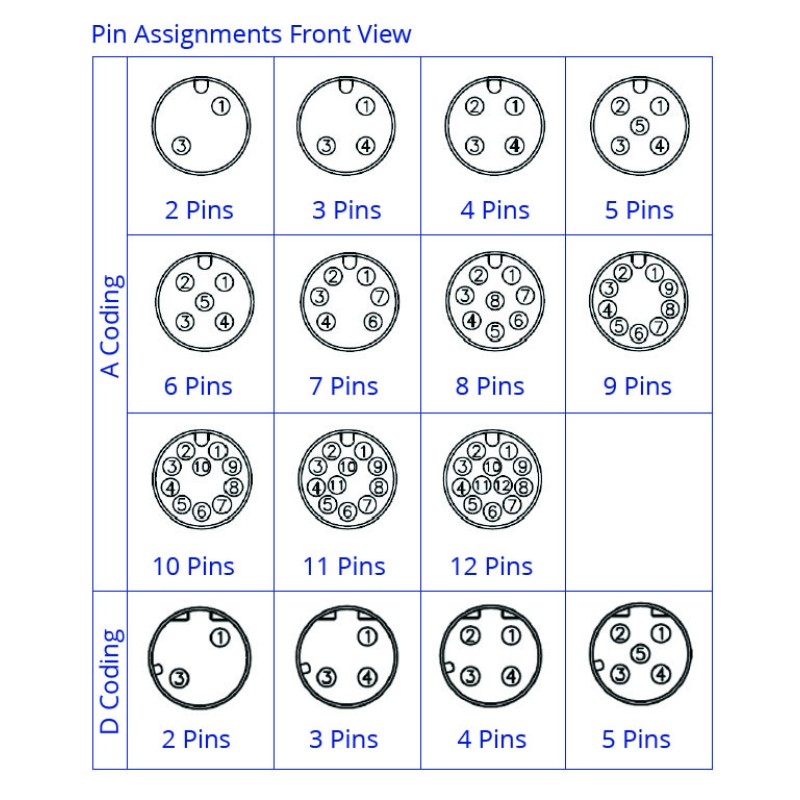

  • Available in A  and D coding
  • 2 to 12 Pins
Withstanding Voltage 500V AC/Minute
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating 4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins)
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins)
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Brass Nickel Plated
Seal Silicone
Waterproof Rating IP67
Operating Temperature -40 to 100oC
Mounting Type Cable
Coding A, D
Contact 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
