CC12-XXP-X-AE4 – M12 Cable Mounted Plug (A.B and D Code)

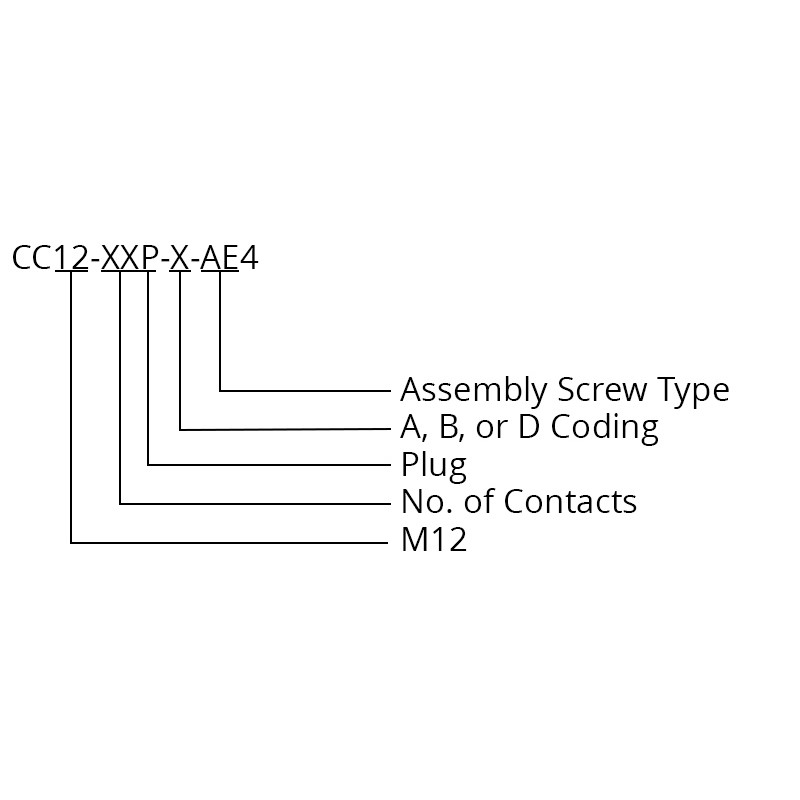

Product Code: CC12-XXP-X-AE4

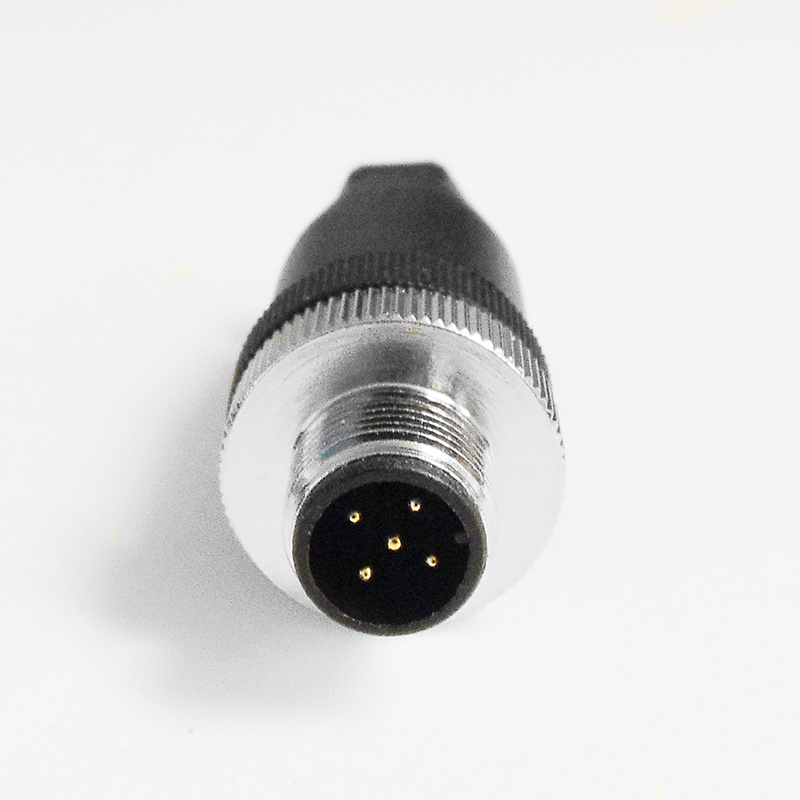

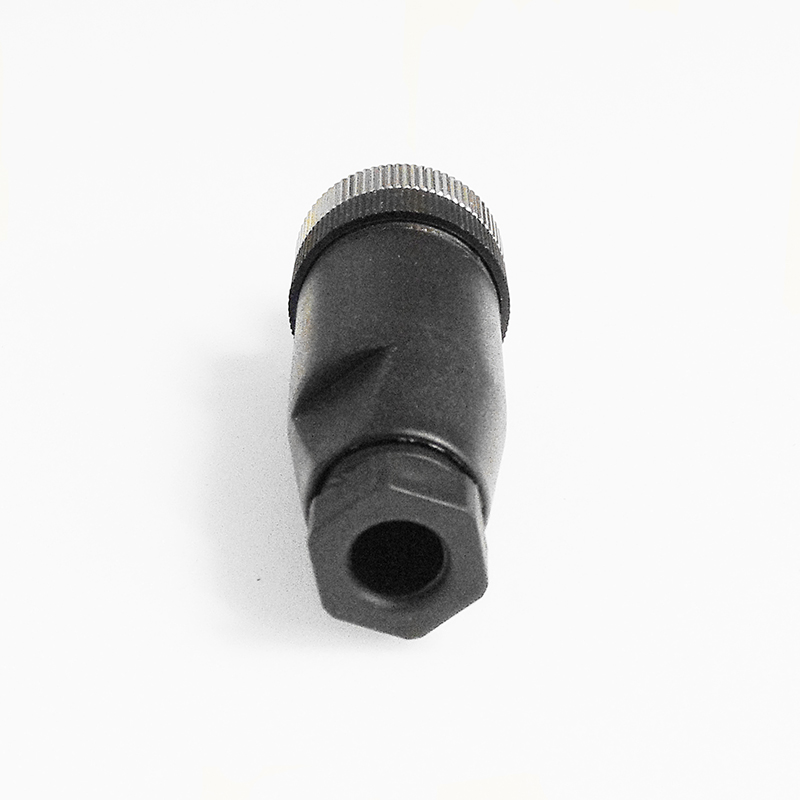

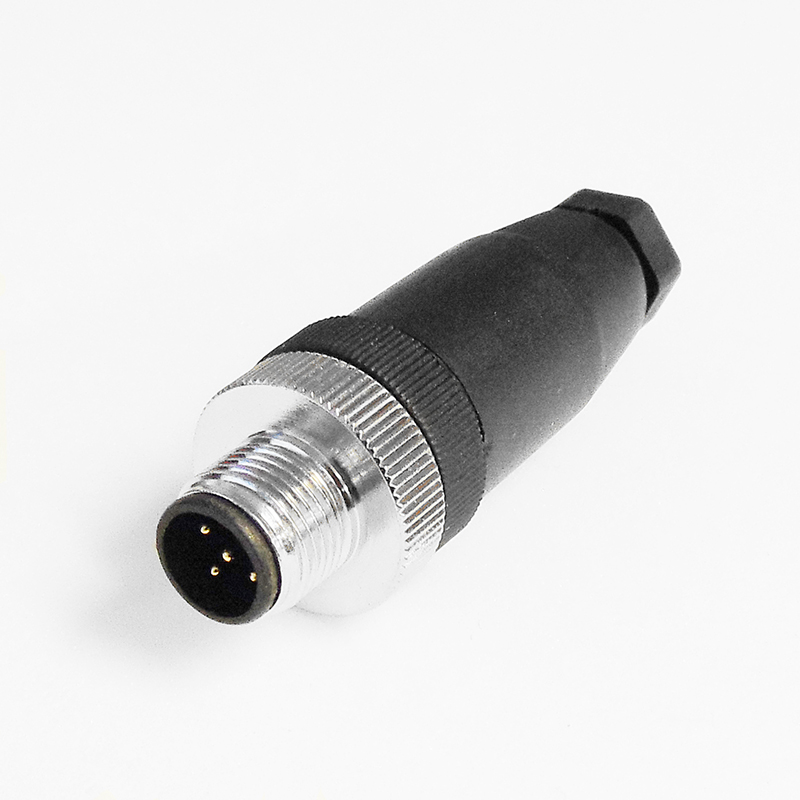

The CC12-XXP-X-AE4 is a cable mounted M12 plug connector. It is available in A, B and D Coding and has a screw termination style for easy connection onto a cable of between 4 and 6mm in diameter. The connector can be purchased as a loose connector or as part of a bespoke cable assembly. This connector can be used for power or signal connections and is rated as IP67, so can be used in damp or dusty environments whilst assuring protection from the elements for your equipment.

Features

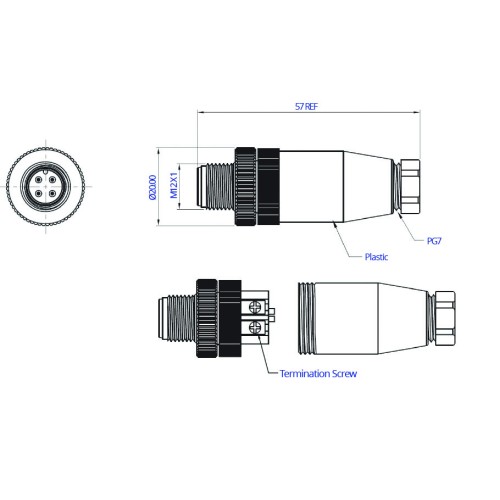

Cable mounting for cable between 4 and 6mm in diameter
Available in A, B and D coding

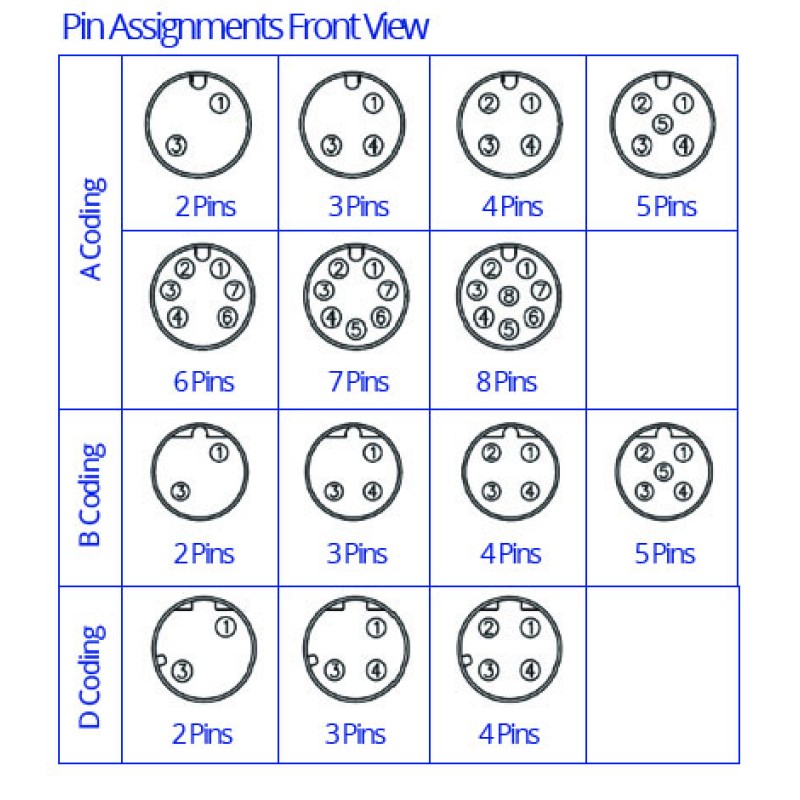

2 to 8 Pins

Electrical

Withstanding Voltage	500V AC/Minute
Contact Resistance	≤10mΩ
Insulation Resistance	≥100MΩ
Current Rating	4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins)
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 8 Pins)
