CC12-XXP-X-AS – M12 Cable Mounted Plug (A Code)

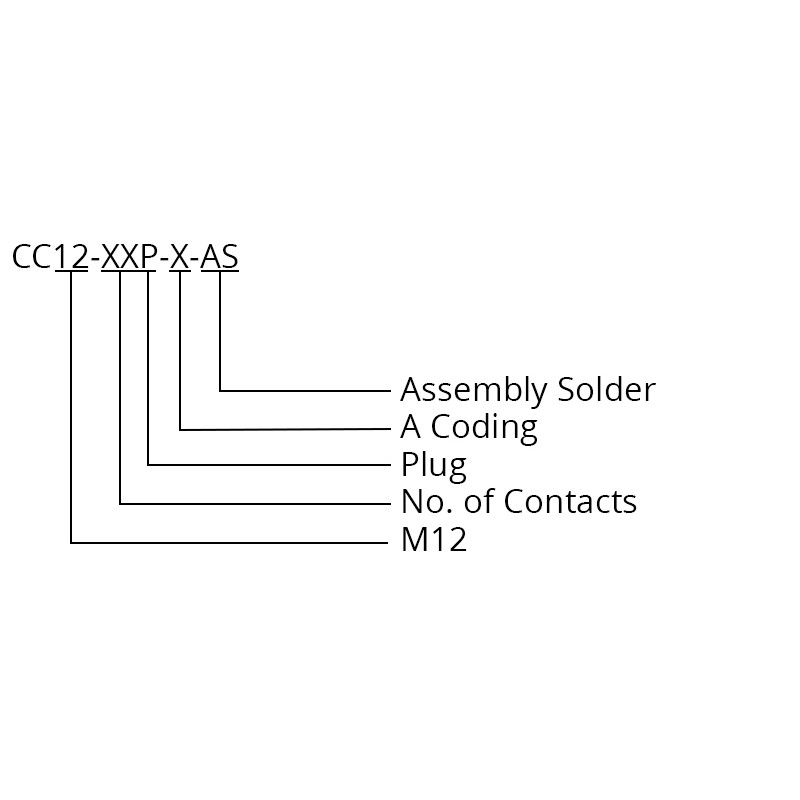

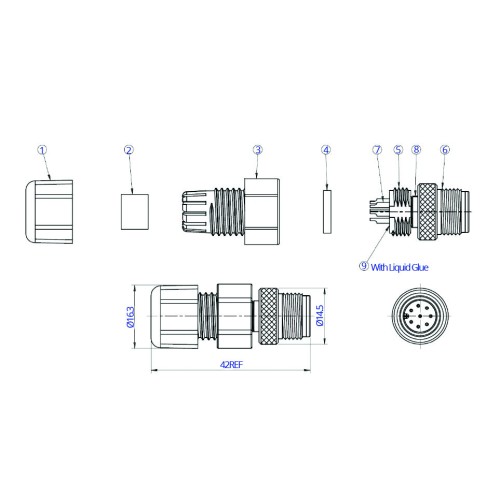

Product Code: CC12-XXP-X-AS

The CC12-XXP-A-AS is a cable-mounted M12 plug connector. It is available in an A Coding and has a solder bucket termination style for connection onto a cable of between 4 and 6.5mm in diameter. The connector can be purchased as a loose connector or as part of a bespoke cable assembly. With a waterproof rating of IP67, you can be sure of a seal against water or dust into your connection. The connectors are a robust solution for any situation.

Features

Cable mounting for cable between 4 and 6.5mm in diameter
Available in A coding

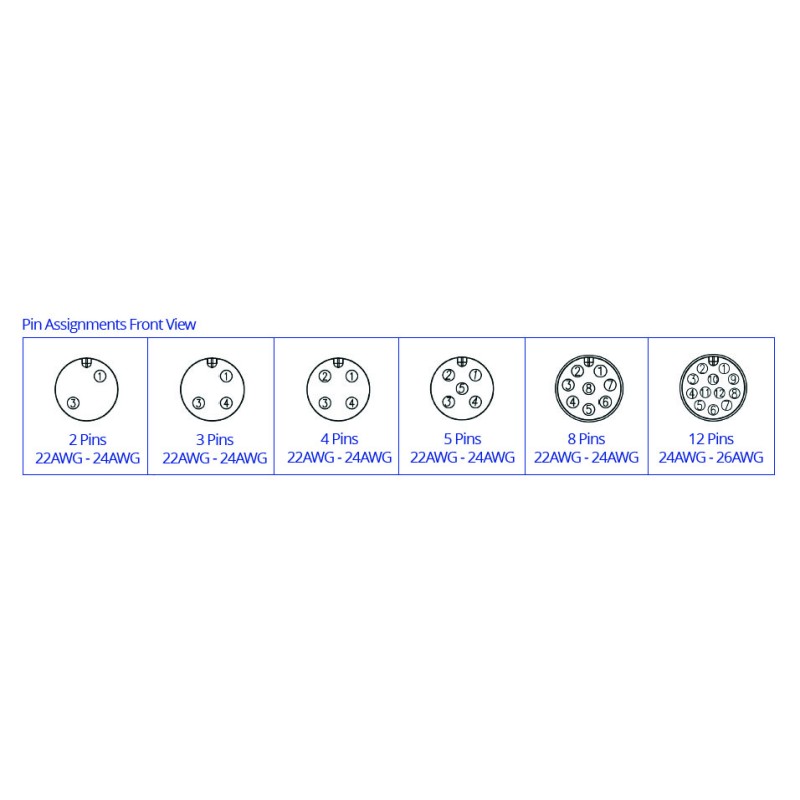

2 to 5, 8 and 12 Pins

Electrical

Withstanding Voltage	500V AC/Minute
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Current Rating	4A AC/DC (2 to 5 Pins), 2A AC/DC (8 Pins), 1.5A AC/DC (12 Pins)
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (8 and 12 Pins)

Material

Insulators	Nylon + Glass Fibre
Contacts	Brass Gold Plated
Gasket	Silicone
Seal	EDPM Black
Sealing Nut	PPE Black
Screw Nut	Brass Nickel Plated, Nylon +Glass Fibre
Clamp Ring	PPE Black

Environmental

Waterproof Rating	IP67
Operating Temperature	-40 to 100oC

General Information

Mounting Type	Cable
Coding	A
Contact	2, 3, 4, 5, 8, 12
Shielded	No
