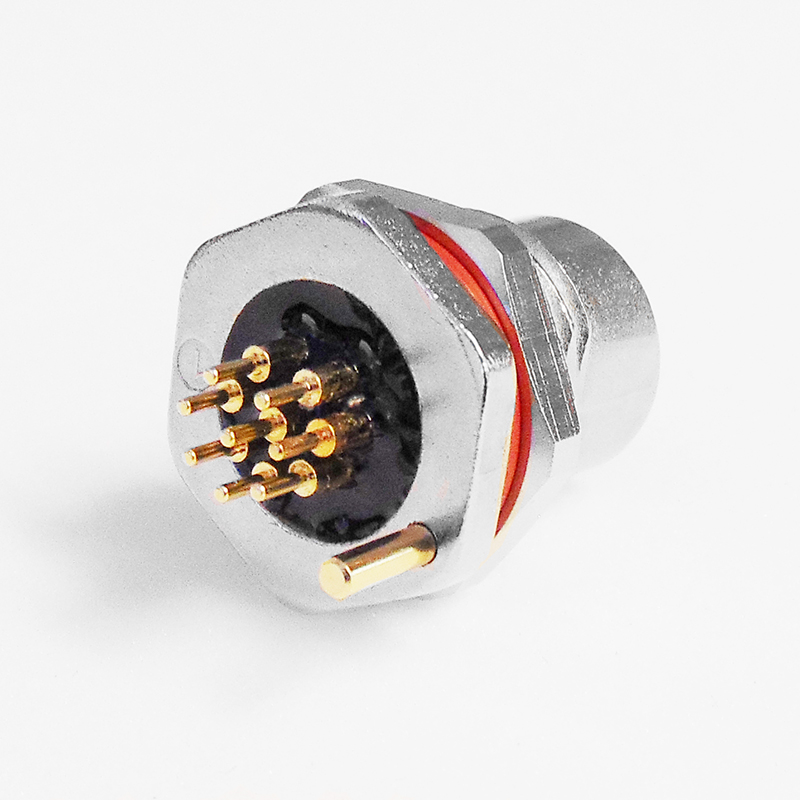

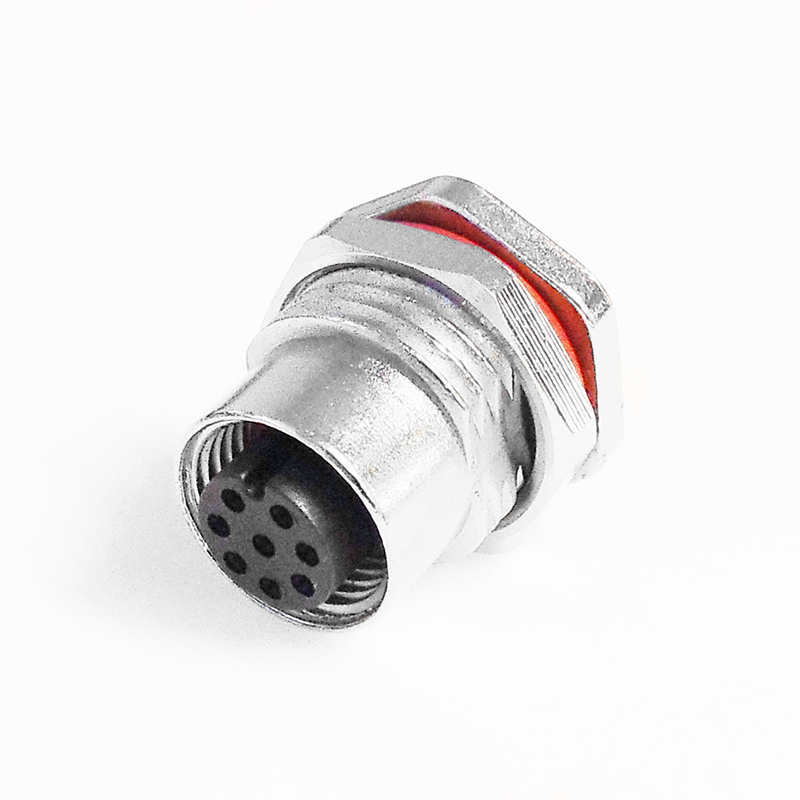

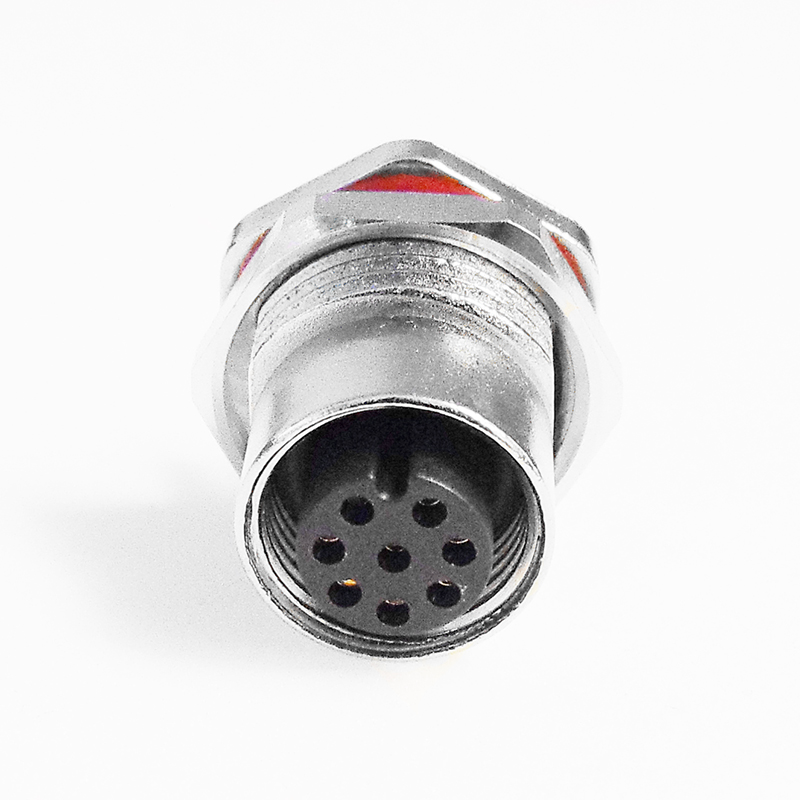

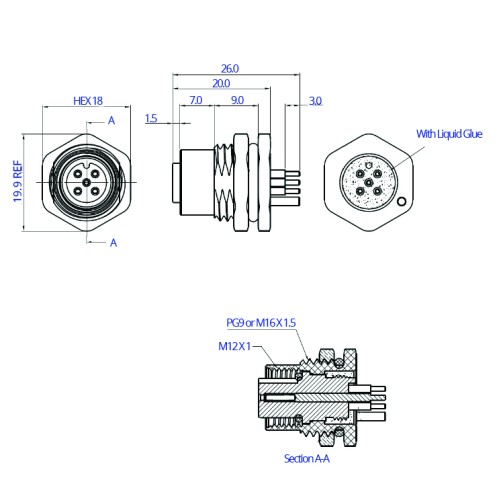

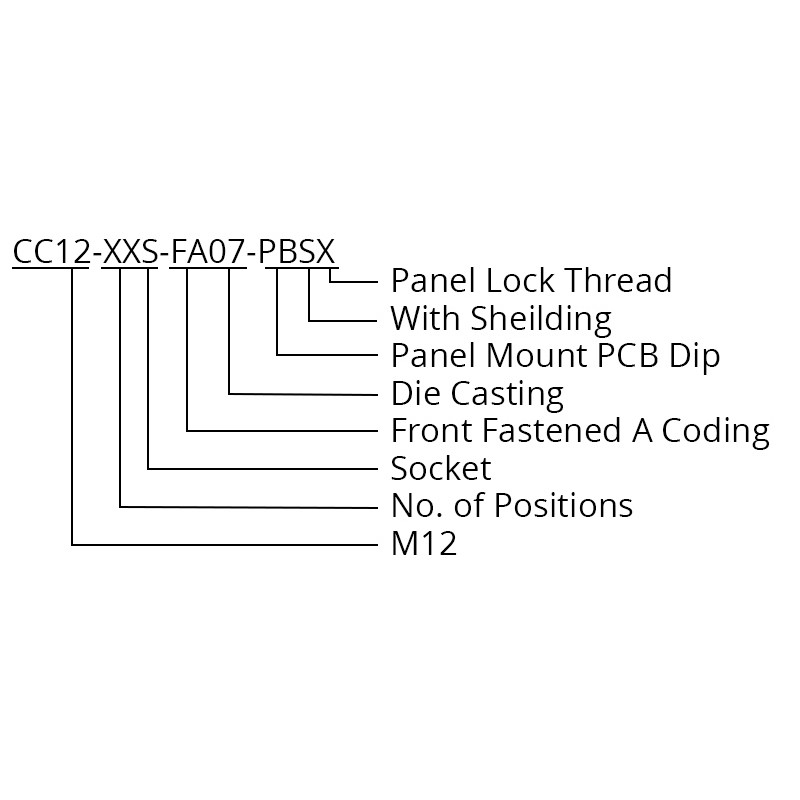

The CC12-XXS-FA07-PBSX is an M12 circular connector which is available with 2 to 12 pins and shielding pin in A coding and either a PG9 or M16 lock thread nut. The connector features straight pins to the rear for mounting directly to a PCB. These connectors can be used in harsh environments and have an IP67 waterproof rating. The M12 size lends itself as a solution for power or signal solutions for industrial or transportation applications.
Features
| Withstanding Voltage | 500V AC/Minute |
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | ≥100MΩ |
| Current Rating | 4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins) |
| Voltage Rating | 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins) |
| Insulators | UL94V-0 Black |
| Contacts | Brass Gold Plated |
| Connector Body | Zinc Alloy Nickel Plated |
| Seal | Silicone |
| Nut | P9 or M16 Brass Nickel Plated |
| Waterproof Rating | IP67 |
| Operating Temperature | -40 to 100oC |
| Mounting Type | PCB |
| Coding | A |
| Contact | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Shielded | Yes |
