CC12-XXS-FD07-PBSX – M12 Front Fastening Shielded Die Cast Socket (D Code)

Product Code: CC12-XXS-FD07-PBSX

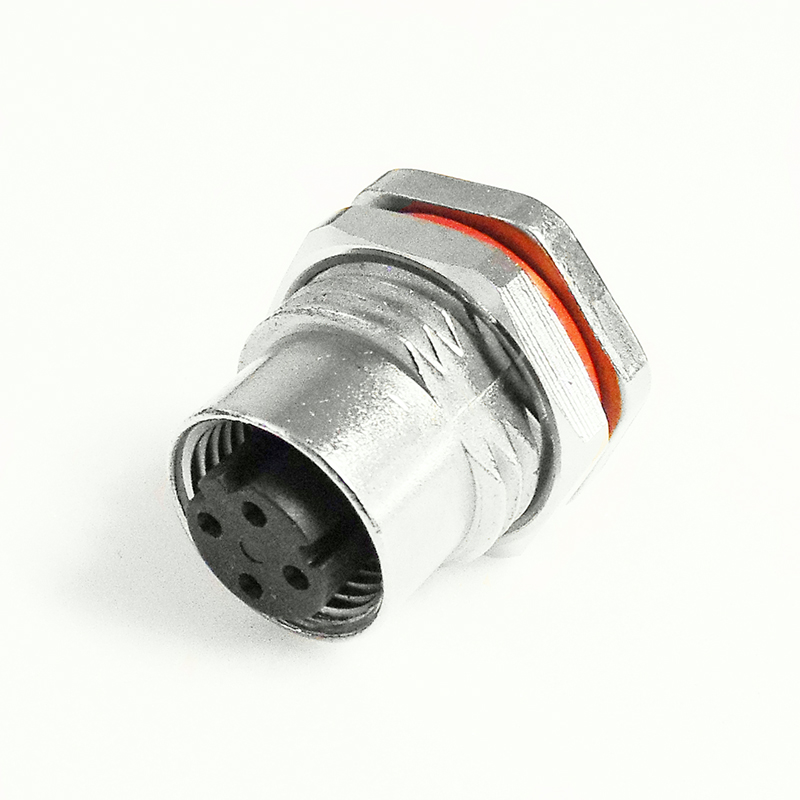

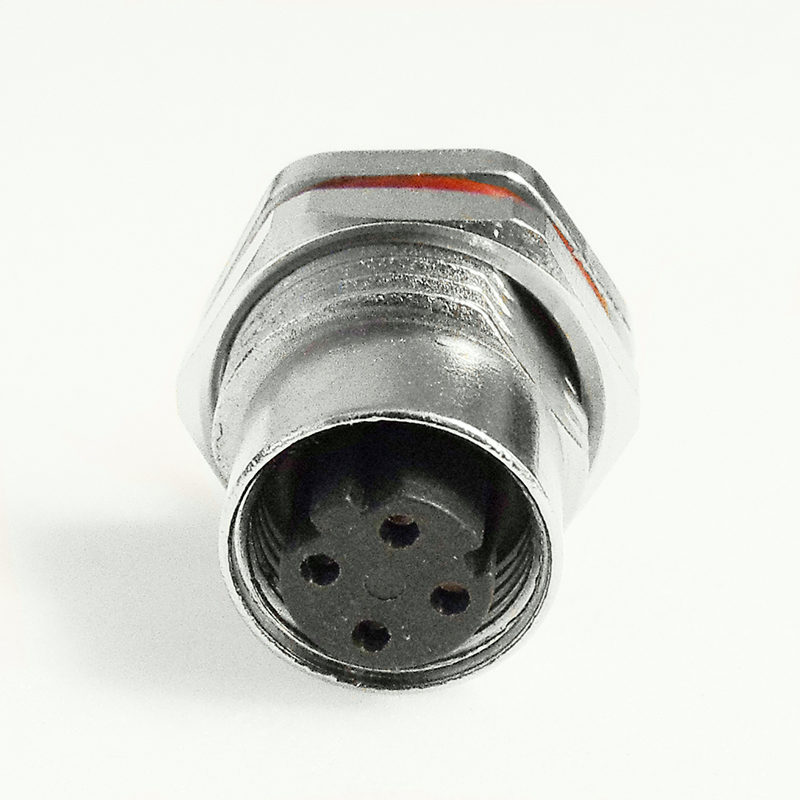

The CC12-XXS-FD07-PBSX is an M12 circular connector which is available with 2 to 5 pins and a shielding pin in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. These connectors can be used in harsh environments and have an IP67 waterproof rating. The M12 size lends itself as a solution for power or signal solution for factory automation, agricultural applications, robotics and transportation.

Features

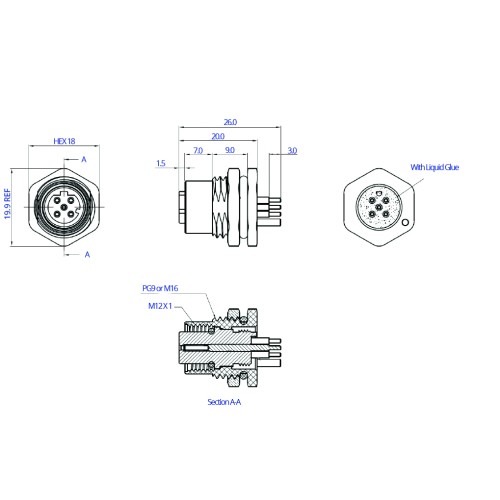

Straight pins to mount directly onto a PCB
Shielding Pin
Available in D coding

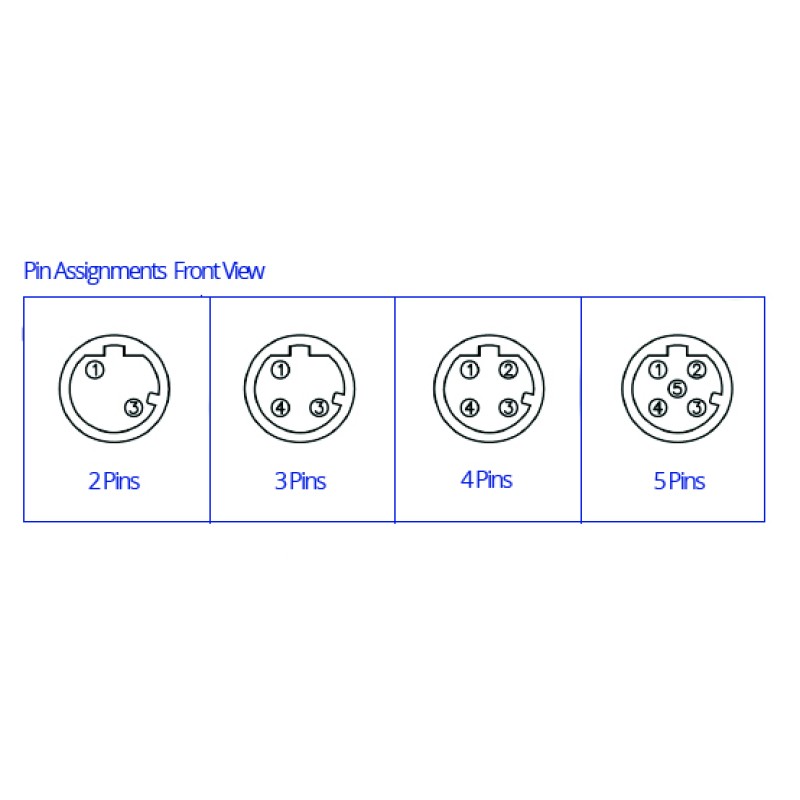

2 to 5 Pins
Offering speeds up to 10Gbps

Electrical

Withstanding Voltage	500V AC/Minute (2 to 5 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Current Rating	4A AC/DC
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins)
