CC12-XXS-FD07-PBX – M12 Front Fastening Die Cast Socket (D Code)

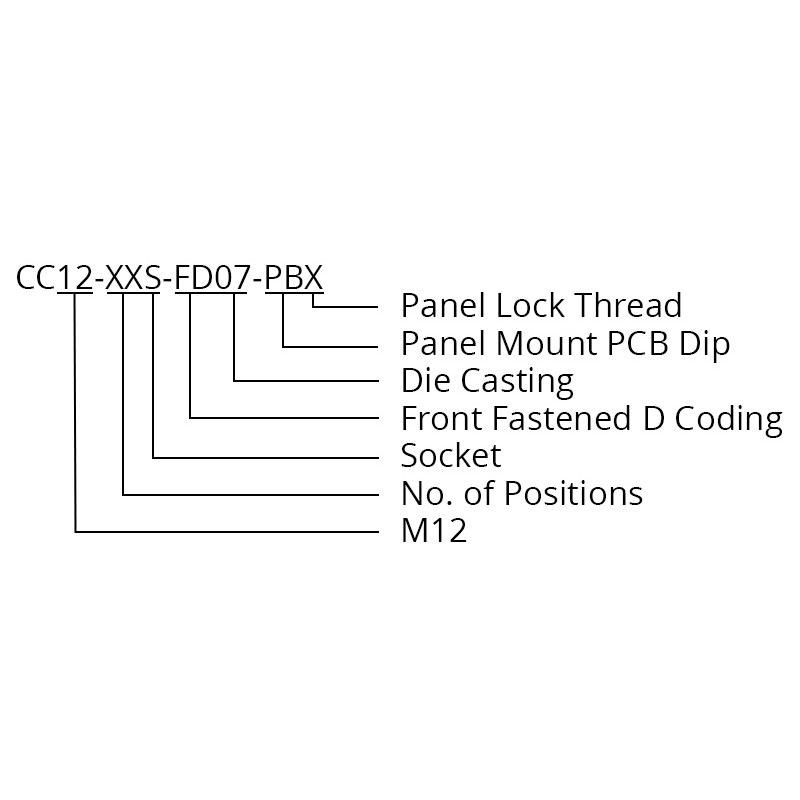

Product Code: CC12-XXS-FD07-PBX

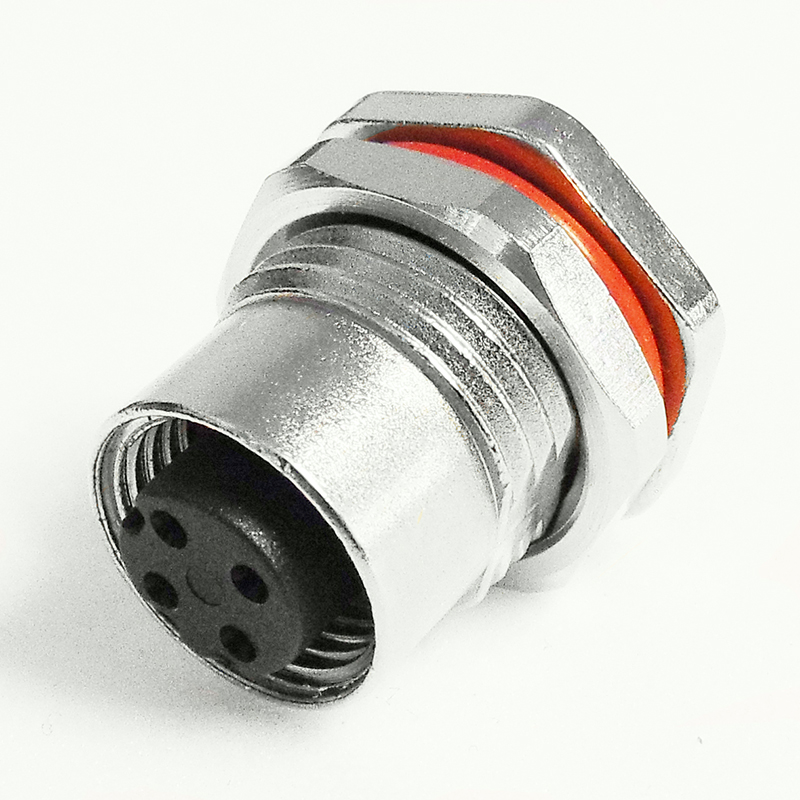

The CC12-XXS-FD07-PBX is an M12 circular connector which is available with 2 to 5 pin options in a D coding. The connector features straight pins to the rear for mounting directly to a PCB. These connectors can be used in harsh environments and have an IP67 waterproof rating. The M12 size lends itself as a solution for power or signal solution for factory automation, agricultural applications, robotics and transportation.

Features

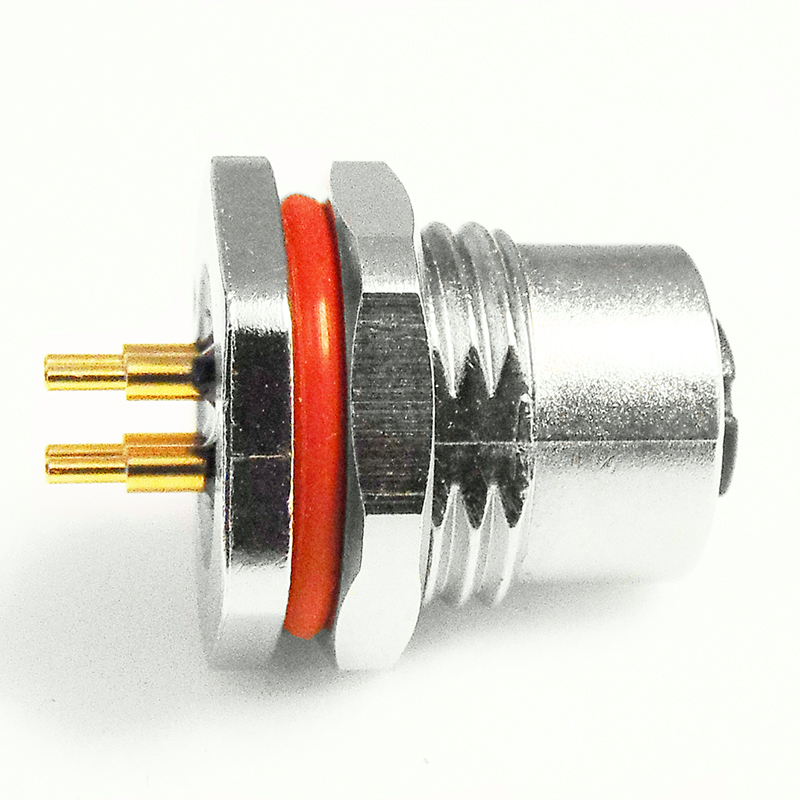

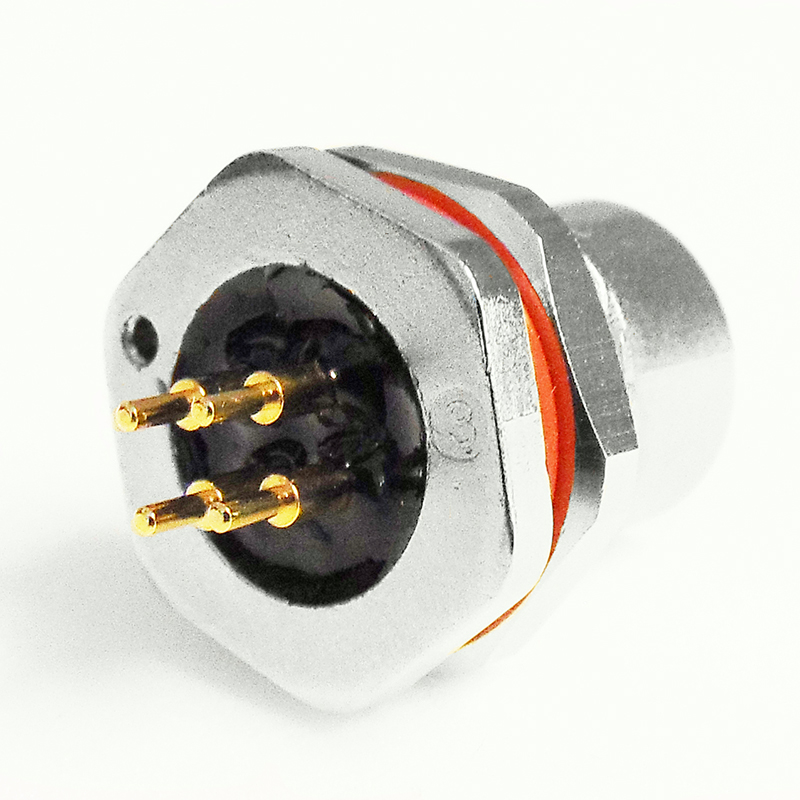

Straight pins to mount directly onto a PCB
Available in D coding

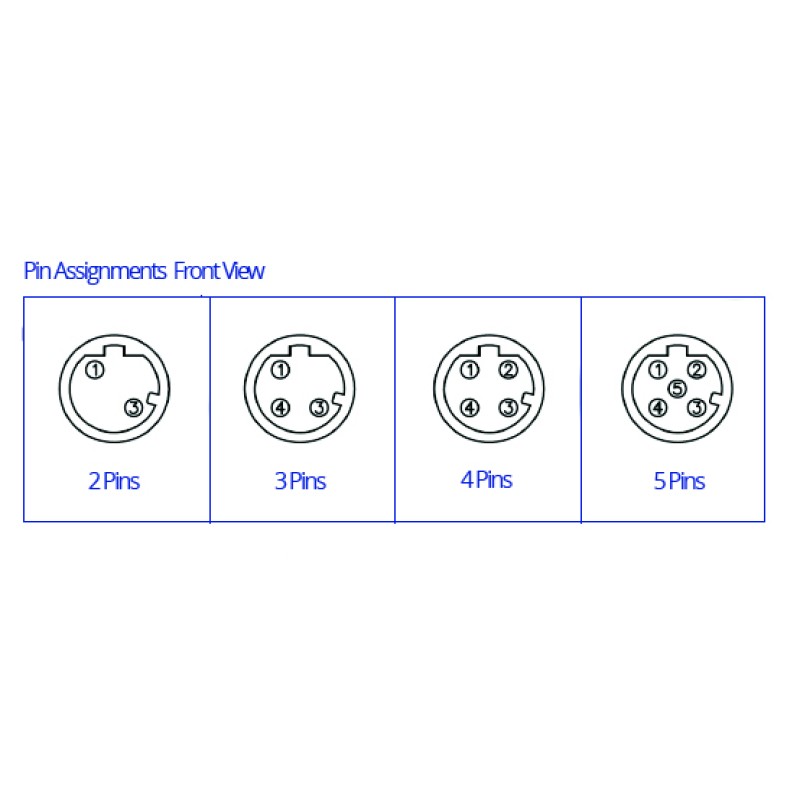

2 to 5 Pins
Offering speeds up to 10Gbps

Electrical

Withstanding Voltage	500V AC/Minute (2 to 5 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Current Rating	4A AC/DC
Voltage Rating	250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins)
