CC12-XXS-X04-AC – M12 Cable Mounted Socket (A Code)

Product Code: CC12-XXS-X04-AC

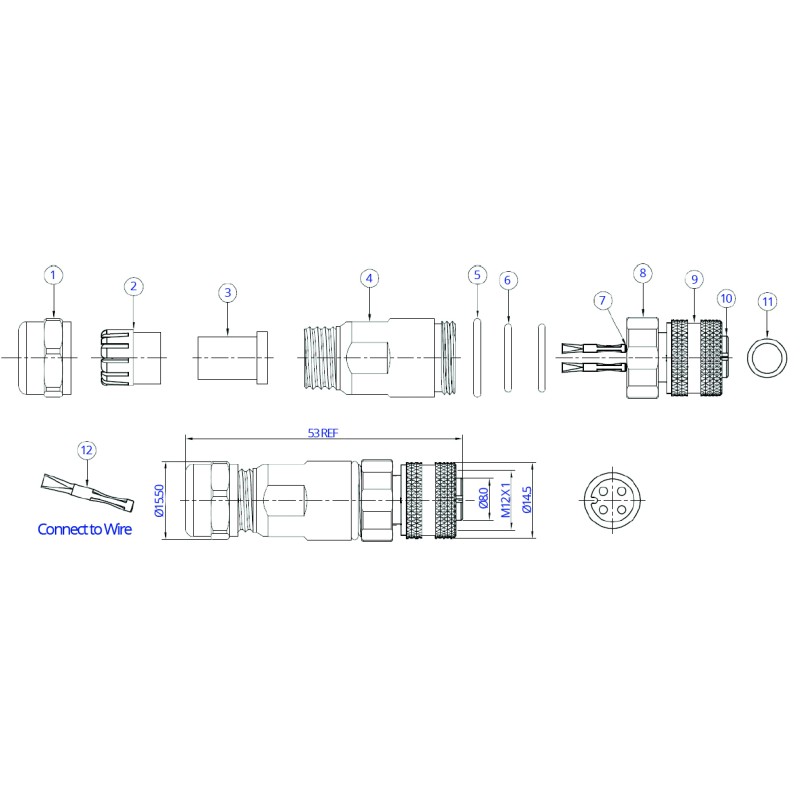

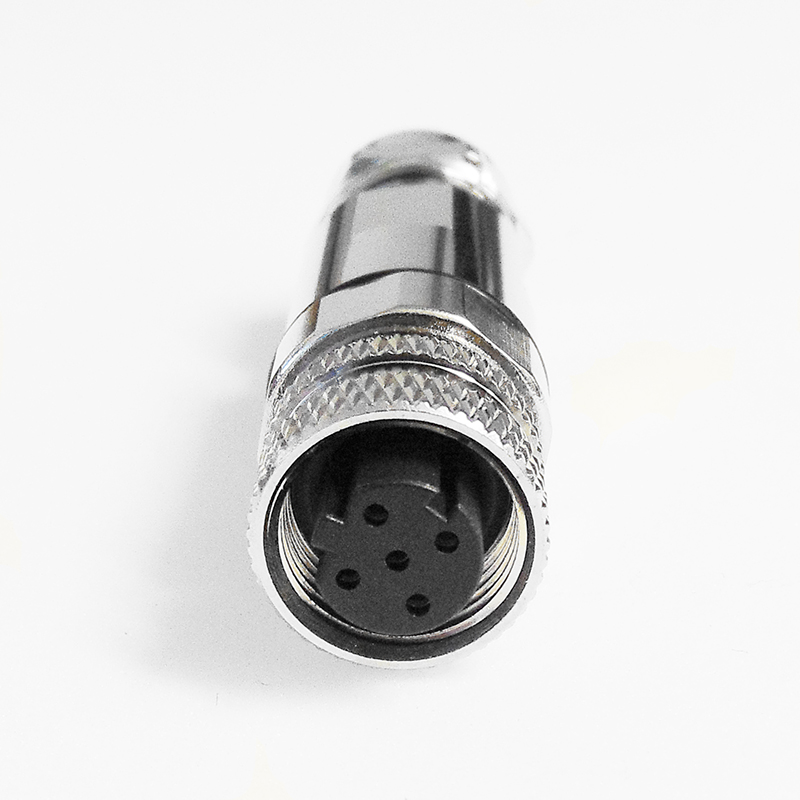

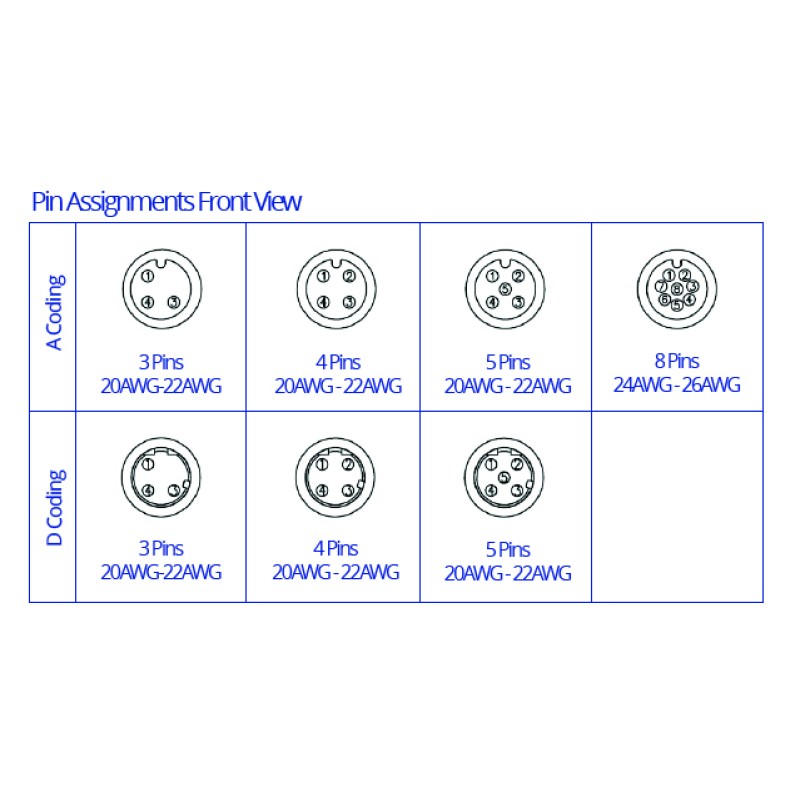

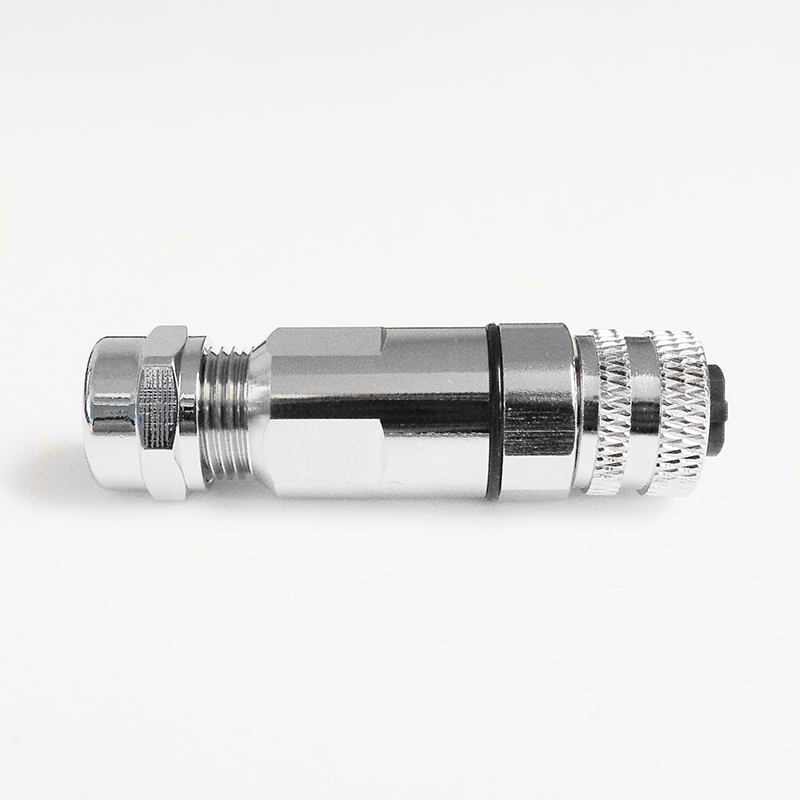

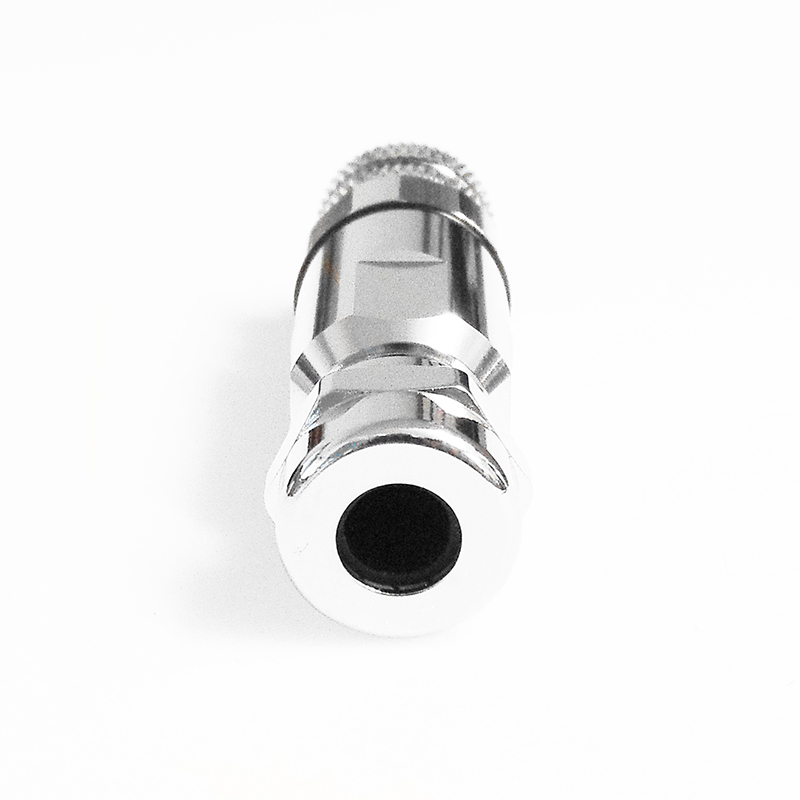

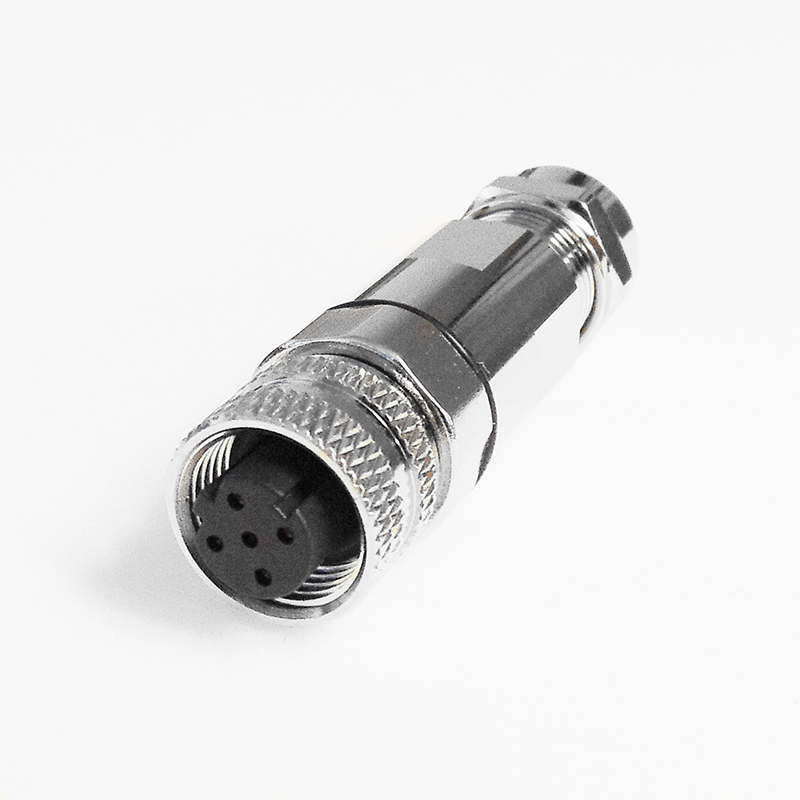

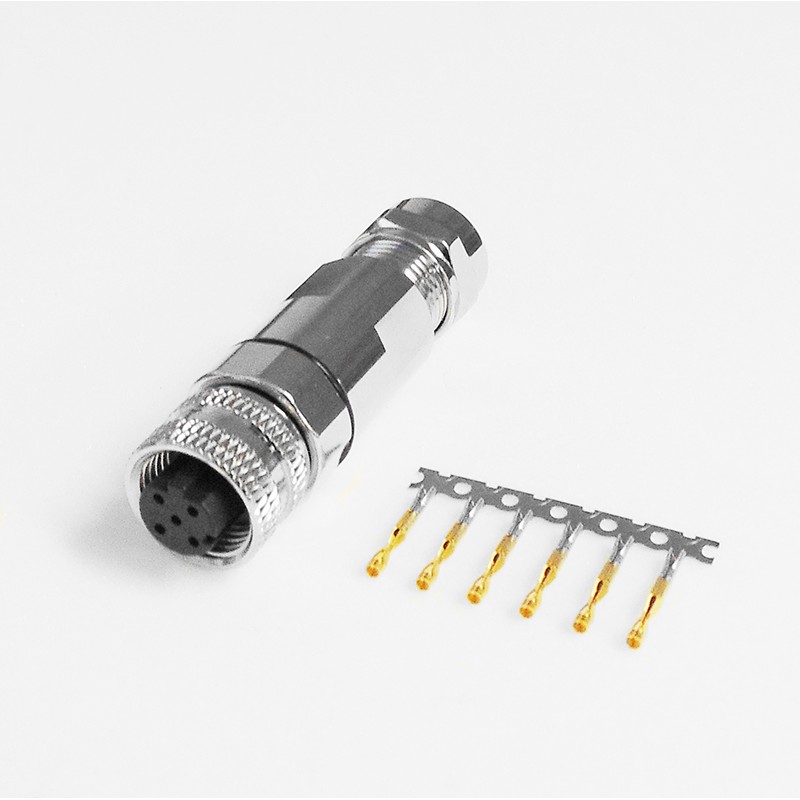

The CC12-XXS-X04-AC is a cable mounted M12 socket connector. It is available in A and D Coding and has a crimp termination style for connection onto a cable of between 4 and 6.5mm in diameter. The connector can be purchased as a loose connector or as part of a bespoke cable assembly. The connector is IP67 rated, when in locked position, so provides security against ingress of water or dust into your equipment.

Features

Cable mounting for cable between 4 and 6.5mm in diameter
Available in A coding
3 to 8 Pins

Electrical

Withstanding Voltage	500V AC/Minute
Current Rating	4A AC/DC (3 to 5 Pins), 2A AC/DC (8 Pins)
Voltage Rating	250V AC/DC (3 and 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (8 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ

Material

Clamp Ring	PC Grey
Lock	Brass Nickel Plated
Screw Nut	Brass Nickel Plated
Sealing Nut	Brass Nickel Plated
Contacts	Phosphor Bronze Gold Plated
O Ring	Silicone
Insulators	Nylon + Glass Fibre
Seal	EDPM Black

Environmental

Operating Temperature	-25 to 85oC
Waterproof Rating	IP67

General Information

Coding	A, D
Contact	3, 4, 5, 8
Shielded	No
Mounting Type	Cable
