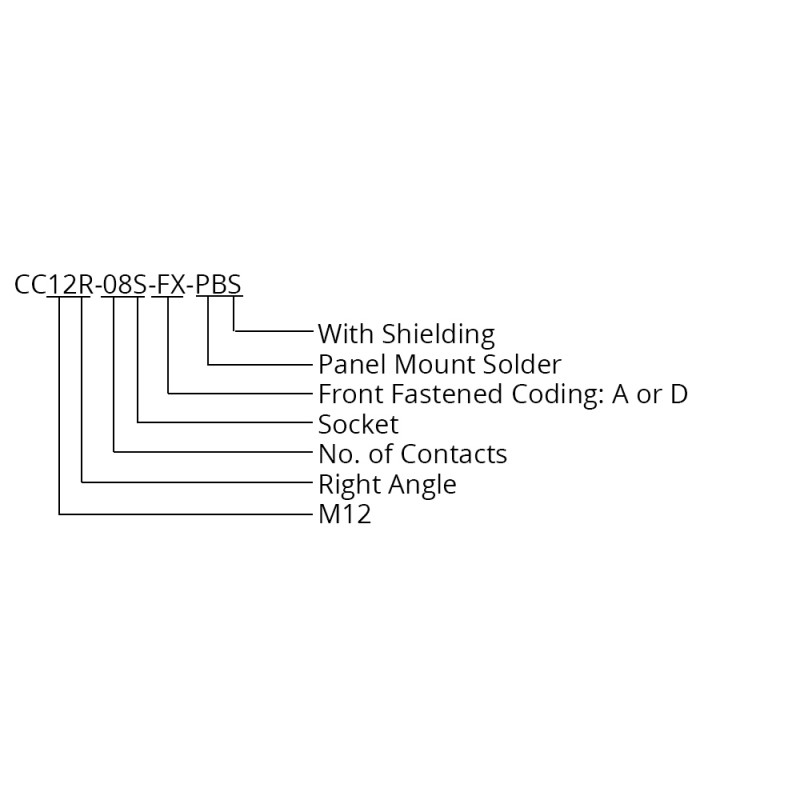

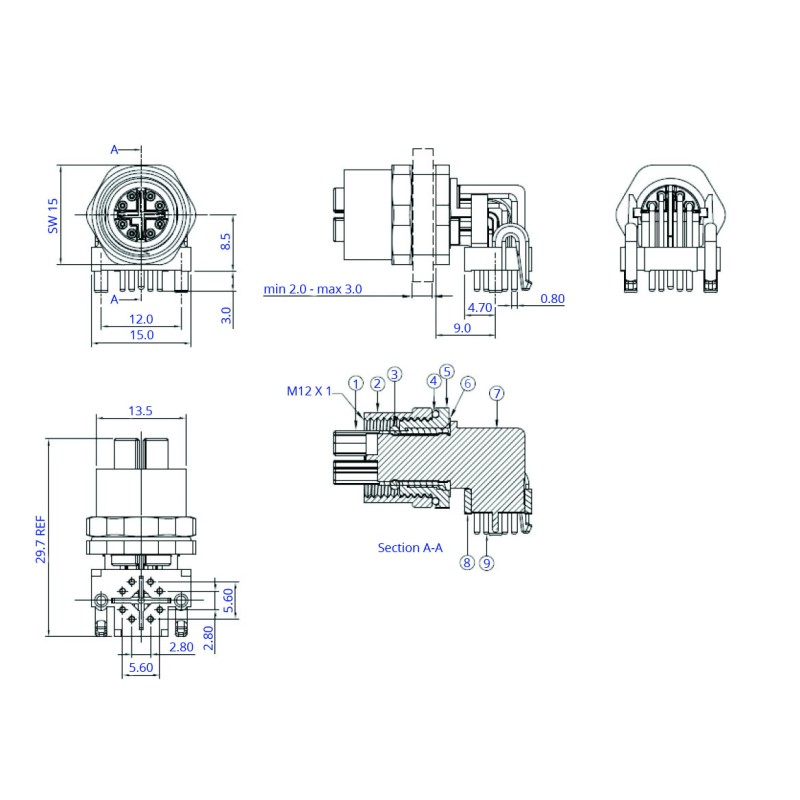

The CC12-08S-FX-PBS is a right angle M12 circular socket designed for mounting directly onto a PCB. It is available in an X coding with 8 pins with shielding. The connector has integrated PCB support points for holding into the board for precise location prior to soldering. The connectors have a front fastening nut for mounting onto an equipment panel of between 2 and 3mm in thickness.

Features

• Right angle to mount directly onto a PCB

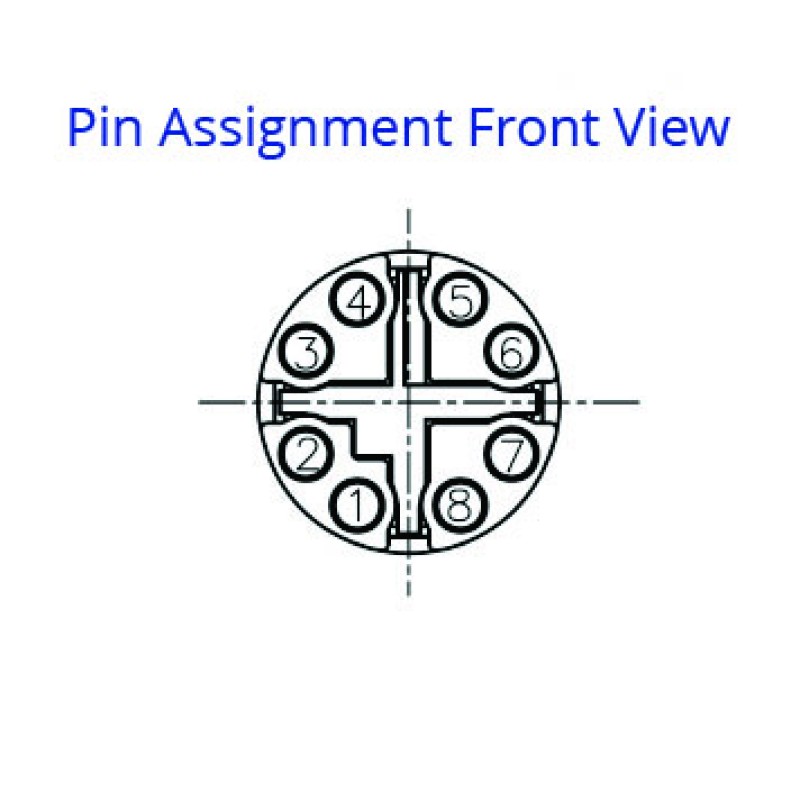

• Available in X coding
• 8 Pins
• For panel thicknesses of 2-3mm
• Offering speeds up to 10Gbps
