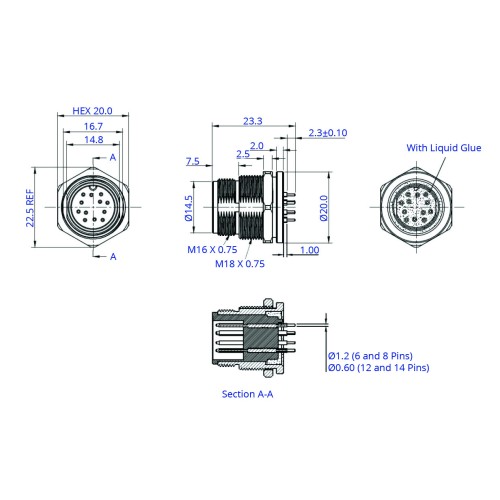

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC16-XXP-FA-PB – M16 Front Fastening Plug (A Code)

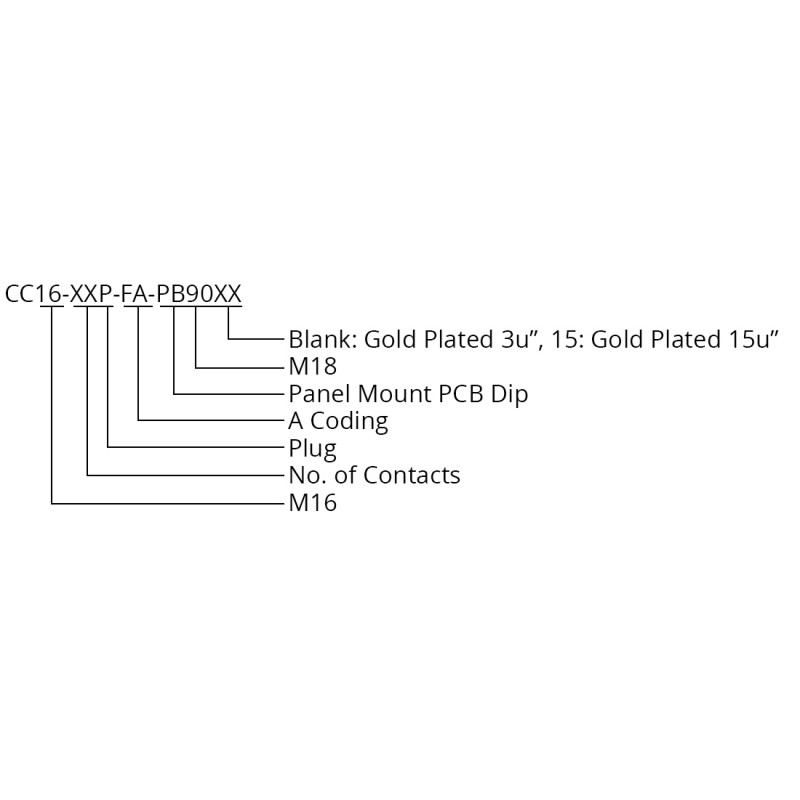

Product Code: CC16-XXP-FA-PB

The CC16-XXP-FA-PB9 is a M16 circular plug connector which is available with 6, 8, 12 and 14 pin options in an A. The connector features straight pins to the rear for mounting directly to a PCB. The M16 connectors offer a IP67 waterproof rating and is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

Features

  • Straight pins to mount directly onto a PCB
  • Available in A coding
  • 6, 8, 12 and 14 Pins
Withstanding Voltage 500V AC/Minute
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating 5A AC/DC (6 and 8 Pins), 3A AC/DC (12 and 14 Pins)
Voltage Rating 60V AC/DC
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Nut Brass Nickel Plated
Connector Body Brass Nickel Plated
Waterproof Rating IP67
Operating Temperature -40 to 100oC
Mounting Type PCB
Coding A

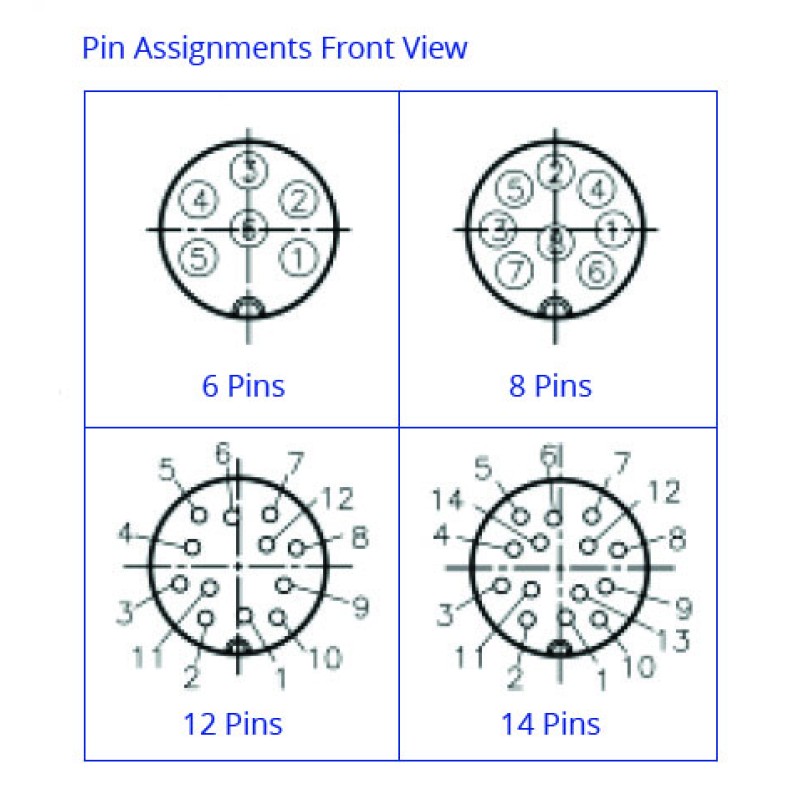

Contact 6, 8, 12, 14
