CC20-XXP-FA02-PM – M20 Front Fastening Plug (A Code)
CC20-XXP-FA02-PM – M20 Front Fastening Plug (A Code)

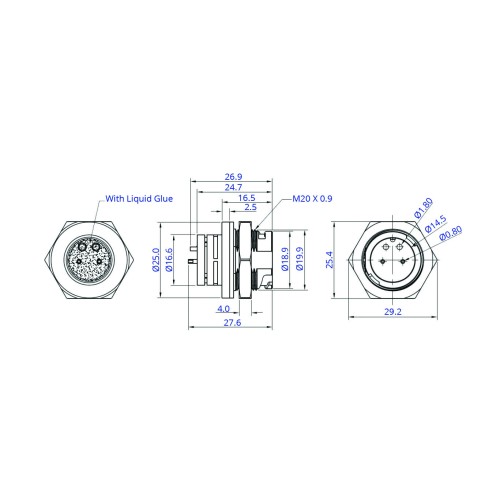

Download Engineering Drawing
Download Full Datasheet
Request 3D Model / Engineering Data
Request Quotation / Sample

CC20-XXP-FA02-PM – M20 Front Fastening Plug (A Code)

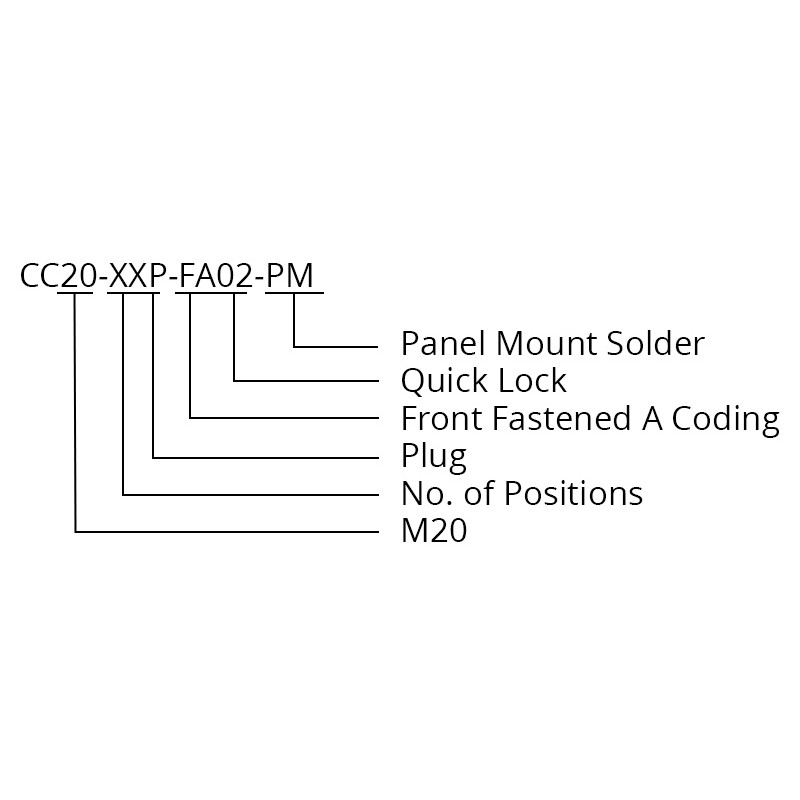

Product Code: CC20-XXP-FA02-PM

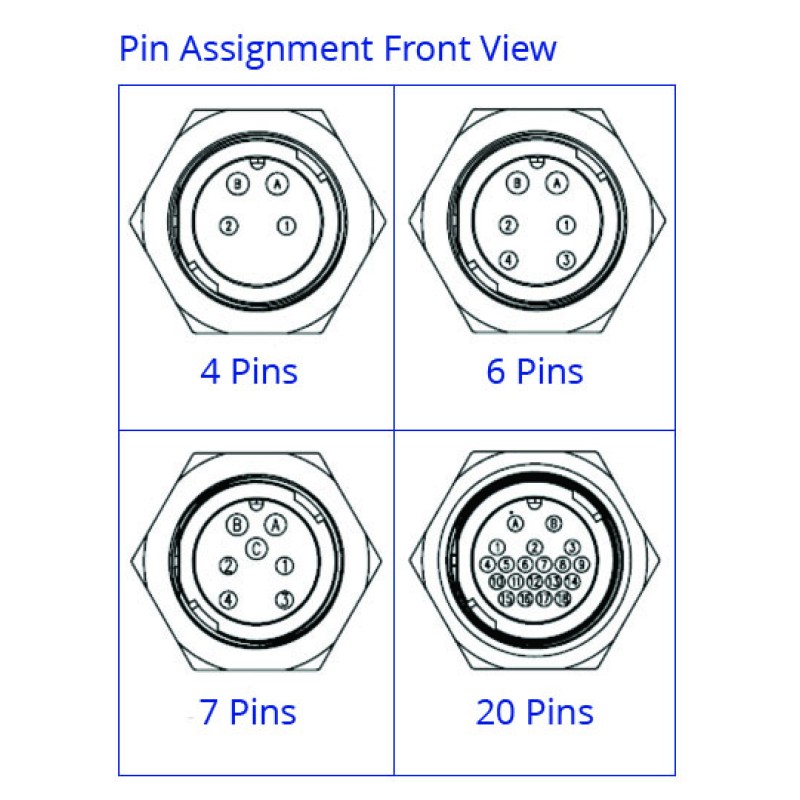

The CC20-XXP-FA02-PM is a M20 circular plug connector which is available with 4, 6, 7 and 20 pin options in an A coding. The connector is panel mounted with a front fastening and features solder buckets to the rear for mounting on cable. The connector features a quick lock system and has 2 or 3 high power pins and between 2 and 18 lower power pins for signals.

Features

  • Solder buckets for cable mounting
  • Available in A coding
  • Mixed high power and signal pins
Withstanding Voltage 1000V AC/Minute
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Current Rating B and C), 15A (Pins A, 15A (Pins A, B and C), 2A (Pins 1 to 18)
Voltage Rating 220V (Pins A, 220V (Pins A, B and C), B and C), 60V (Pins 1 to 18)
Insulators UL94V-0 Black
Contacts Brass Gold Plated
Connector Body Brass Nickel Plated
Nut Brass Nickel Plated
Operating Temperature -25 to 80oC
Mounting Type Cable
Coding A
Contact 4, 6, 7, 20
