High Power Male Contact DIN 41612

Home » Connectors » High Power Male Contact DIN 41612

Product Code: C-ST-047

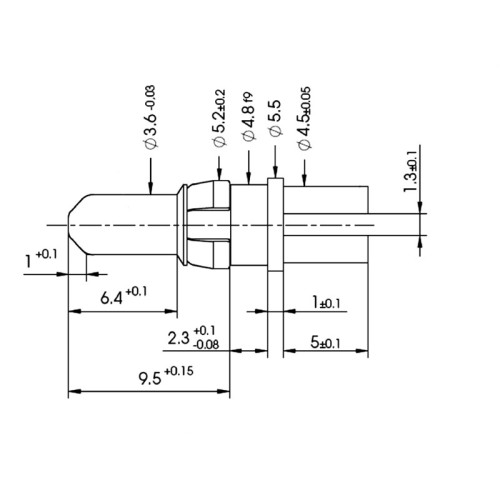

The C-ST-047 is a straight cable mounted 40A HighPower DIN 41612 contact.

Electrical

Contact Resistance	1mOhm
Current Rating	40A

Material

Body Finish	CU Alloy
Retaining Clip	CU Alloy

Environmental

Temperature Range

-55 to 155C

Mechanical

Mating Cycles

500

General Information

Processing

Crimp Termination
