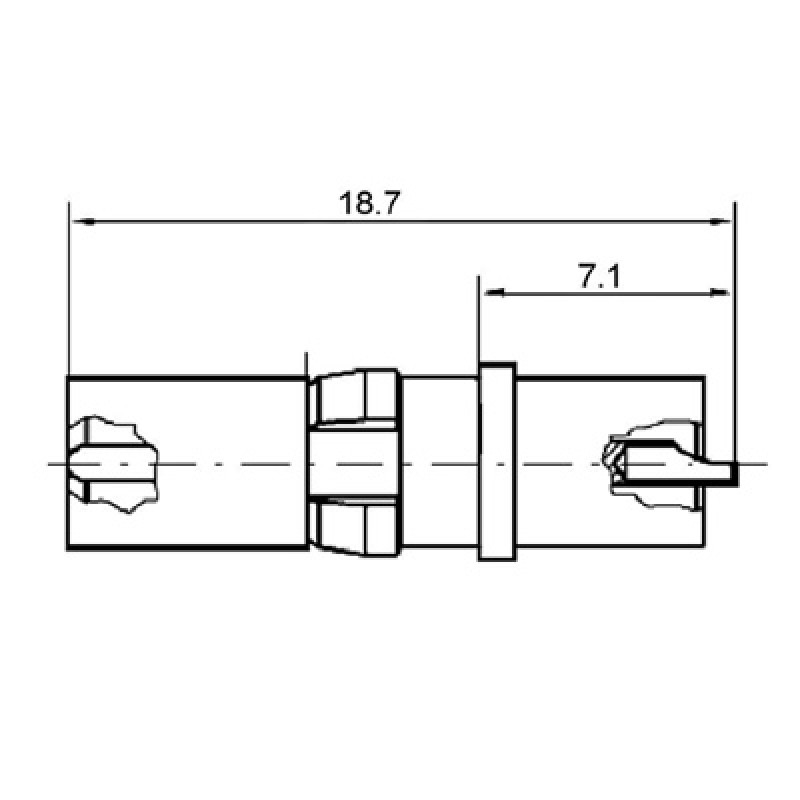

The 31D-0189-22 is a straight cable mounted high voltage contact, which is rated at 3kV. This is suitable for cables of AWG 20.
| Current Rating | 1.5A |
| Operating Voltage | ≤3kV |
| Contact Resistance | Outer Conductor ≤3MΩ |
| Proof Voltage | 4kV / 50Hz |
| Insulation Resistance | ≥2MΩ |
| Retaining Clip | PI |
| Insulators | PTFE |
| Plug | Cu Alloy with Au plating |
| Recepticle | Cu Alloy |
| Temperature Range | -55 to 125°C |
| Mating Force | ≤5N |
| Unmating Force | Ca 2.5N |
| Mating Cycles (Standard) | ≥500 |
| Processing | Hand Soldering |
